-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Notes: The MSA 2052 does not support single controller configurations. Single-controller support is provided only when a controller fails over to its partner controller.

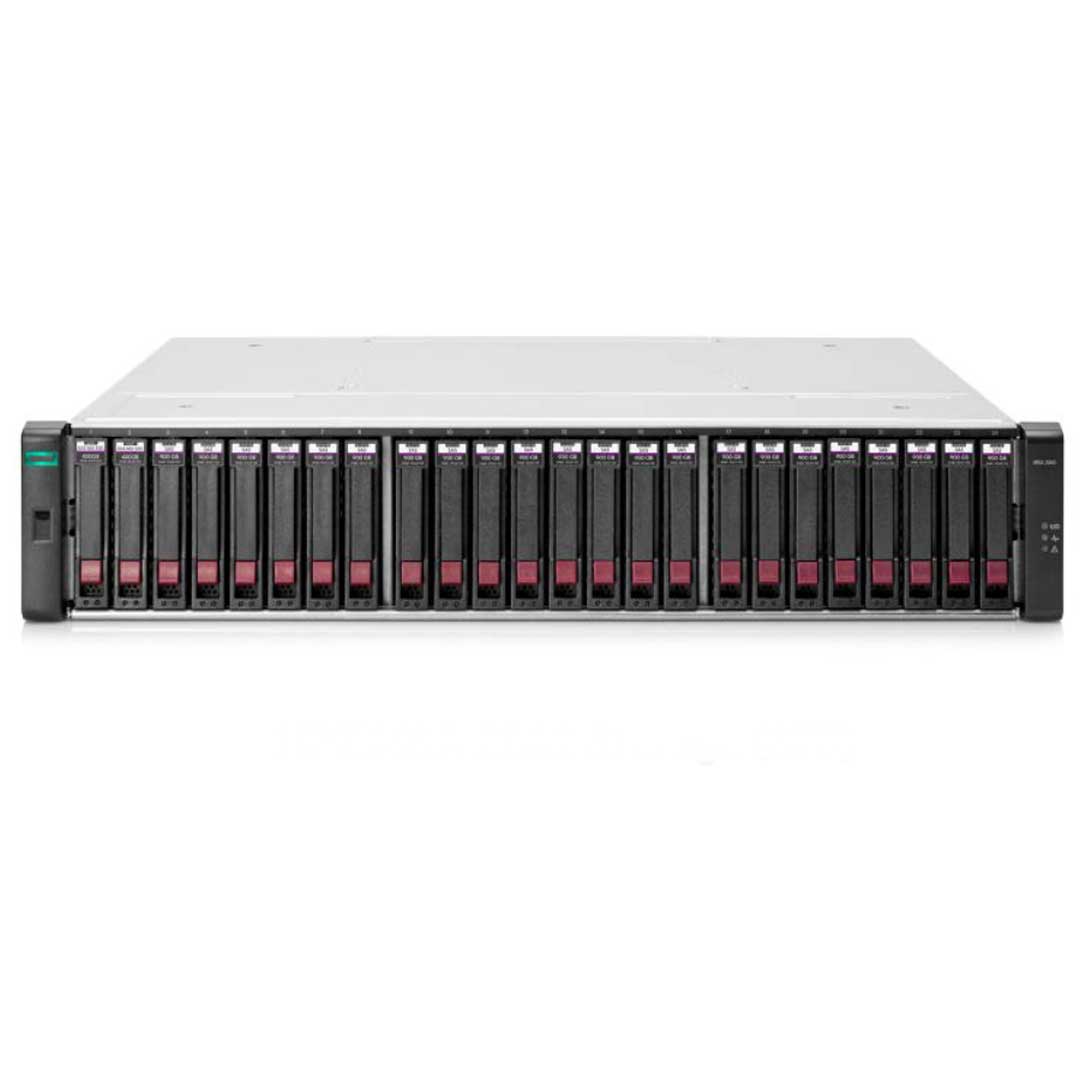

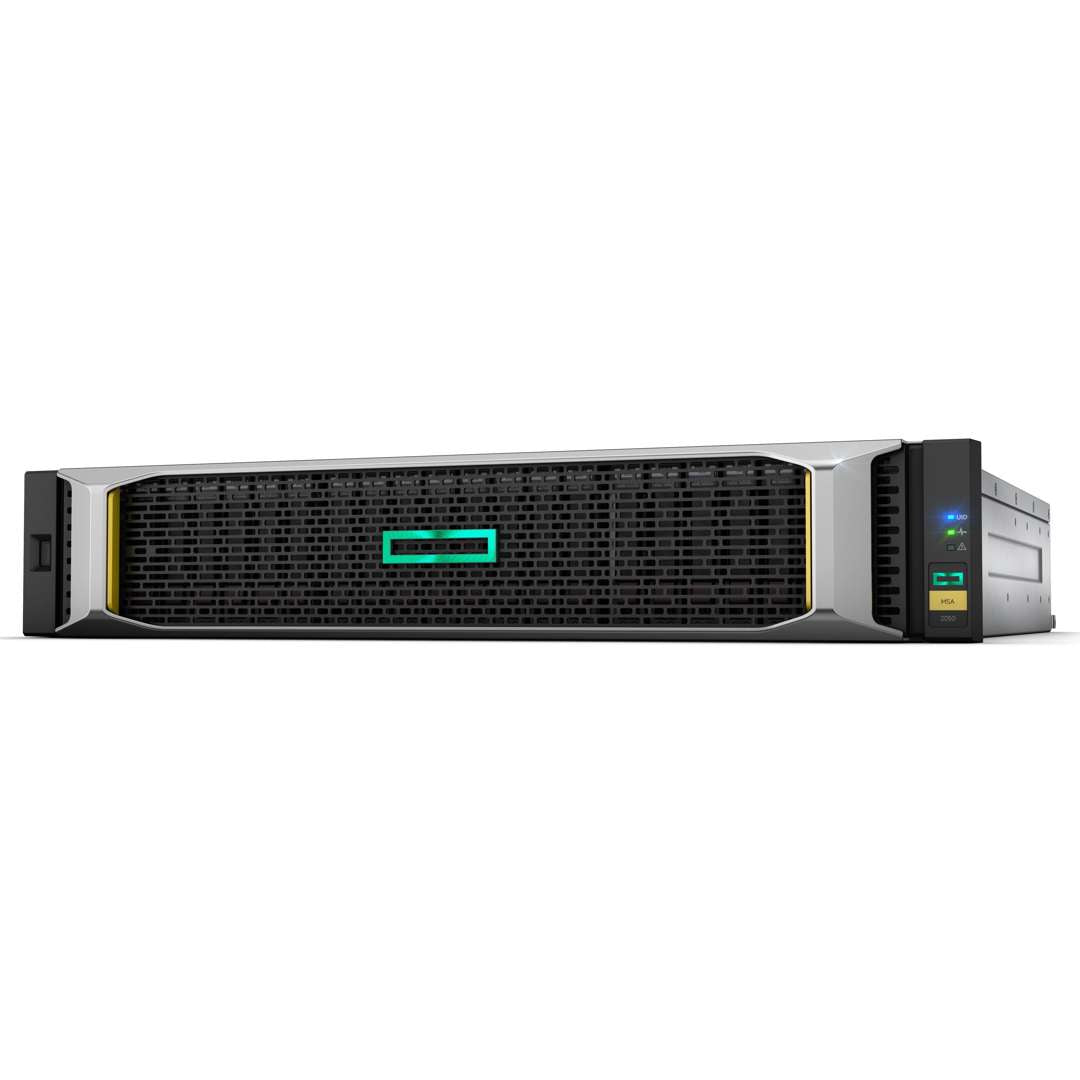

Looking for seriously simple and affordable flash storage? The hybrid flash HPE MSA 2052 SAN Storage system with the new Gen10 ProLiant Branding is designed for affordable application acceleration that is ideal for small and remote office deployments. But do not let the low cost fool you. The HPE MSA 2052 SAN Storage system gives you the combination of simplicity, flexibility to grow now and into the future, and advanced features you may not expect to find in an entry-priced array. Start with 1.6 TB of flash capacity included and scale as needed with any combination of solid state disks (SSD), high-performance enterprise, or lower-cost midline SAS-based drives.

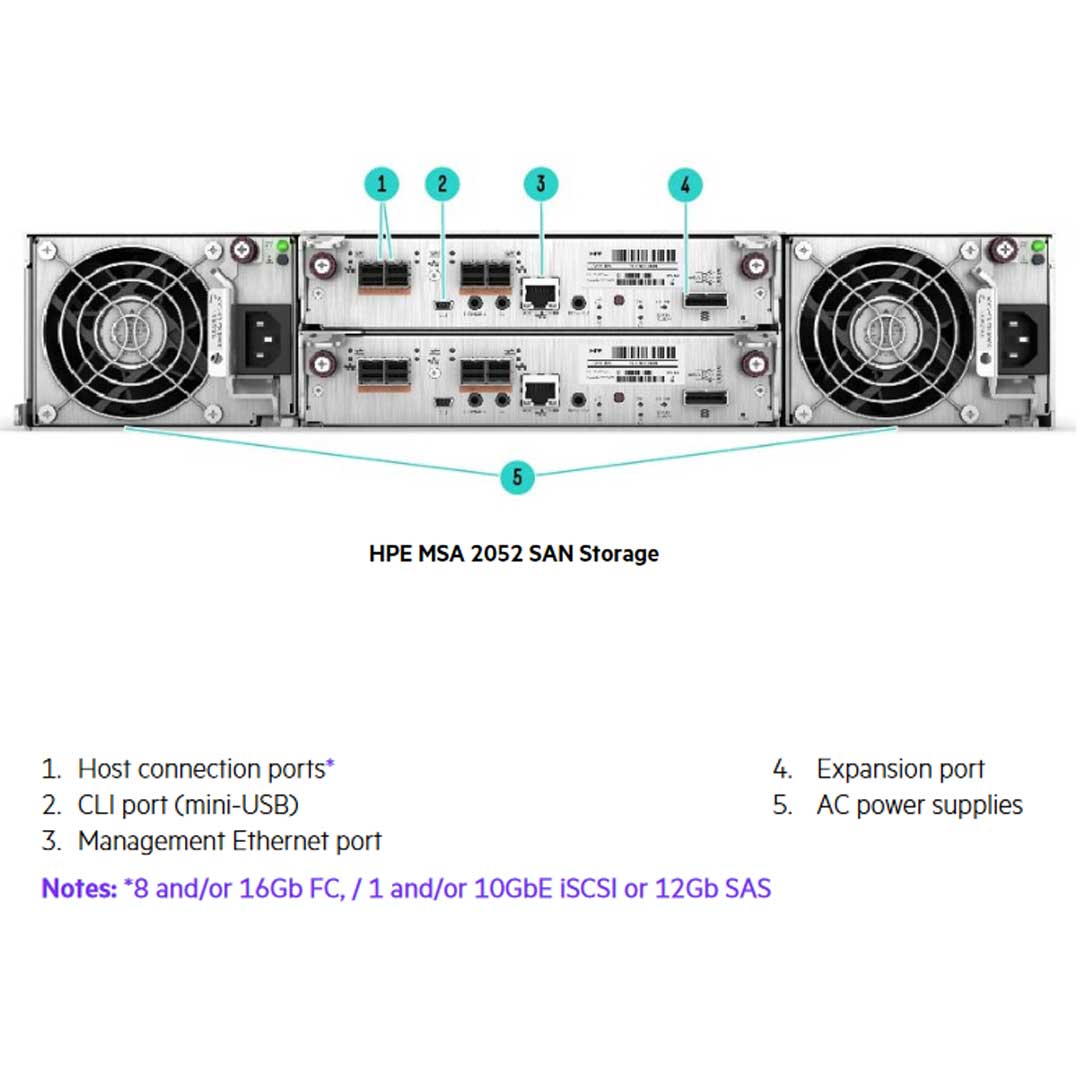

SAN controller
MSA 2052 SAN controller supports 8Gb FC, 16Gb FC, 1GbE iSCSI or 10GbE iSCSI host connectivity. .
SAS controller
MSA 2052 SAS controller supports 12Gb host connectivity.
HPE MSA Storage has been the industry-leading entry storage Fibre Channel platform for the past eight years, with nearly 500,000 storage systems sold worldwide. Delivering performance in excess of 200,000 IOPS, the hybrid flash MSA 2052 Storage system can save you up to 40% with an all-inclusive software suite and 1.6 TB of flash capacity included. It’s seriously simple and affordable flash storage to help you get the most performance for the lowest cost.
Affordable Application Acceleration
The HPE MSA 2052 SAN Storage performs in excess of 200,000 IOPS delivering
outstanding application acceleration for small to medium-sized businesses either
locally or remotely.
Delivers 2x more performance than the previous HPE MSA 2042 SAN Storage
generation [2].
Advanced Data Services With No Experience Required
The HPE MSA 2052 SAN Storage is easy to install, easy to use, easy to maintain, no
storage previous expertise required.
Automated tiering dynamically responds to workload changes, so you don’t have to.
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
| Array | |
|---|---|
| Access Type | Block |
| Form Factor | 2U, SFF or LFF |
| Number of controllers per array | 2 |
| Number of host ports per array | 8 |
| FC host connectivity | 8/16Gb |
| iSCSI host connectivity | 1Gb or 10GbI |
| SAS host connectivity | 6/12Gb |
| Cache, per array | |
| Max Read cache per array | 8TB |
| Data (read/write) cache + system memory per array | 16GB |
| Pool Capacity (with Large Pool Support) | 562 TB (512 TiB) |
| RAID Levels supported | Virtual mode RAID 0*, 1, 5, 6, 10 Notes: *Read Cache Only |
| Enclosures | |
| Expansion Drive Enclosures | 0-7 enclosures |
| LFF/SFF array/enclosure mixing | Supported |
| Maximum number of drives per array enclosure | 24 SFF/12 LFF |
| Maximum number of drives per drive enclosure | 24 SFF/12 LFF |
| Drive enclosure interface type | 6Gb SAS |
| Drives | |
| Maximum total HDDs per array | 192 SFF / 96 LFF |
| Maximum total SSDs per array | 192 SFF / 96 LFF |
| Max raw capacity per array enclosure | 76.8 TB SFF / 168TB LFF |
| Max raw capacity per drive enclosure | 76.8 TB SFF / 168TB LFF |
| Max raw capacity per array | 614.4TB SFF / 1344TB LFF |
| Integrated SSDs | 2x800GB Mixed Use SSDs |
| Drive Capacities | |
| SFF SSDs | 800GB, 960GB, 1.6TB, 1.92TB, 3.2TB |
| LFF SSDs | 800GB, 960GB, 1.92TB |
| SFF HDDs | 15K: 600GB, 900GB 10K: 600GB, 1.2TB, 1.8TB, 2.4TB |
| LFF HDDs | 7.2K: 4TB, 6TB, 8TB, 10TB, 12TB, 14TB |
| SEDs | Encryption not supported |
