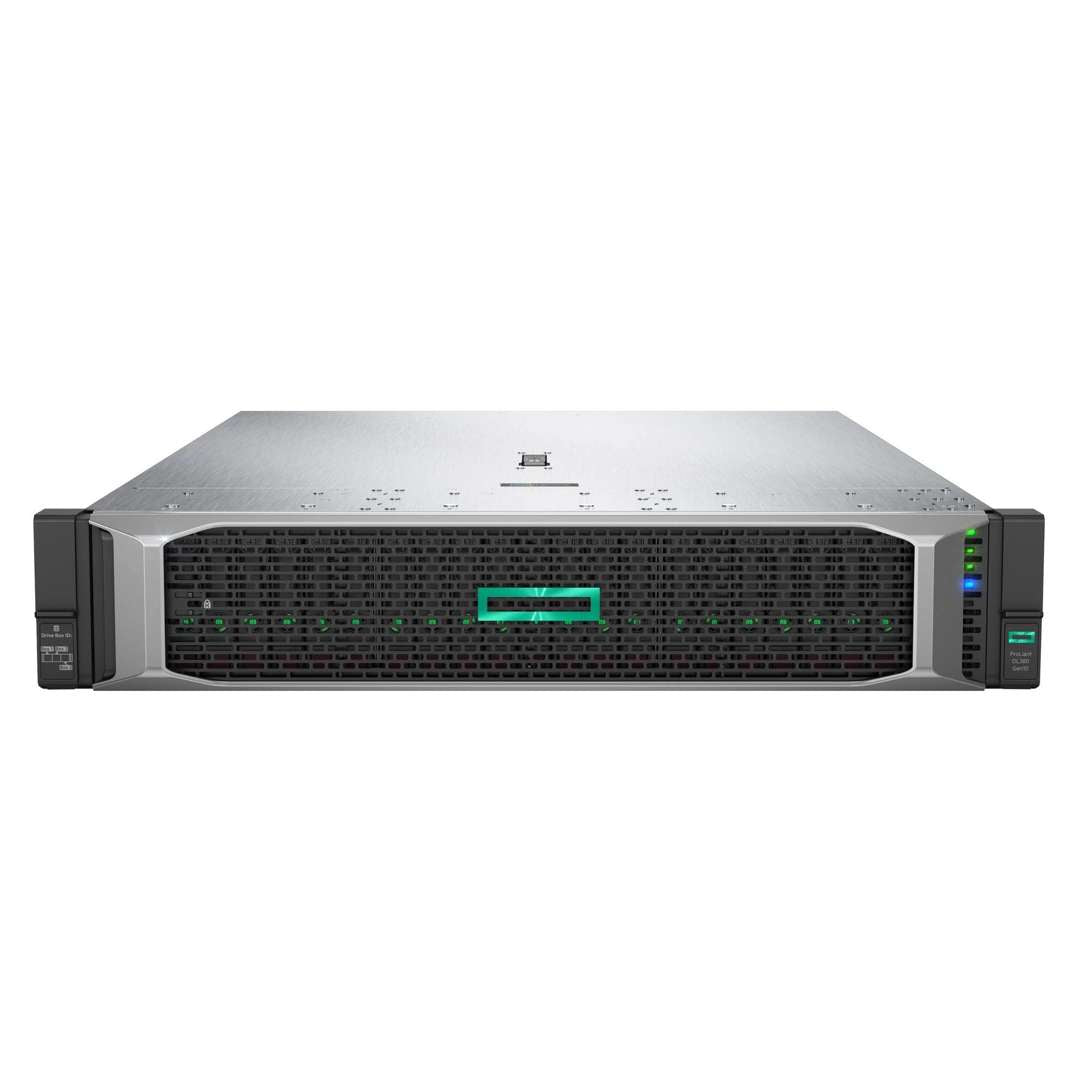

HP P02463-B21 ProLiant DL380 Gen10 server with one Intel Xeon Silver 4208 processor, 1x 16 GB dual rank memory, twelve large form factor drive bays, six performance fans, one 500W Platinum power supply, and a 1 Year NBD ECS Parts Replacement Warranty. Rail kit and cable management arm available upon request.
Included Parts List
| Type | Quantity | Title |
| Chassis | 1 | HPE ProLiant DL380 Gen10 12LFF Server Chassis |
| Processor | 1 | Intel Xeon-Silver 4208 (2.1GHz/8-core/85W) Processor |
| Memory | 1 | HPE 16GB (1x16GB) 2RX4 DDR4-2400 CAS 17-17-17 Registered Memory |
| PSU | 1 | HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply |
Specifications for P02463-B21
Processor Core Available 8, per processor
Processor Cache Installed L3
Memory Type HPE DDR4 SmartMemory
NVDIMM Type Not applicable
NVDIMM Rank Not applicable
NVDIMM Capacity HPE Persistent Memory featuring Intel® Optane™ DC persistent memory not supported on this processor model
Network Controller 1 Integrated 4 x Gigabit Ethernet
Remote Management Software HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, and HPE OneView Advanced (optional)
System Fan Features 6 performance single-rotor, fans included
Power Supply Type 1 HPE 500W Flex Slot Universal Hot Plug Low Halogen Power Supply Kit
Expansion Slots 3 PCIe 3.0, for detailed descriptions reference the QuickSpecs
Storage Controller 1 HPE Smart Array S100i
Processor Name Intel® Xeon® Scalable 4110
Processor Number 1
Processor Speed 2.1 GHz
Standard Memory 16 GB (1x 16GB) RDIMM
Hard Drive Number (included) None ship standard, 12 LFF drives supported
Optical Drive Type Optional via Universal Media Bay
Security Optional locking Bezel Kit, Intrusion Detection Kit, and HPE TPM 2.0
Form Factor 2U
Weight (imperial) 32.6 lb
Weight (metric) 14.76 kg
Product Dimensions (imperial) 17.54 x 28.75 x 3.44 in
Product Dimensions (metric) 44.55 x 73.03 x 8.74 cm
