-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Quick Specs
What's New for DL380 Gen10
- 4th Generation Intel® Xeon® Scalable Processor
- Up to 2 Processors with 60 cores at 350W TDP
- 16 DIMM DRR5 @ 4800MHz, Max Memory: 8 TB.
- Support for PCIe Gen5, resulting in improved bandwidth, advanced data transfer rates, and higher network speeds from the PCIe Gen5 serial expansion bus.
- HPE Integrated Lights-Out 6 (iLO 6) server management software that enables you to securely configure, monitor, and update your HPE ProLiant Gen11 servers seamlessly, from anywhere.
- BOOT RAID M.2 boot options.
- GPU Support, 8 single wide (SW) or 3 double wide (DW) GPUs
Ideal for:
- Cloud Servers
- Corporate IT
- Database
- Data Analytics
- Point-of-Sale (POS)
- Retail Servers
- Virtualization

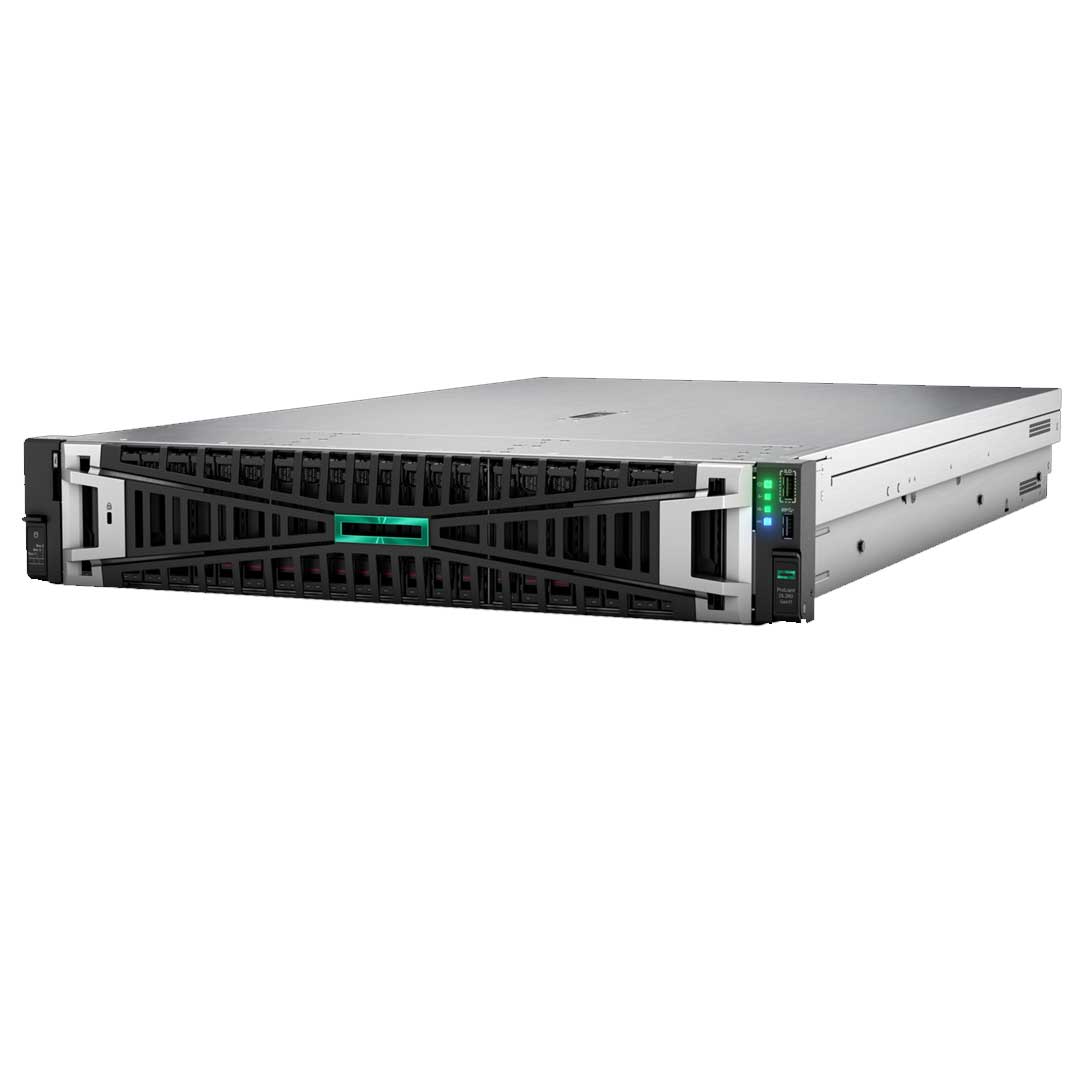

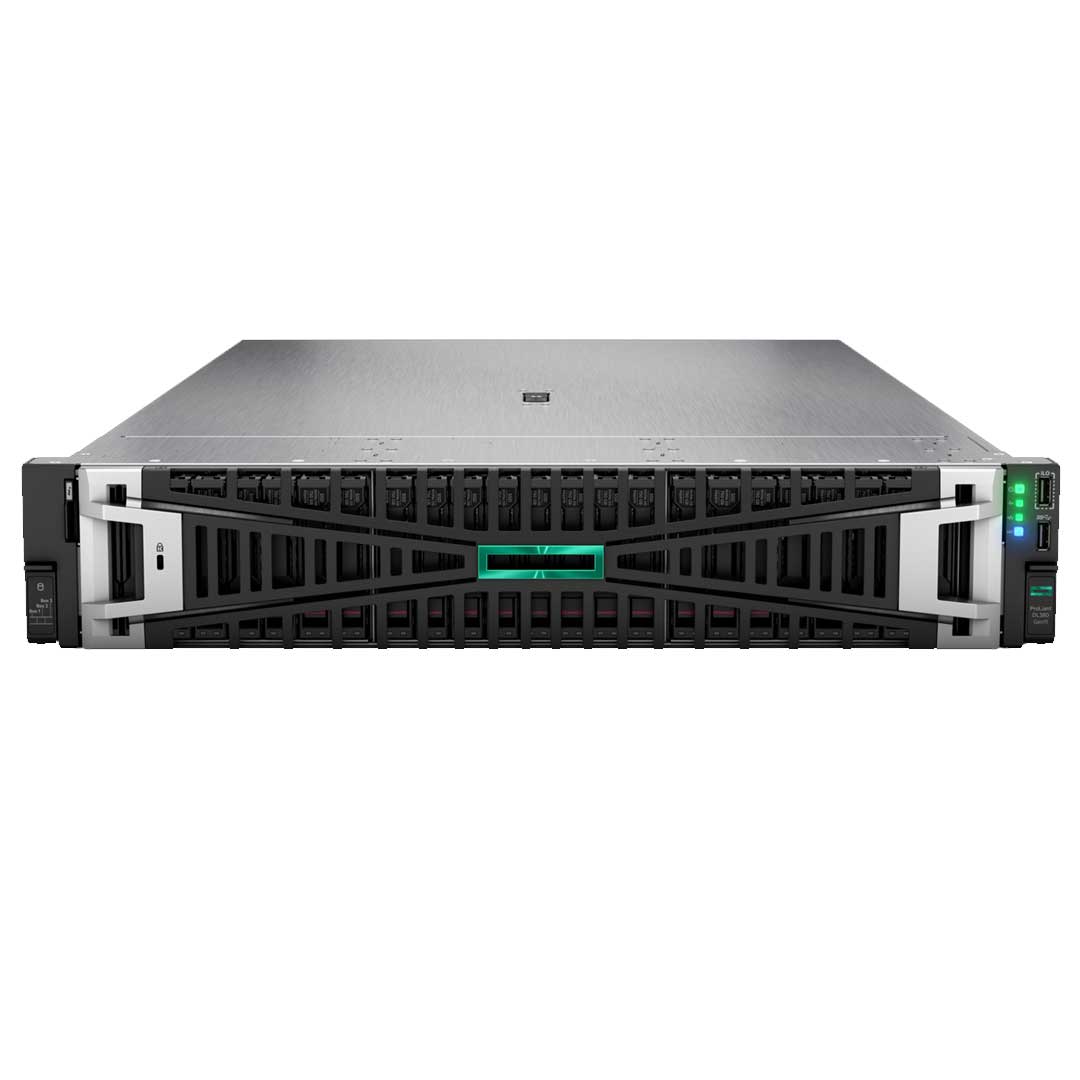

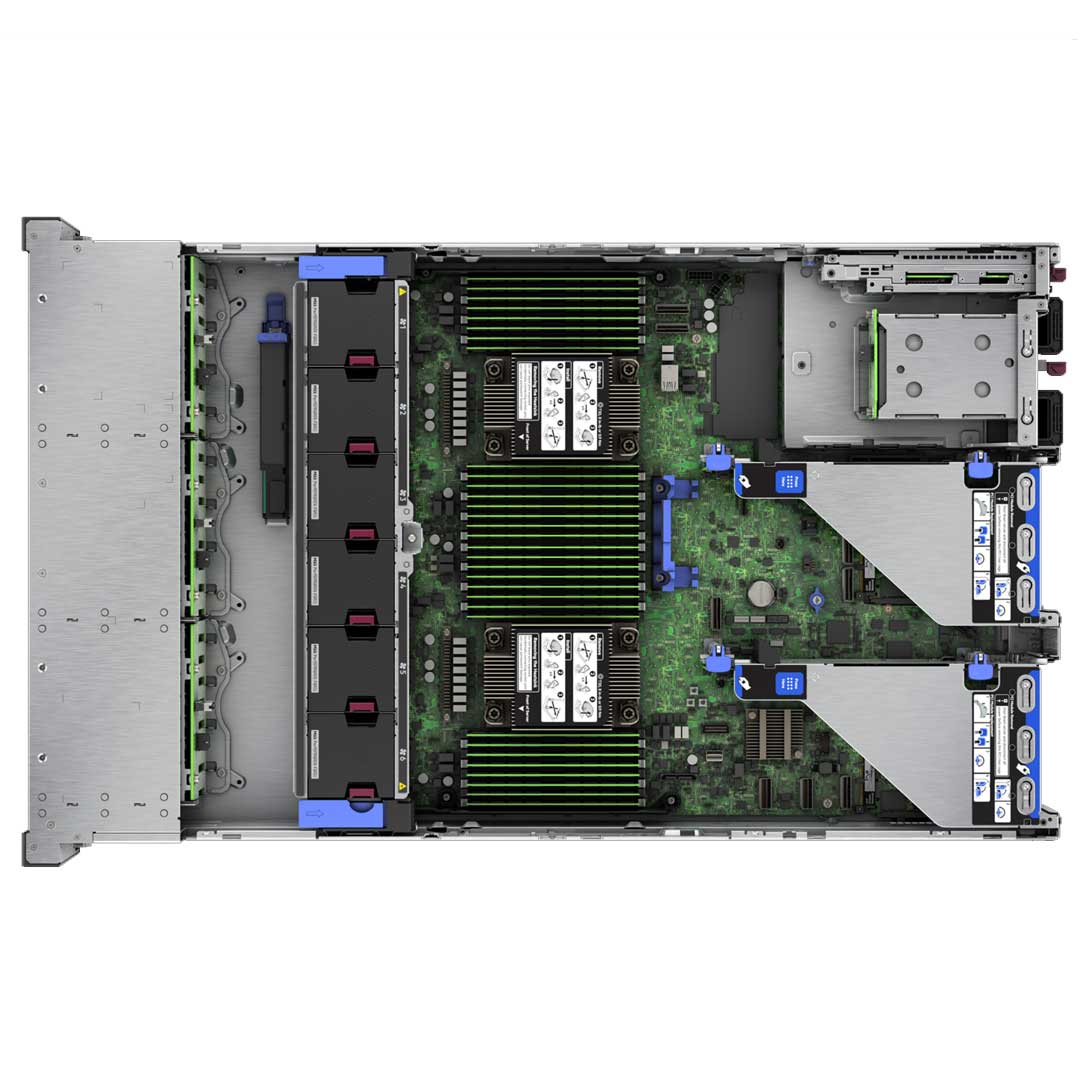

The HPE ProLiant DL380 Gen11 server is a scalable 2U 2P solution that delivers exceptional compute performance expandability and scalability for diverse workloads and environments at 1P economics. Powered by 4th Gen Intel® Xeon® Scalable Processors with up to 60 cores, increased memory bandwidth, and high-speed PCIe Gen5 I/O, the HPE ProLiant DL380 Gen11 server is a perfect dual-socket, 2U/2P, scalable solution.
The silicon root of trust anchors the server firmware to an HPE-exclusive ASIC, creating a fingerprint for the Intel® Xeon® Scalable Processor that must be matched exactly before the server will boot.
Looking to Customize?
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
Base Standard Capabilities
| Technical specifications | HPE ProLiant DL380 Gen11 |
|---|---|
| Processor type ® | Intel |
| Processor family | 4th Generation Intel® Xeon® Scalable Processors |
| Processor number | 1 or 2 |
| Processor core available | 16 to 60 core, depending on processor |
| Processor cache | 22.5 MB to 112.5 MB L3, depending on processor |
| Processor speed | 3.1 GHz maximum, depending on processor |
| Power supply | type 800W, 1000W, or 1600W Dual hot-plug redundant 1+1 HPE Flexible Slot Power Supplies, depending on model |

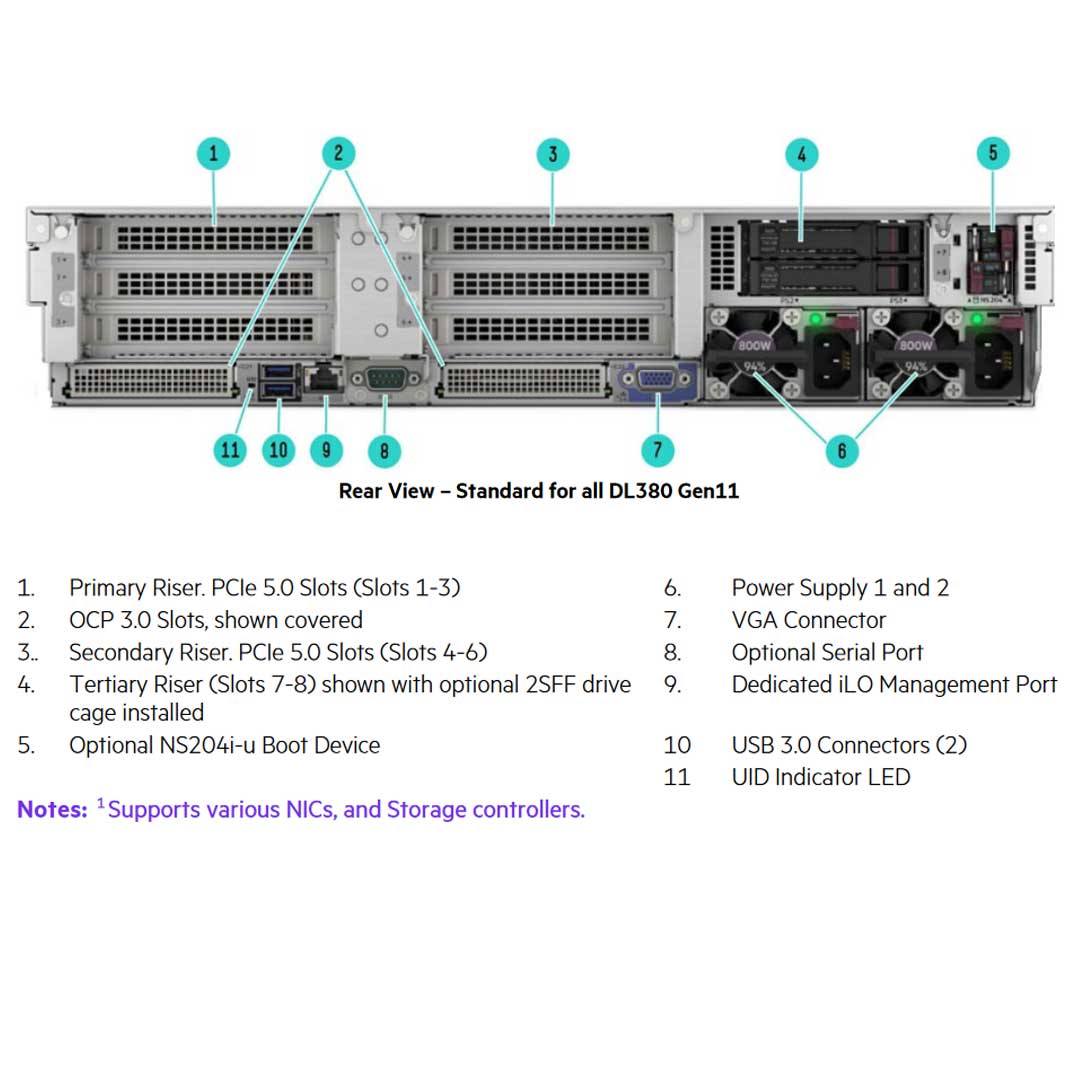

| Expansion slots | Up to 8 PCIe Gen5, and 2 OCP 3.0, for detailed descriptions reference the QuickSpecs |
| Maximum memory | 8 TB with 256 GB DDR5 |
| Memory slots | 32 |
| Memory type | HPE DDR5 Smart Memory |
| Memory protection features | RAS – Advanced ECC, online spare, mirroring, combined channel (lockstep) functionality, and HPE Fast Fault Tolerant Memory (ADDDC) Intel Optane Persistent Memory |
| Optical drive type | Optional DVD-ROM Optional via Universal Media Bay External support only |
| System fan features | Hot-plug redundant fans, Standard Fan Kit or High Performance Fan Kit, depending on model |
| Network controller | 1 Gb, 10 Gb, 10/25 Gb, 100 Gb, or 200 Gb, in PCIe adapter or OCP 3.0 form factor, for detailed descriptions reference the QuickSpecs |
| Storage controller | HPE SR932i-p and/or HPE MR216i-o and/or HPE MR416i-o and/or HPE MR216i-p and/or HPE MR416i-p and/or HPE MR408i-o, for detailed descriptions reference the QuickSpecs |
| DIMM capacity | 16 GB to 256 GB |
| Infrastructure management | HPE iLO Standard with intelligent provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, HPE OneView Advanced (optional, requires licenses), and HPE GreenLake COM |

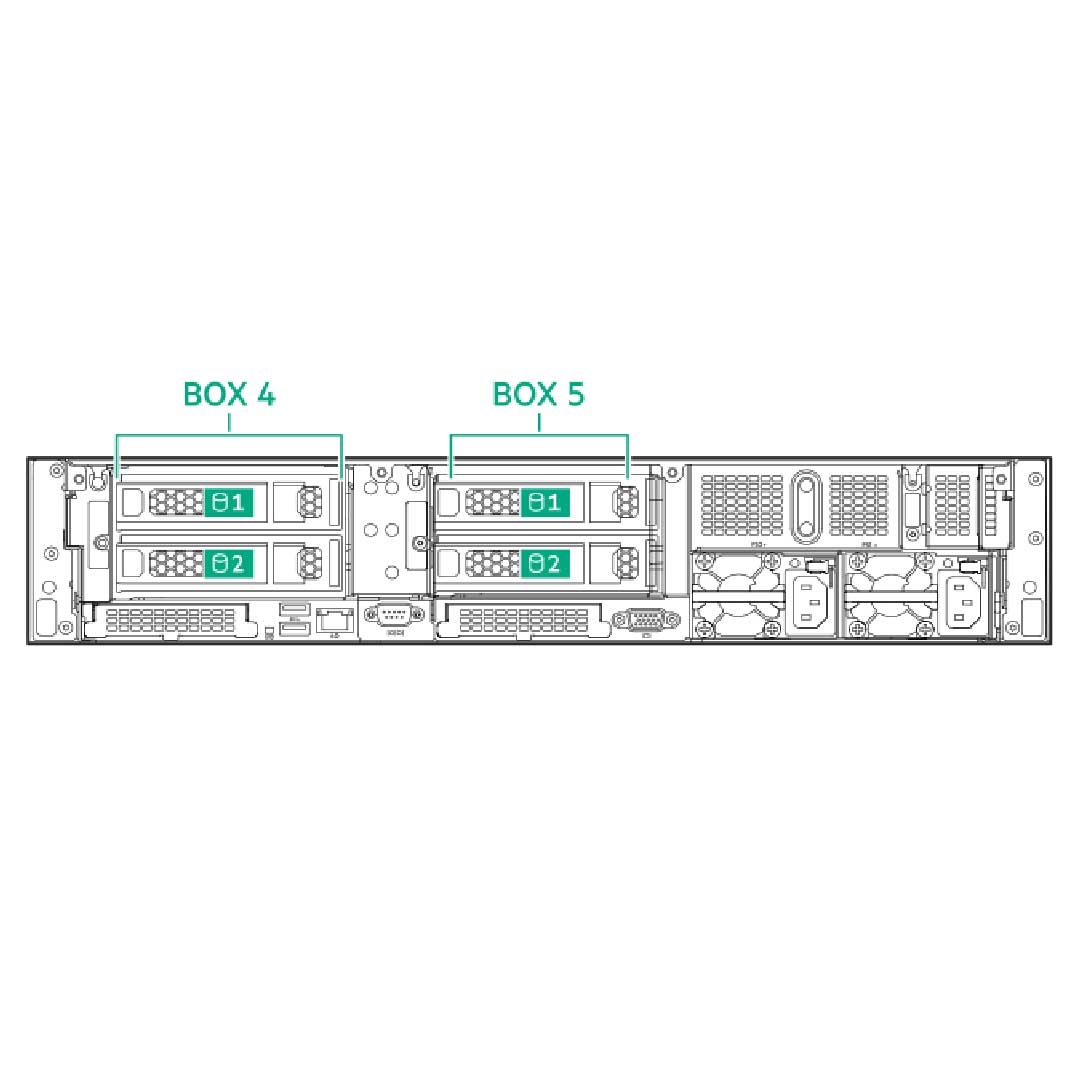

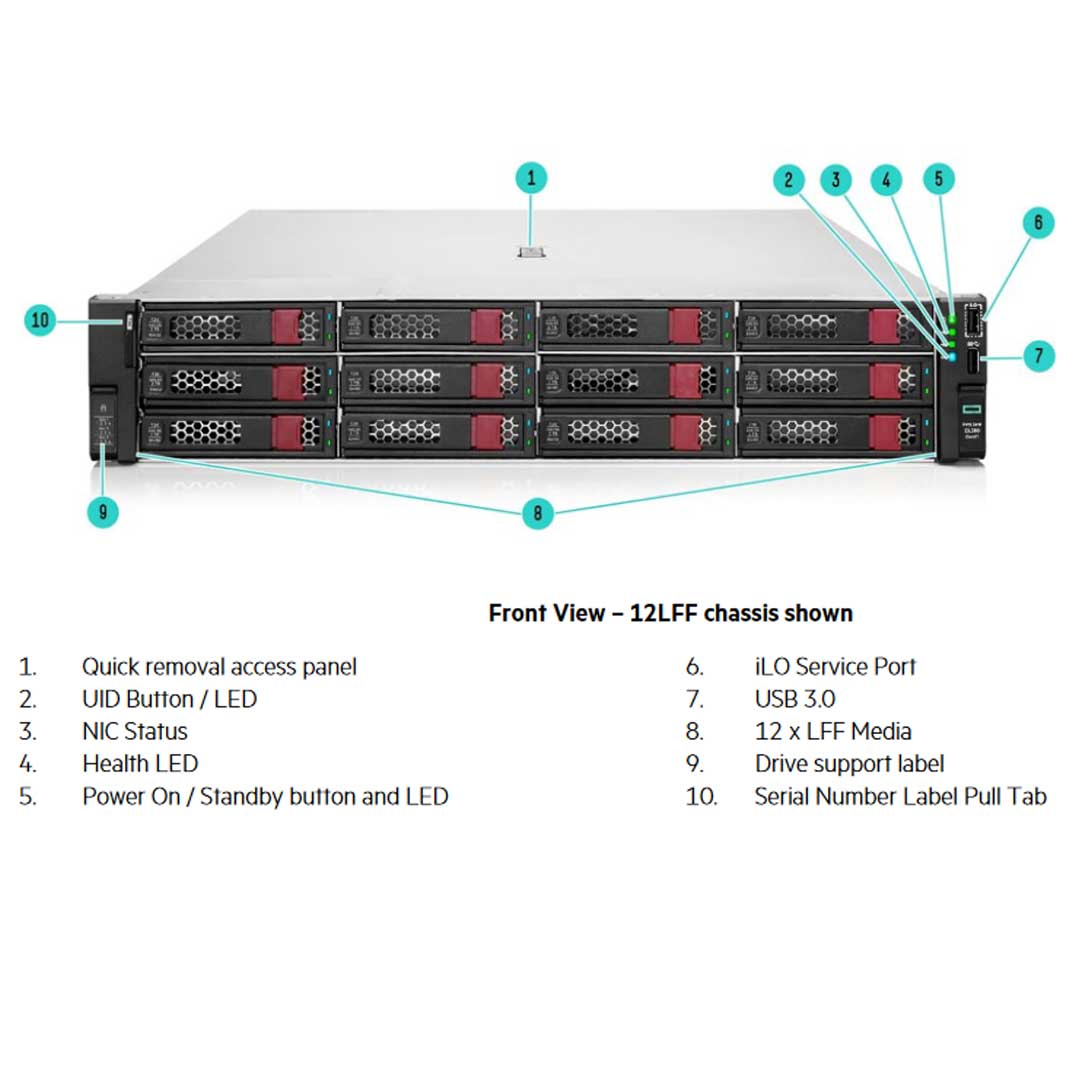

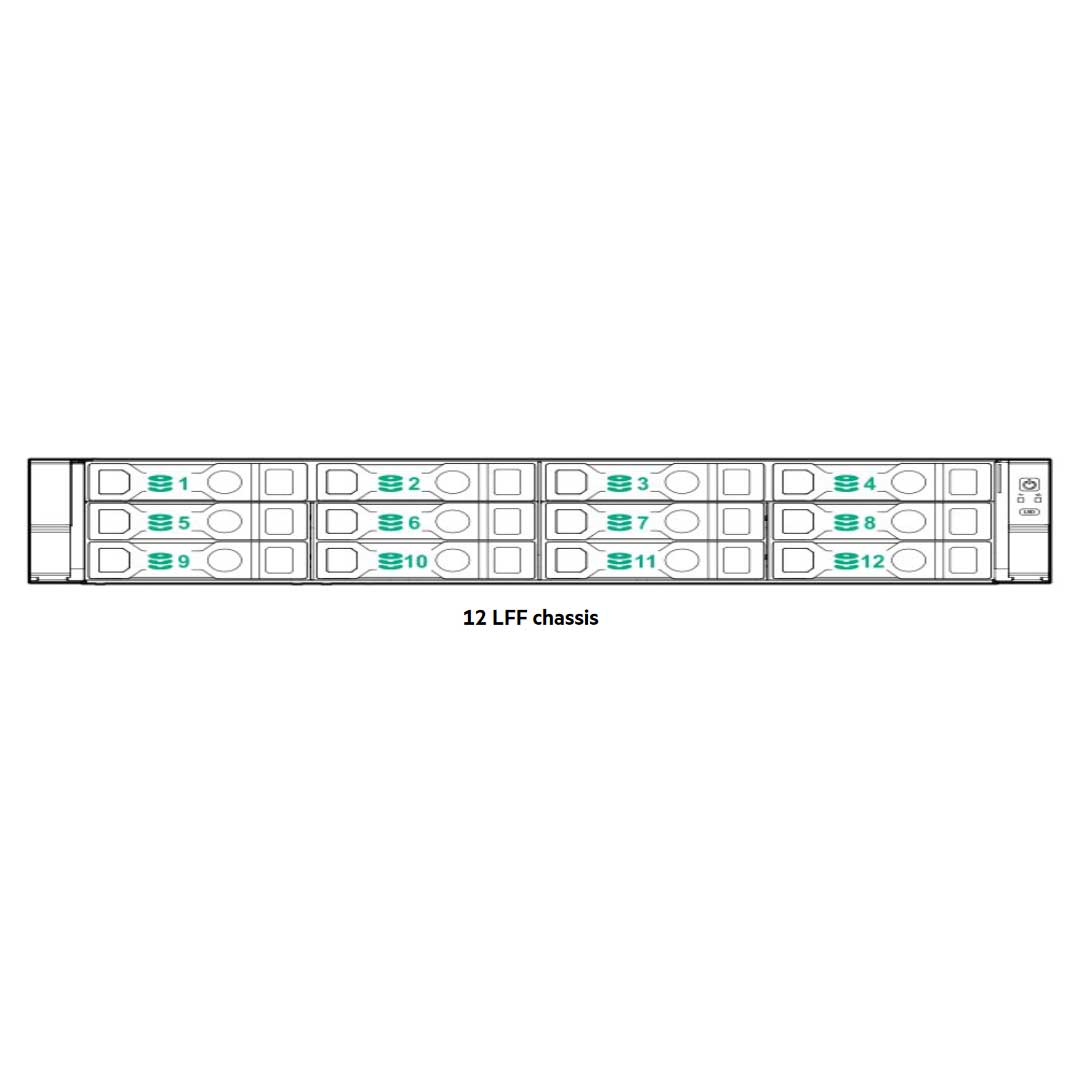

| Drive supported | 8 or 12 LFF SAS/SATA/SSD 8, 16, or 24 SFF SAS/SATA/SSD, depending on configuration. 6 SFF rear drive optional or or 2 SFF rear-drive optional, 20 SFF NVMe optional, NVMe support via Express Bay will limit maximum drive capacity, depending on model. |
