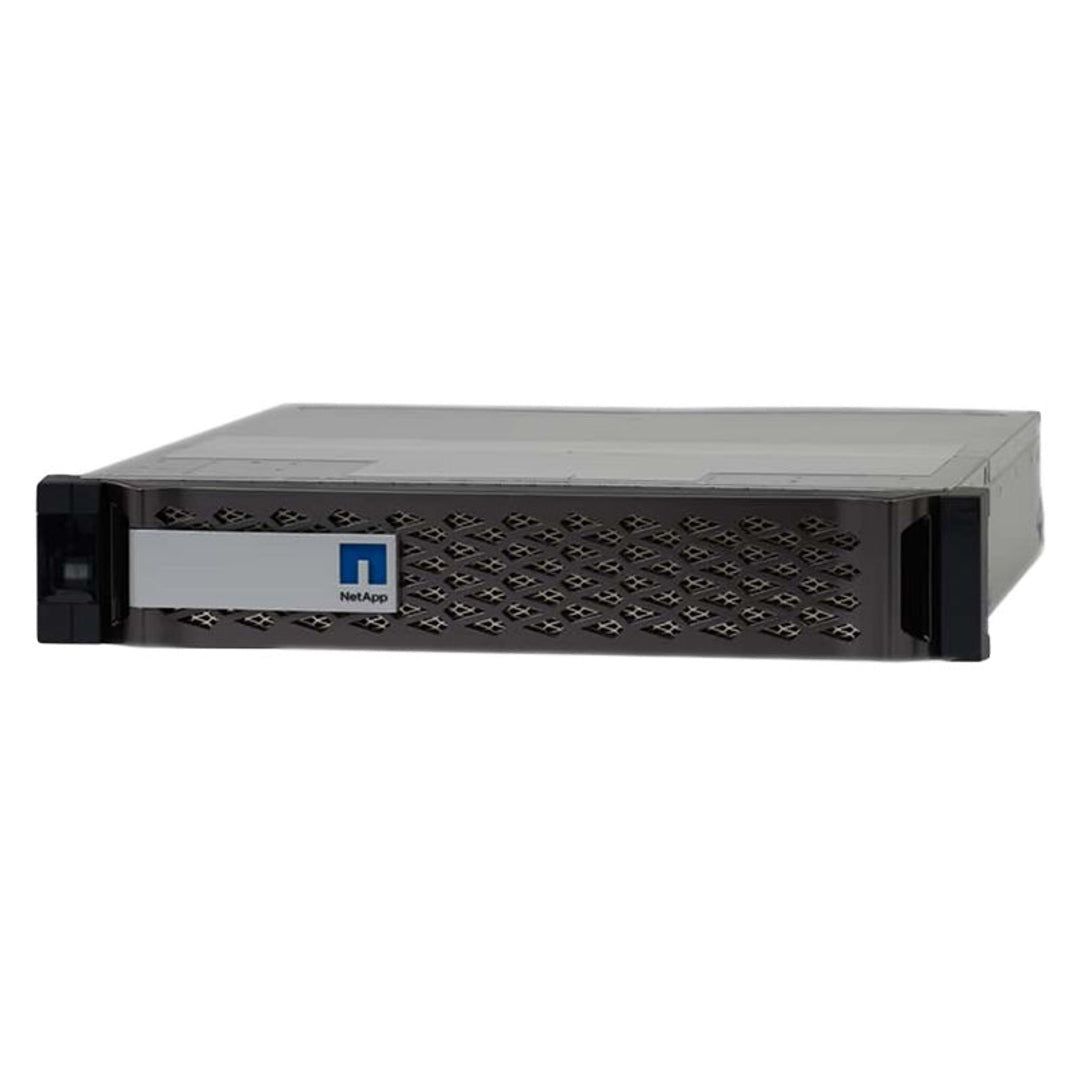

NetApp FAS2720 UTA2 Dual Controller Filer Head (HA)

Name: NetApp FAS2720 UTA2 Dual Controller Filer Head (HA)
Brand: NetApp
SKU: FAS2720A-UTA2
Availability: OutOfStock

NetApp

| Filer Head

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Quick Specs

Powered by NetApp® ONTAP® data management software, we can help you build a storage infrastructure that is simple, secure, and trusted. NetApp FAS Storage Arrays provides customers with a balance of performance and capacity.

The FAS2720 has two Controller Options, a UTA2 and a 10GBASE-T. Each controller comes with a different numbering of ports and protocols. All other aspects of this Filer are identical as far as supported drives, and capacity.

The FAS2720 UTA2 base configuration ships with a 1TB NVMe Flash Cache internal adapter configured on each node.
No upgrade of Flash Cache capacity is offered.

Model & Form Factor

Model: NetApp FAS2720 UTA2
Form Factor: 2U
PCIe Expansion Slots: None
Disk Shelves: DS212C, DS224C, DS460C
Filer Heads: N/A

Dimensions & Weight

Chassis Heights: 3.42" (8.69 cm)
Chassis Width w/o Mounting Flanges: 17.6" (44.7 cm))
Chassis Depth w/ Cable Mgmt: 25.12" (63.8 cm)
Chassis Weight: up to 61.1 lb (27.7 kg)

Controller Specs

Controllers: Dual Controller (UTA2 HA Pair)
Max Controllers: 2
PCI Slot (per): None
Ethernet Ports (per): 2 x SFP+ (10Gb)
Fibre Channel Ports (per): N/A
UTA2 Ports (per): 4 x SFP+ (10Gb/16Gb)
SAS Ports (per): 2 x MiniSAS HD (12Gb)
Remote Management: Yes
Processor Model (per):1x 64-bit 12-core 1.50 Ghz
Memory (Single/HA): 32GB/64GB
NVME (per): 1024GB
NVMEM (per): 4GB

Storage

Max Number of Internal Drives: 12
Max Number Drives (total): 144
Max Capacity: 3,168TB (3.16PB)
Max Number of NL-SAS Drives: HA Pair: 144
Max Number of SAS Drives: HA Pair: 144
Max Number of SATA Drives: HA Pair: 144
Max Number of SSD Drives: HA Pair: 136
Drive Interface: NL-SAS, SAS, SATA, SSD
RAID: RAID 4, RAID 6 (RAID-DP), RAID-TEC
Max Number of DS212C Shelves: 1 internal + 9 external OR
0 internal + 10 external
Max Number of DS224C Shelves: 6 external
Max Number of DS460C Shelves: 2 external

UTA2 ports

A UTA2 (Unified Target Adapter 2) port on a NetApp system is a flexible, multi-protocol port that can support both Fibre Channel (FC) and Ethernet-based protocols (FCoE or iSCSI over Ethernet). These ports allow NetApp controllers to connect to storage networks using different protocols without needing separate dedicated adapters.
