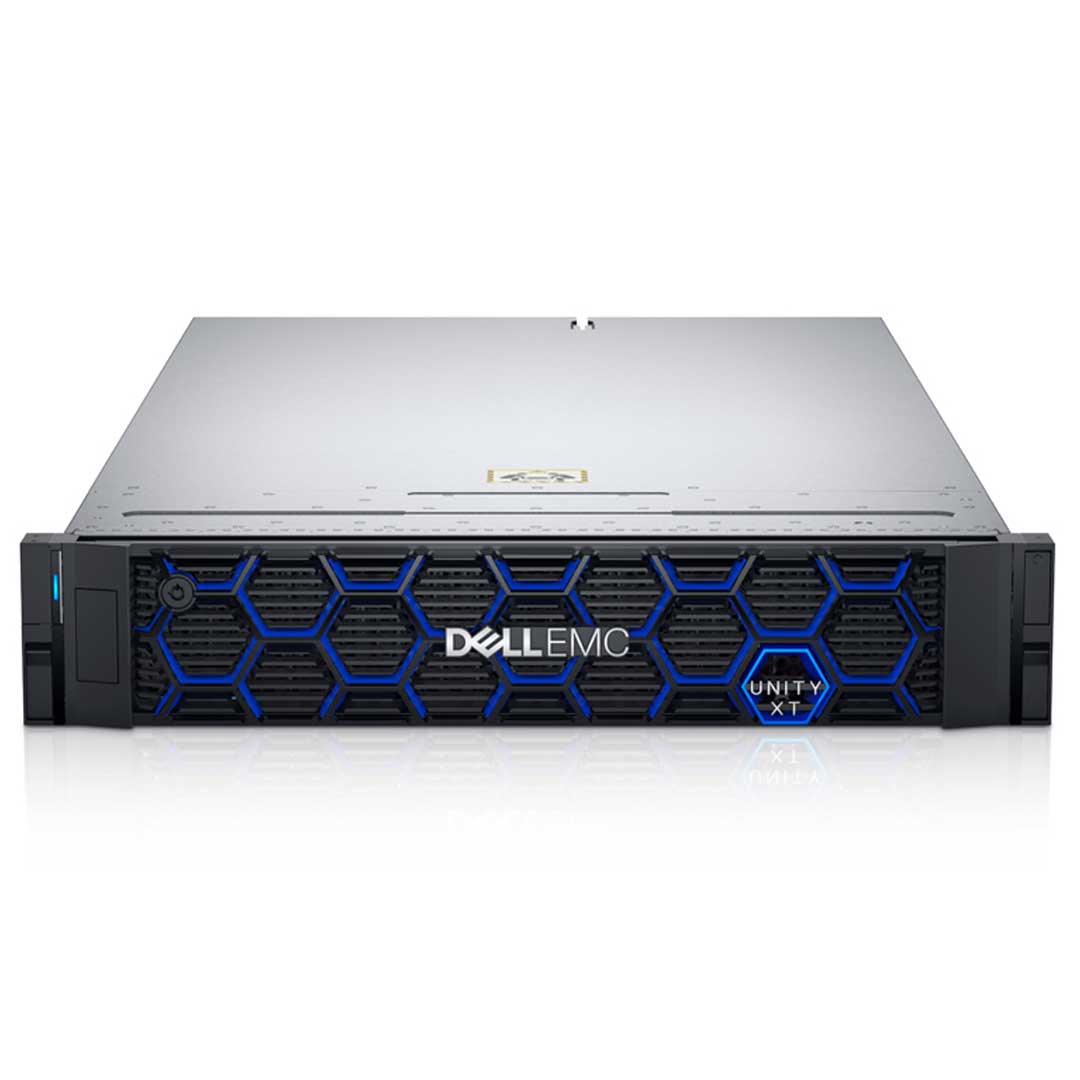

Dell EMC Unity XT 380 Hybrid

Name: Dell EMC Unity XT 380 Hybrid
Brand: Dell
SKU: DEUXT-380
Availability: OutOfStock

Dell

| Server

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

Form Factor: 2U
Max Drives: 6 or 10/500
Max. raw capacity (PB): 2.4PB
Drives Supported: SAS, NL-SAS and Flash
Max DAE 2U 25x2.5": 39
Max DAE 3U 80x2.5": 12
RAID Options: 1/0, 5, 6
Max Memory: 128 GB
Max FAST Cache per Array: Up to 800 GBs
Total Cache: Up to 928 GBs
Max Mezzanine cards per Array: N/A
Max IO Modules per Array: 4
Embedded SAS IO Ports per Array: 4 x 4 lane 12Gb/s SAS ports for BE (back end) Connection
I/O Supported: Support for File, Block (FC, iSCSI & FCoE) and Unified

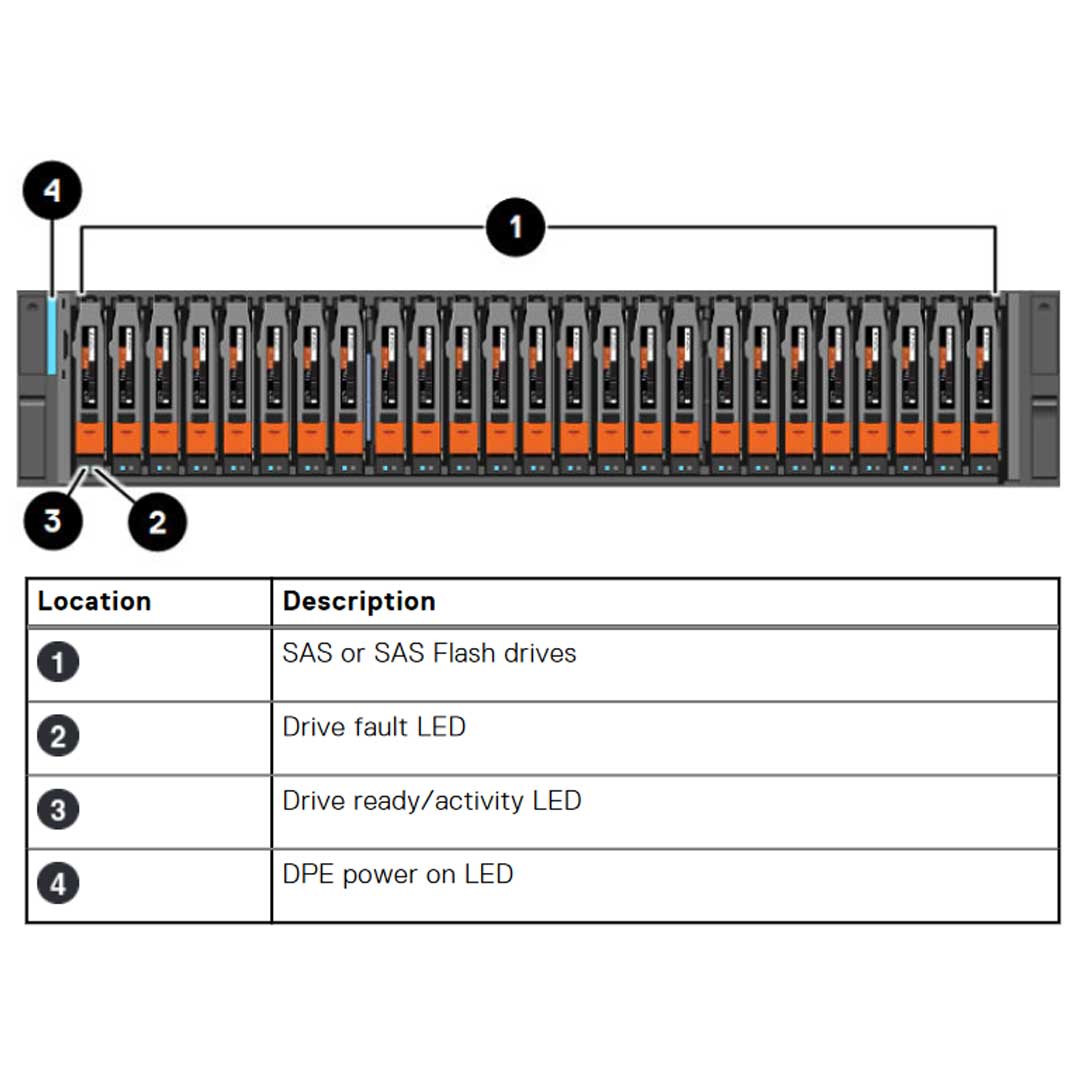

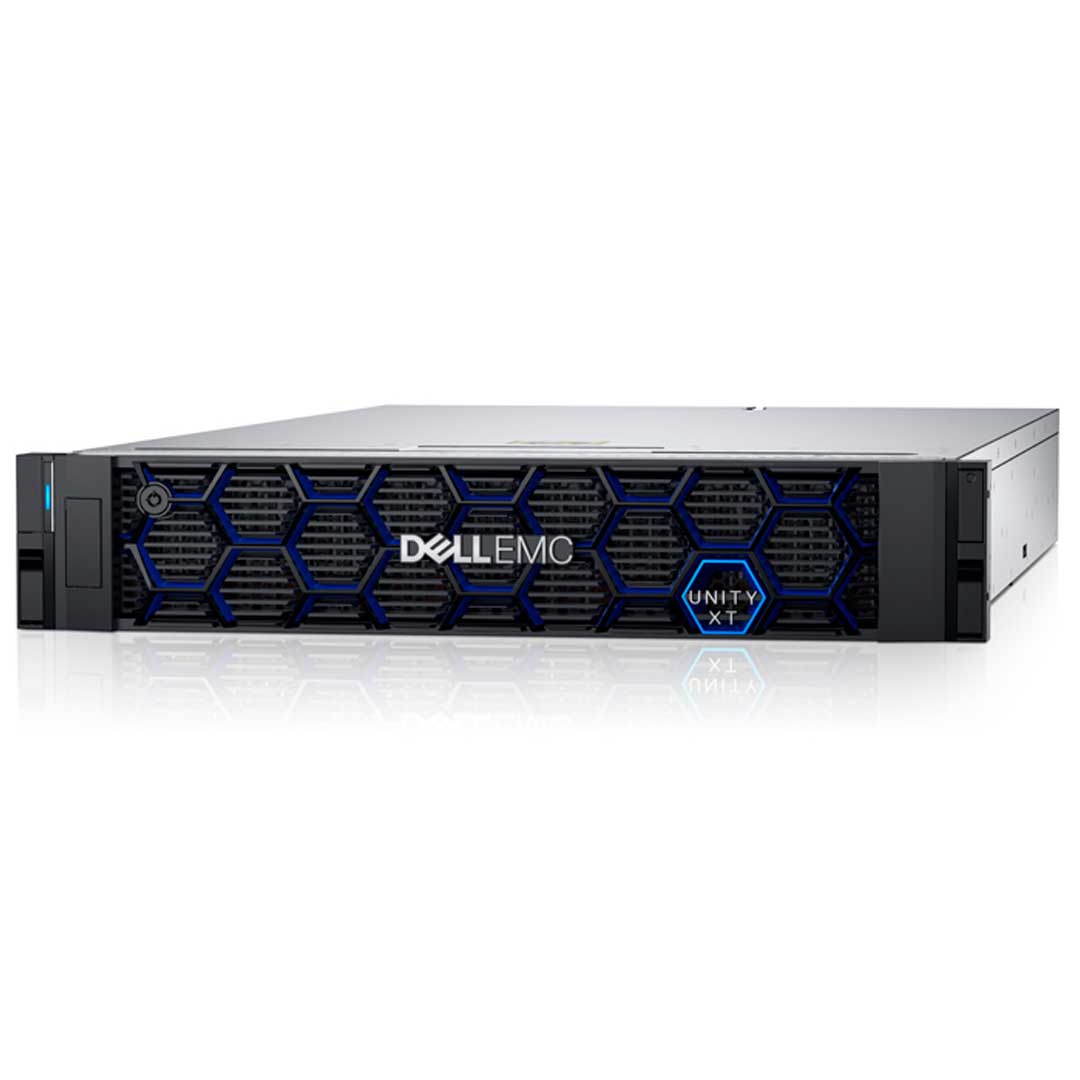

25-drive DPE:

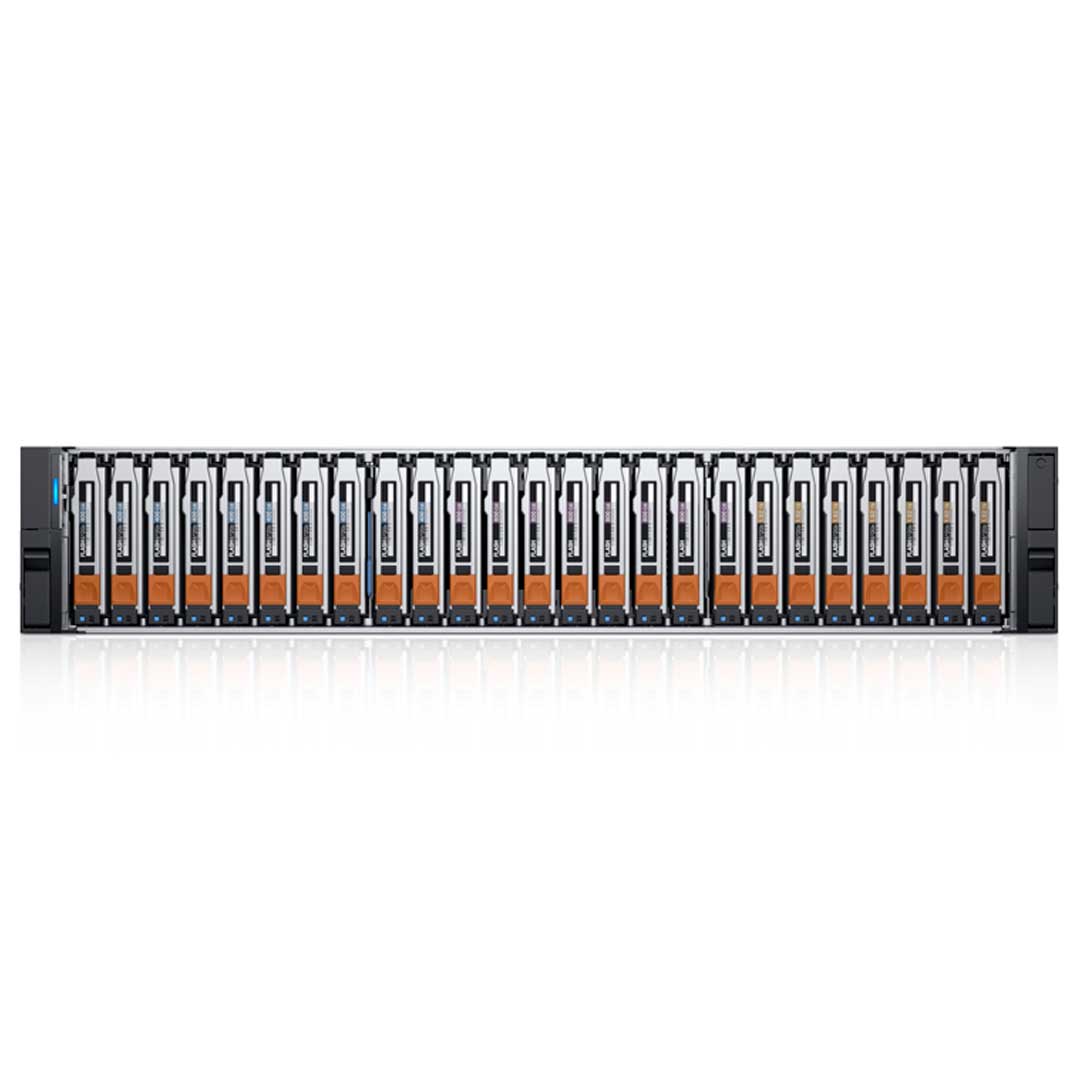

The 25-drive DPE is two rack units (U), 8.9 cm (3.5 in.) high, 79.2 cm (31.2 in.) deep, and includes slots for twenty-five 2.5-in. drives.

Disk Array Enclosure (DAE)

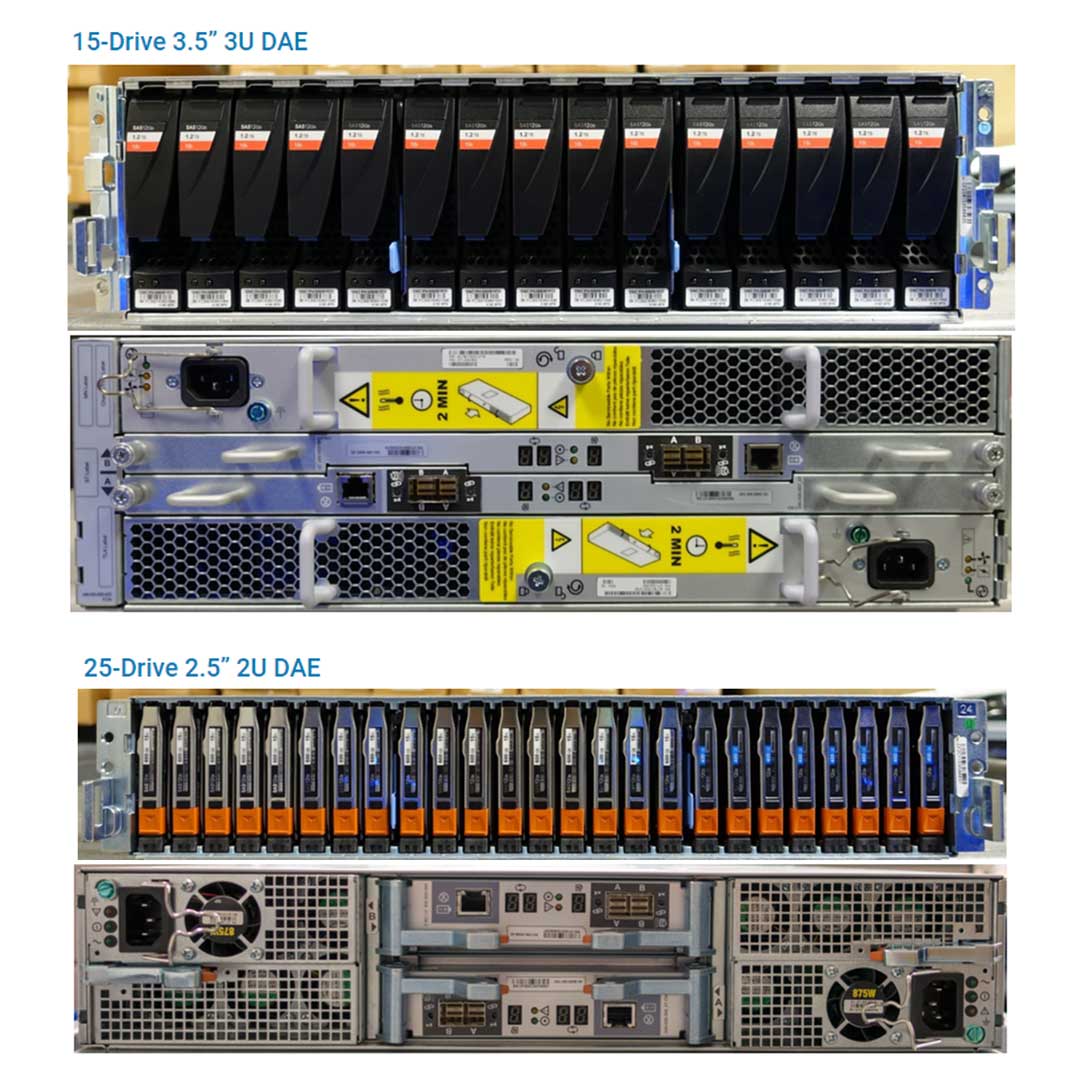

2U, 25-drive disk-array enclosure
3U, 15-drive disk-array enclosure

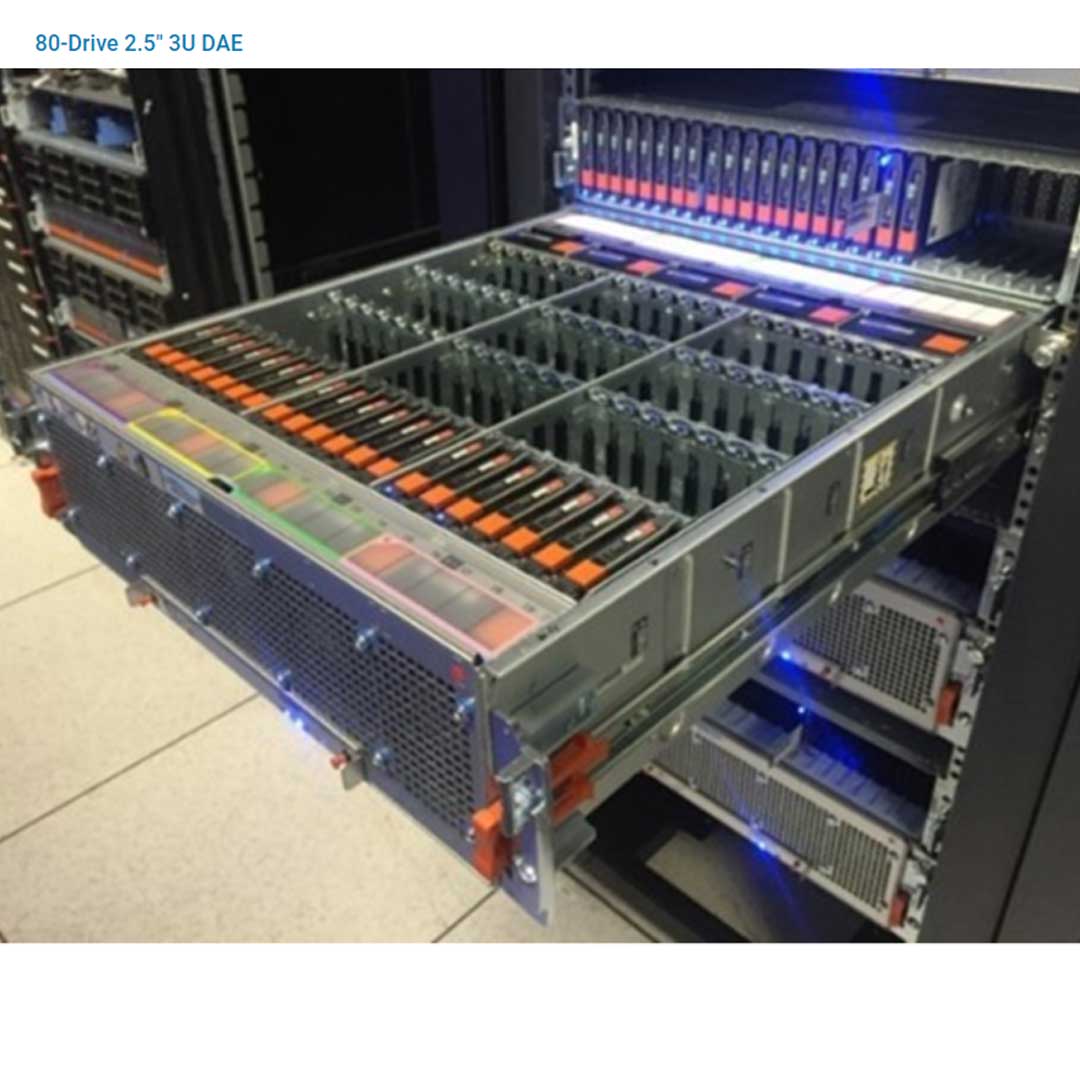

3U, 80-drive disk-array enclosure

The Unity 380/F has a different chassis than the rest of the Unity XT Series.

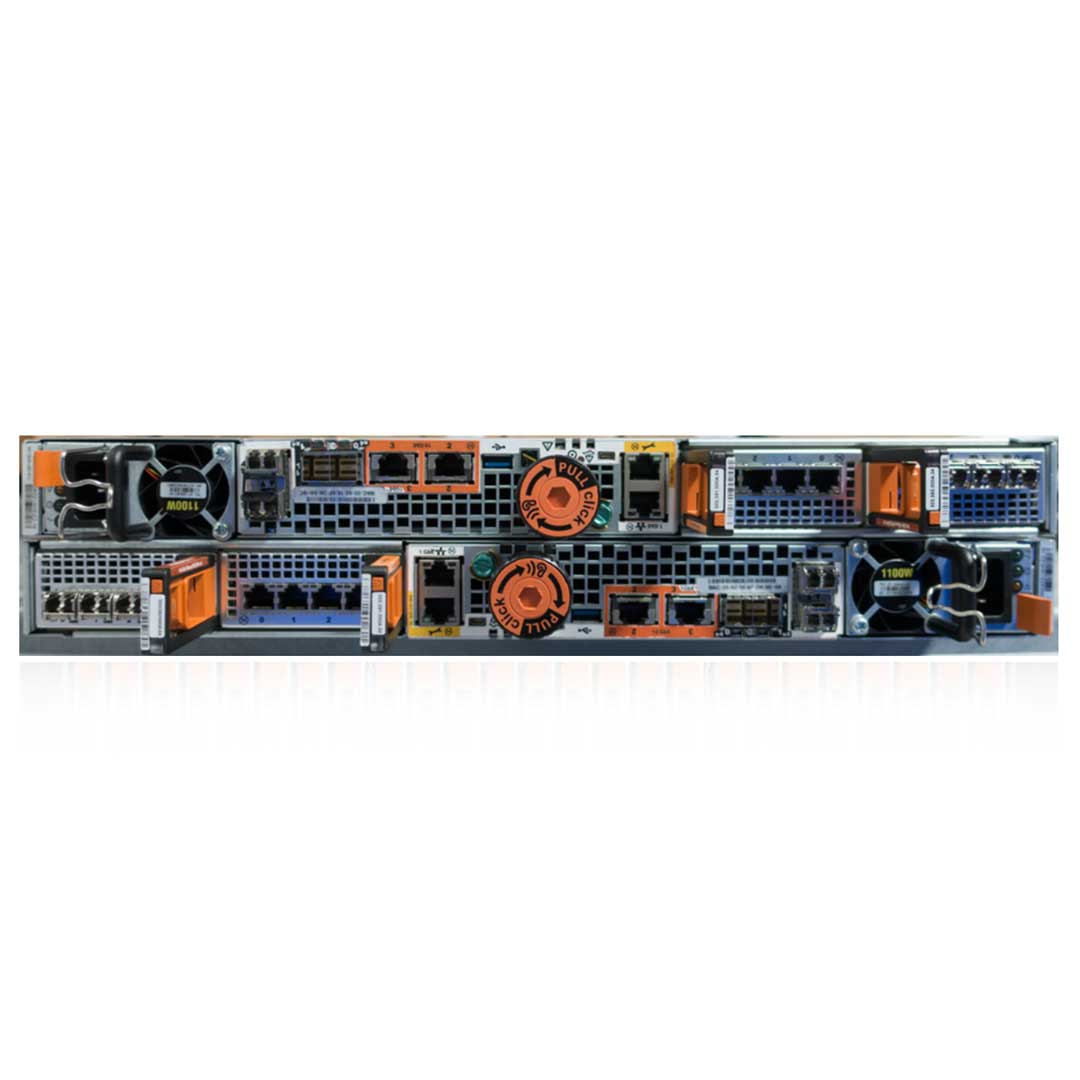

Each DPE contains two SP assemblies. The SP assembly is the intelligent component providing the compute capability of the DPE. Acting as the control center, each SP assembly includes status LEDs.

Please Note: The Dell EMC Unity hybrid models are the only ones to support FAST and FAST VP technology which helps with tiered storage and accessibility to high-frequency data.

Storage Processor (SP):

CPU: 2 x Dual-socket Intel CPUs, 12 cores per array, 1.7 GHz
Memory: 128 GB
Embedded SAS ports: 4 x 4 lane 12Gb/s SAS ports for BE (back end) Connection
Optional SAS Ports: N/A

I/O Modules:

Each SP has two slots that can support 5 different options.

4-port 32Gb Fibre Channel I/O module

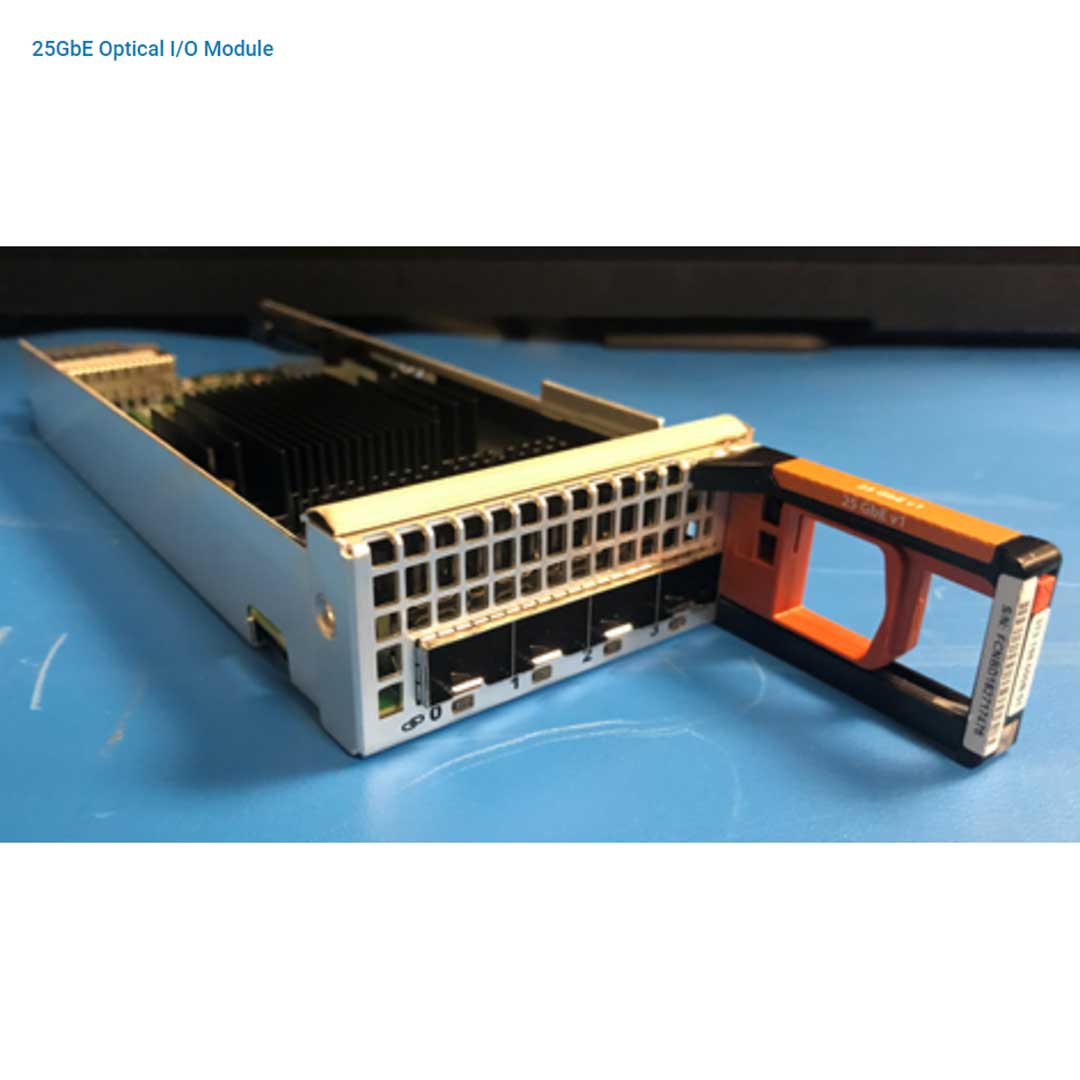

4-port 25GbE Optical I/O module

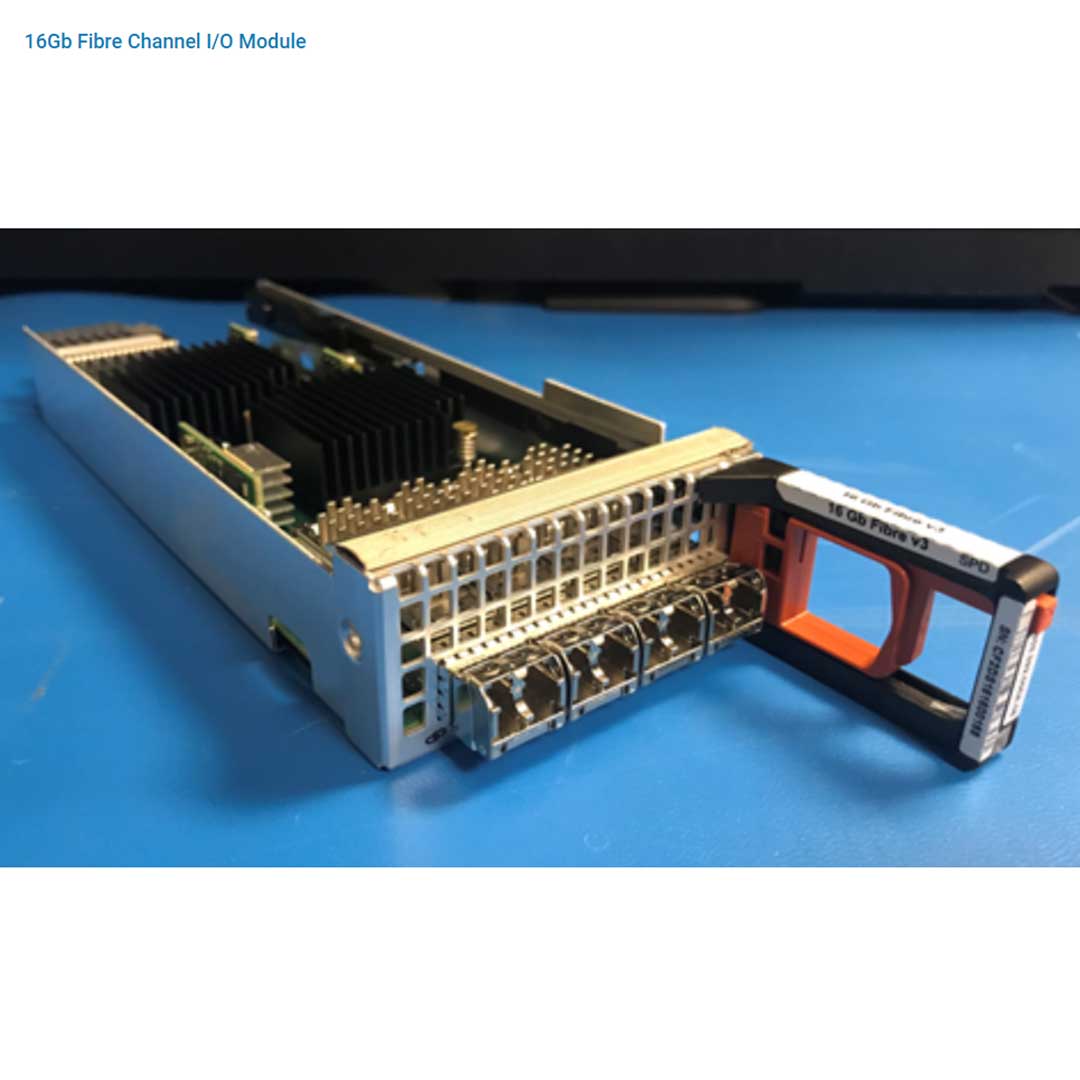

4-port 16Gb Fibre Channel I/O module

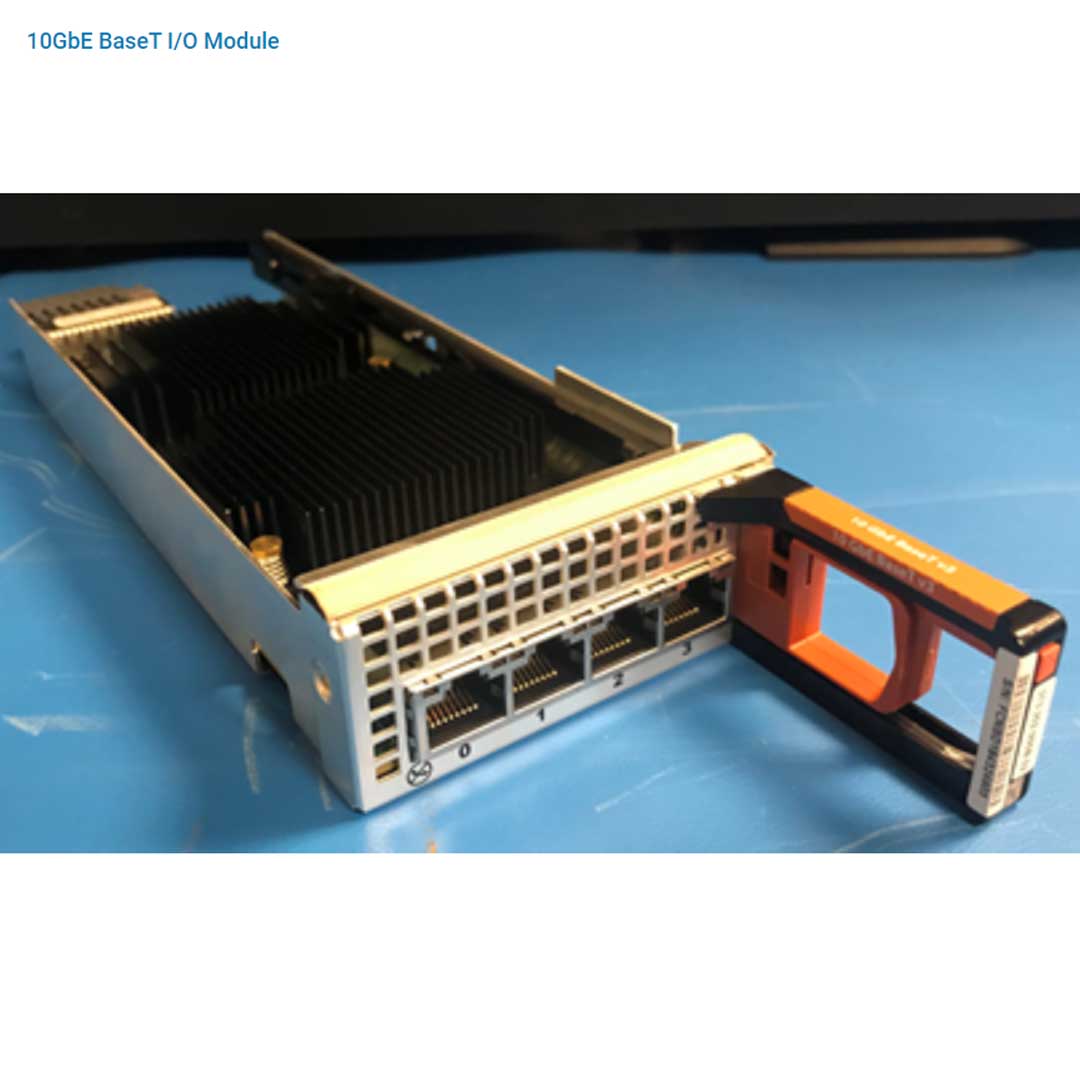

4-port 10GbE BaseT I/O module

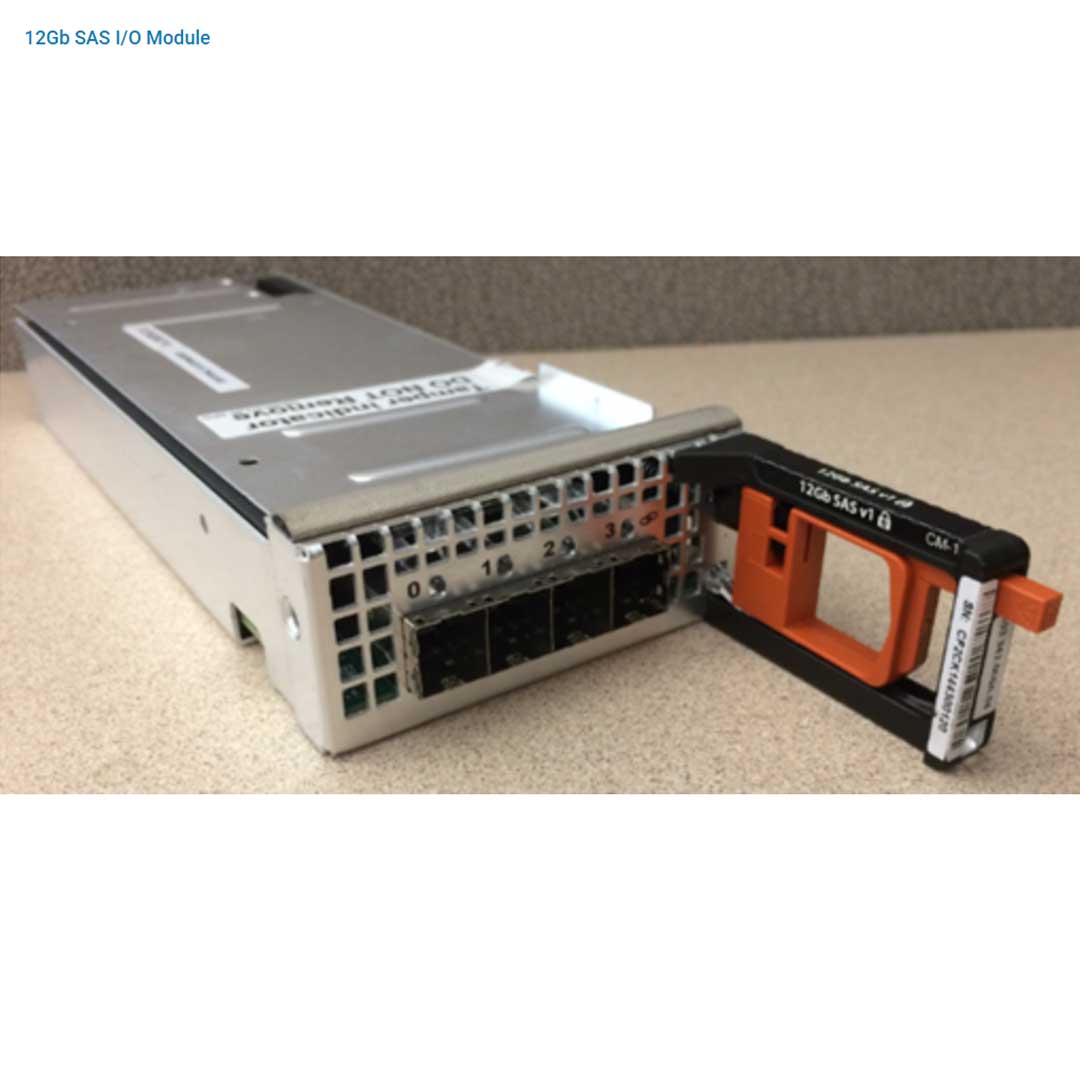

4-port 12Gb SAS backend I/O module

Note: When adding new I/O modules, always install I/O modules in pairs—one module in SP A and one module in SP B. Both SPs must have the same type of I/O modules in the same slots. Please read the manual below for more details to each module listed above.

Twenty-four, 288-pin DIMM sockets support up to 12 DDR4 DIMMs, capable of up to 96 GB, 192 GB, or 384 GB of memory, depending on the model.
Each SP assembly has two slots for M.2 SSD on a M.2 SSD adaptor located between DIMM slots 5/17 and 6/18. One M.2 SSD is used for general system operations, while the other M.2 SSD is used for vaulting.
Six redundant fan modules connect to the motherboard within the SP assembly to provide continuous airflow through the front drives and through the rear of the SP assembly to keep the components at optimal operating temperatures.
The SP assembly includes a Lithium-ion (Li-ion) internal battery that powers the associated SP assembly during a power event.

Power Supply – 380/F | 480/F
There are two power supply modules in a Disk Processor Enclosure (DPE), one per Storage Processor. A single power supply is capable of powering the entire DPE. Power supplies can be replaced without having to remove the Storage Processor or shutdown the system. Power supplies are offered for AC power and in Dell Unity OE version 5.2, a NEBS compliant DC variant power supply was introduced for Dell Unity XT 380/F and 480/F models. DC power supplies are not available for the 680/F and 880/F. For Unity XT 380 and 480 DC powered systems, 600GB and 1.8TB 10k SAS NEBS certified as well as 800GB 3WPD SSD NEBS certified drives are available. For Unity XT 380F and 480F DC powered systems, 1.92TB and 3.84TB 1WPD SSD NEBS drives are available.

Looking to Customize?

Not seeing the exact specs you need?
Start your build today with Express Computer Systems!

Start Customizing Today!

Spec Sheet 4

	380F/380	480F/480	680F/680	880F/880
Min/Max Drive Count	Min. 6 SSDs or 10 HDDs / Max. 500	Min. 6 SSDs or 10 HDDs / Max. 750	Min. 6 SSDs or 10 HDDs / Max. 1000	Min. 6 SSDs or 10 HDDs / Max. 1500
Array Enclosure	A 2U Disk Processor Enclosure (DPE) with twenty-five 2.5” drives
Drive Enclosure (DAE - Disk Array Enclosure)	All-Flash (F) models support 2.5” drives in the 2U twenty-five drive tray. Hybrid models support 2.5“drives in 2U twenty-five drive and 3.5” drives in 3U fifteen drive trays.
Standby Power System	Dell Unity systems are powered by 2 power supplies (PS) per DPE/DAE. Each power supply can provide power to the entire module if the peer PS has been removed or is faulted. DPE power during a power failure is provided by a Battery Back Up (BBU) module. BBU is located within the SP enclosure and provides power to a single module (power zone)
RAID Options	1/0, 5, 6
CPU per Array	2 x Intel CPUs, 12 cores per Array, 1.7GHz	2 x dual-socket Intel CPUs, 32 cores per Array, 1.8GHz	2 x dual-socket Intel CPUs, 48 cores per Array, 2.1GHz	2 x dual-socket Intel CPUs 64 cores per Array, 2.1GHz
System Memory/Cache per Array	128 GB	192 GB	384 GB	768 GB
Max FAST Cache per Array*	Up to 800 GBs	Up to 1.2 TBs	Up to 3.2 TBs	Up to 6.0TBs
Total Cache *A	Up to 928 GBs	Up to 1.39 TBs	Up to 3.58 TBs	Up to 6.76 TBs
Max Mezzanine cards per Array *B	NA	2	2	2
Max IO Modules per Array *C	4	4	4	4
Embedded SAS IO Ports per Array	4 x 4 lane 12Gb/s SAS ports for BE (back end) Connection	4 x 4 lane 12Gb/s SAS ports for BE Connection	4 x 4 lane 12Gb/s SAS ports for BE Connection	4 x 4 lane 12Gb/s SAS ports for BE Connection
Optional SAS IO ports per Array	NA	8 x 4 lane or 4 x 8 lane 12Gb/s SAS ports (for BE Connection)	8 x 4 lane or 4 x 8 lane 12Gb/s SAS ports (for BE Connection)	8 x 4 lane or 4 x 8 lane 12Gb/s SAS ports (for BE Connection)
Base 12 Gb/s SAS BE Buses per Array	2 x 4 Lane	2 x 4 Lane	2 x 4 Lane	2 x 4 Lane
Max 12 Gb/s SAS BE Buses per Array	2 x 4 Lane	6 x 4 Lane; or 2 x 4 lane and 2 x 8 lane	6 x 4 Lane; or 2 x 4 lane and 2 x 8 lane	6 x 4 Lane; or 2 x 4 lane and 2 x 8 lane
Max FE (front end) Total Ports per Array (all types)	20	24	24	24
Max Initiators per Array	1,024	2,048	2,048	4,096
Max FC Ports per Array	20	16	16	16
Embedded 10GbaseT Ports per Array	NA	NA	NA	NA/td>
Embedded CNA ports per Array	4 ports: 8/16 Gb FCD, 10Gb IP/iSCSI, or 1Gb RJ45	NA	NA	NA
1 Gbase-T/iSCSI Max Total Ports per Array	20	24	24	24
10/25 GbE/iSCSI Max Total Ports per Array	20 – 10GbE 16 – 25GbE	24	24	24
Max Raw Capacity *E	2.4 PBs	4.0 PBs	8.0 PBs	16.0 PBs
Max SAN Hosts	512	1,024	1,024	2,048
Max Number of Pools	20	30	40	100
Max Number of LUNs per Array	1,000	1,500	2,000	4,000
Max LUN Size	256 TB	256 TB	256 TB	256 TB
Max File Systems per Array	1000	1500	2000	4000
Max File System Size	256 TB	256 TB	256 TB	256 TB
Max attached snapshots per Array (Block)	1000	1500	2000	4000
IOPSF (All Flash Models 380F – 880F)	up to 600K	up to 1.68M	up to 2.36M	up to 2.56M
OS Support	See the Dell Simple Support Matrix on dell.com
A Specific to Hybrid Arrays. B One Mezzanine card per Storage Processor (SP), mirrored. C Two IO Modules per Storage Processor (SP), mirrored. D 16Gb available in both single mode and multimode. E Maximum raw capacity will vary based on drive sizes available at time of purchase. F 100% sequential Reads, 4K block size, thick LUNs. Based on internal testing (June 2019). Your results may vary.
