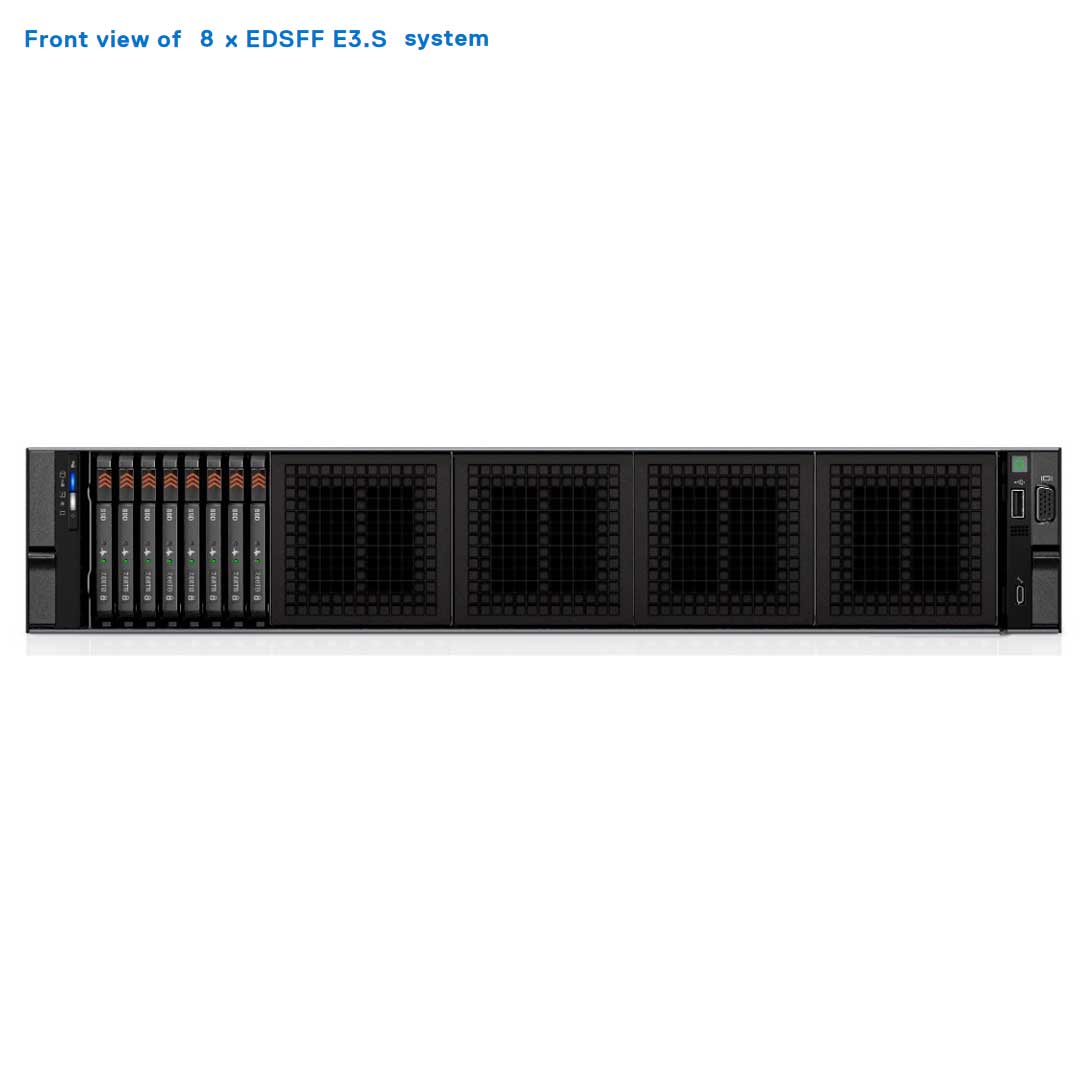

Dell PowerEdge R860 Rack Server Chassis (8x EDSFF E3.S NVMe)

SKU: DPE-R860-8EDSFF-Chassis

Dell PowerEdge R860 Rack Server Chassis (8x EDSFF E3.S NVMe)

Name: Dell PowerEdge R860 Rack Server Chassis (8x EDSFF E3.S NVMe)
Brand: Dell
SKU: DPE-R860-8EDSFF-Chassis
Availability: InStock

Dell

| Chassis

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

Form Factor:

2U rack server

Processor Max: 60 Core

Up to 4x Gen 4 Intel Xeon Scalable

Memory Max: 16TB

Up to 64 DDR5 RDIMM 4800Mhz
Supports registered ECC DDR5 DIMMs only.

Storage Max: 61.44 TB

8x EDSFF E3.S Gen5 NVMe Max: 61.44 TB

Rear Storage Max: N/A

Only Supported on the 24 Bay SAS/SATA Configuration

Boot Options:

BOSS-N1
USB

PCIe Slots: 8 Gen: 5.0

Slot 1:

1 x16 Gen5
or 1 x8 Gen4 FH, HL

Slot 2:

1 x16 Gen5
or 1 x8 Gen4 FH, HL

Slot 3: 1 x16 Gen5 LP, HL

Slot 4: 1 x16 Gen5 FH, HL

Slot 5: 1 x16 Gen5 FH, HL

Slot 6: 1 x16 Gen5 LP, HL

Slot 7:

1 x16 Gen5
or 1 x8 Gen4 FH, HL

Slot 8:

1 x16 Gen5
or 1 x8 Gen4 FH, HL

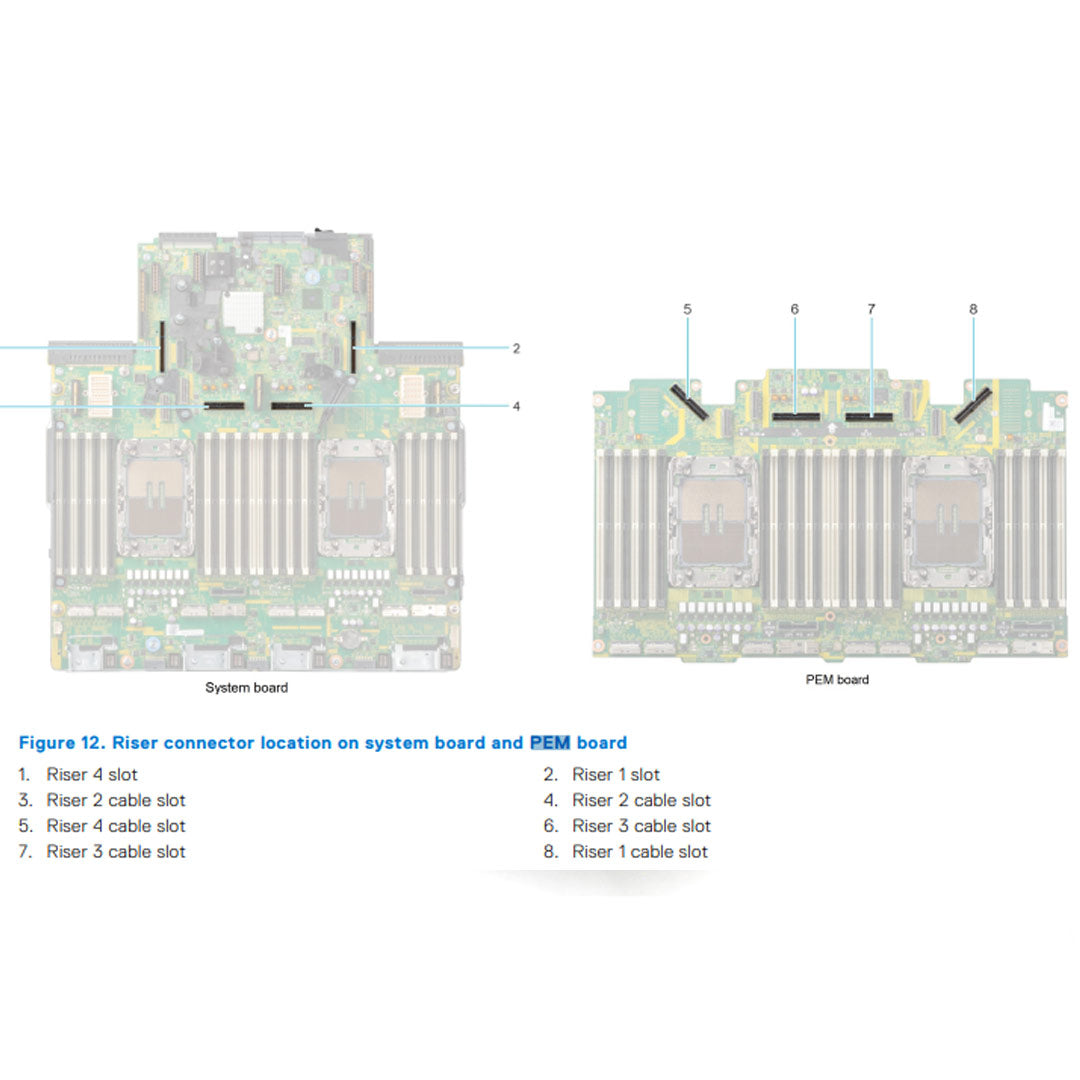

Please view the riser Section below for more details.

Remote management:

iDRAC9 with Lifecycle Controller

Networking LOM & OCP 3.0:

2 x 1 GbE LOM card (optional)
1 x OCP card 3.0 (optional)
Note: The system allows either LOM card or an OCP card or both to be installed in the system.

RAID controllers (PERC 9) Max: 2

S160 (SW)
PERC H355, H755, H965i, HBA355i, HBA355e, H965e

GPU

Not Supported

Other Versions

Ideal for:

Artificial Intelligence (AI)
Database
Deep Learning
High-Performance Computing (HPC)
Machine Learning (ML)
Virtual Desktop Interface (VDI)
Virtualization
Virtual Machines (VM)

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

Features	Technical Specifications
Processor	Up to four 4th Generation Intel Xeon Scalable processor with up to 60 cores per processor and with optional Intel® QuickAssist Technology
Memory	• 64 DDR5 DIMM slots, supports RDIMM 16 TB max, speeds up to 4800 MT/s • Supports registered ECC DDR5 DIMMs only
Storage controllers	• Internal Controllers: PERC H965i, PERC H755, PERC H355, HBA355i • External Controller: PERC H965e • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB • External HBA (non-RAID): HBA355e • Software Raid: S160
Drive Bays	Front bays: • Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) drives max 122.88 TB • Up to 8 x EDSFF E3.S Gen5 NVMe (SSD) max 61.44 TB • Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) drives max 245.76 TB • Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) drives max 368.34 TB • Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) drives + 8 x 2.5-inch NVMe (SSD) drives max 368.34 TB Rear bays: • Up to 2 x 2.5-inch SAS/SATA (HDD/SSD) max 30.72 TB
Power Supplies	• 1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant • 1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant • 1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant • 2400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant • 2800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
Cooling Options	• Air cooling • Optional Direct Liquid Cooling (DLC)* Note: DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate. (There is no mention of a DLC in any other manuals. Since this server is so new the manuals might get updated. As of now, you will not see any DLC options untill they do update their manuals.
Fans	• Standard (STD) fans • Up to 6 sets hot plug fans
Dimensions	• Height – 86.8 mm (3.41 inches) • Width – 482 mm (18.97 inches) • Depth – 883.2 mm (34.77 inches) with bezel 869.2 mm (34.22 inches) without bezel
Form Factor	2U rack server
Embedded Management	• iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module • Quick Sync 2 wireless module
Bezel	Optional LCD bezel or security bezel
OpenManage Software*	• CloudIQ for PowerEdge plug in • OpenManage Enterprise • OpenManage Enterprise Integration for VMware vCenter • OpenManage Integration for Microsoft System Center • OpenManage Integration with Windows Admin Center • OpenManage Power Manager plugin • OpenManage Service plugin • OpenManage Update Manager plugin
Mobility*	OpenManage Mobile
OpenManage Integrations*	• BMC Truesight • Microsoft System Center • OpenManage Integration with ServiceNow • Red Hat Ansible Modules • Terraform Providers • VMware vCenter and vRealize Operations Manager
Security	• Cryptographically signed firmware • Data at Rest Encryption (SEDs with local or external key mgmt) • Secure Boot • Secured Component Verification (Hardware integrity check) • Secure Erase • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC	2 x 1 GbE LOM card (optional)
Network Options	1 x OCP card 3.0 (optional) Note: The system allows either LOM card or an OCP card or both to be installed in the system.
GPU Options	N/A

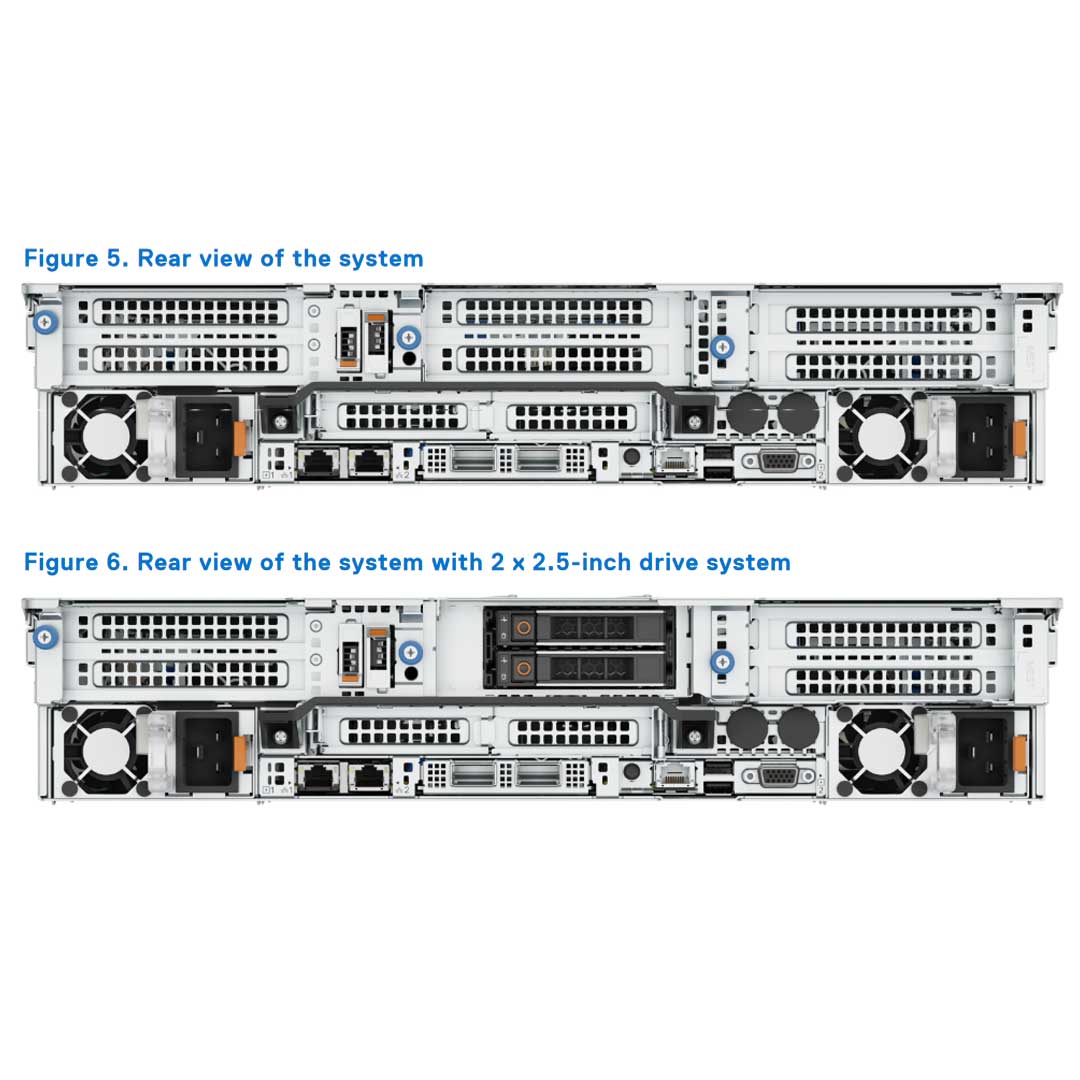

Ports	Front Ports • 1 x iDRAC Direct (Micro-AB USB) port • 1 x USB 2.0 • 1 x VGA	Rear Ports • 1 x Dedicated iDRAC ethernet port • 1 x USB 3.0 • 1 x USB 2.0 • 1 x Serial (optional) • 1 x VGA (optional for Direct Liquid Cooling configuration)
Ports	Internal Ports • 1 x USB 3.0 (optional)
PCIe	Up to eight PCIe slots: • Slot 1: 1 x16 Gen5 or 1 x8 Gen4 Full height, Half length • Slot 2: 1 x16 Gen5 or 1 x8 Gen4 Full height, Half length • Slot 3: 1 x16 Gen5 Low profile, Half length • Slot 4: 1 x16 Gen5 Full height, Half length • Slot 5: 1 x16 Gen5 Full height, Half length • Slot 6: 1 x16 Gen5 Low profile, Half length • Slot 7: 1 x16 Gen5 or 1 x8 Gen4 Full height, Half length • Slot 8: 1 x16 Gen5 or 1 x8 Gen4 Full height, Half length
Operating System and Hypervisors	• Canonical Ubuntu Server LTS • Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi

Spec Sheet 4

Features	PowerEdge R860		PowerEdge R840
Processors	4 x 4th Gen Intel® Xeon® Scalable Processors		4 x 2nd Generation Intel® Xeon® Scalable Processor
Processor interconnect	Intel Ultra Path Interconnect (UPI)		Intel Ultra Path Interconnect (UPI)
Memory	● 64 x DDR5 RDIMM ● Up to 4800 MT/s (1 DPC) / 4400 MT/s (2 DPC)		● 48 x DDR4 DIMM RDIMM /LRDIMM ● 24 x PMem ( Intel Optane Persistent Memory) ● 12 x NVDIMM
Storage Controllers	● PERC 11G: H755, H355 ● PERC 12G: H965i, H965e ● HBA 11: HBA355i, HBA355e ● BOSS-N1 ● Software RAID: S160		● PERC 9G: H330, H730p ● PERC 10G: H740p, H840 ● HBA 9: HBA330, 12 Gbps SAS HBA ● BOSS adapter ● Software RAID: S140 ● Internal Dual SD Module
Drive Bays	Front bays: ● 2.5 inches - 24Gb SAS, 6Gb SATA ● 2.5 inches - Gen3/4 NVMe ● EDSFF E3.S - NVMe Gen5 Rear bay: ● 2.5 inches - 24Gb SAS, 6Gb SATA, Gen3/4 NVMe		Front bays: ● 2.5 inches - 24Gb SAS, 6Gb SATA ● 2.5 inches - Gen3/4 NVMe Rear bay: ● 2.5 inches - 12Gb SAS, 6Gb SATA
Power Supplies	● AC (Platinum): 1400 W, 2400 W ● AC (Titanium): 1100 W, 1800 W, 2800 W		● AC (Platinum): 750 W, 1100 W, 1600 W, 2000 W, 2400 W ● AC (Titanium): 1600 W, 2600 W ● LVDC @-48VDC Input: 1100 W
Cooling Options	● Air Cooling		● Air Cooling
Fans	Standard (STD) fans		Standard (STD) fans
Fans	Up to 6 sets (dual fan module) hot plug fans		Up to six hot plug fans
Dimension	Height: 86.8 mm (3.41 inches)		Height: 86.8mm (3.4 inches)
	Width: 482 mm (18.97 inches)		Width: 434.0mm (17.08 inches)
	Depth: 883.2 mm (34.77 inches) with bezel		Depth: 879.8 mm (34.63 inches) with bezel
	Depth: 869.2 mm (34.22 inches) without bezel		Depth: 865.9 mm (34.09 inches) without bezel
Form Factor	2U rack server		2U rack server
Embedded Management	● iDRAC9 ● iDRAC Direct ● iDRAC RESTful API with Redfish ● iDRAC Service Manual ● Quick Sync 2 wireless module		● iDRAC9 ● iDRAC Direct ● Quick Sync 2 BLE/wireless module
Bezel	Optional LCD bezel or security bezel		Optional LCD bezel or security bezel
OpenManage Software	● CloudIQ for PowerEdge plug in ● OpenManage Enterprise ● OpenManage Enterprise Integration for VMware vCenter ● OpenManage Integration for Microsoft System Center ● OpenManage Integration with Windows Admin Center ● OpenManage Power Manager plug-in ● OpenManage Services plug-in ● OpenManage Update Manager plug-in		● OpenManage Enterprise ● OpenManage Power Center
Mobility	OpenManage Mobile		OpenManage Mobile
Integrations and Connections	OpenManage Integrations ● BMC Truesight ● Microsoft System Center ● OpenManage Integration with ServiceNow ● Red Hat Ansible Modules ● Terraform Providers ● VMware vCenter and vRealize Operations Manager		OpenManage Integrations ● BMC Truesight ® ● Microsoft System Center ● Red Hat Ansible Modules ● VMware vCenter	OpenManage Connections ● IBM Tivoli Netcool/ OMNIbus ● Micro Focus Operations Manager ● Nagios® Core & Nagios® XI
Security	● Cryptographically signed firmware ● Data at Rest Encryption (SEDs with local or external key mgmt) ● Secure Boot ● Secured Component Verification (Hardware integrity check) ● Secure Erase ● Silicon Root of Trust ● System Lockdown (requires iDRAC9 Enterprise or Datacenter) ● TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ		● Cryptographically signed firmware ● Secure Boot ● Secure Erase ● Silicon Root of Trust ● System Lockdown (requires iDRAC9 Enterprise or Datacenter) ● TPM 1.2/2.0, TCM 2.0 optional
Embedded NIC	2 x 1GbE LOM card (optional)		4 x 1GbE Network Daughter Card (optional)
Networking Options	OCP x16 (optional) Mezz 3.0 NOTE: The system allows either LOM card or OCP card or both to be installed in the system.		NA
GPU Options	NA		Up to 2 doublewidth GPUs or up to 2 full height FPGAs
Ports	Front Ports ● 1 x USB 2.0 ● 1 x VGA ● 1 x Dedicated iDRAC micro-USB	Rear Ports ● 1 x USB 2.0 ● 1 x iDRAC Direct/ethernet port ● 1 x USB 3.0 ● 1 x Serial port (optional) ● 1 x VGA	Front Ports ● 2 x USB 2.0 ● 1 x USB 3.0 (optional) ● 1 x VGA ● 1 x Dedicated iDRAC micro-USB	Rear Ports ● 2 x USB 3.0 ● 1 x iDRAC Direct/ethernet port ● 1 x Serial port (optional) ● 1 x VGA
Internal Port: 1 x USB 3.0		Internal Port: 1 x USB 3.0
PCIe	Up to 8 x PCIe slots ● 8 x PCIe Gen5 slots ● 4 x PCIe Gen4 slots		Up to 6 x PCIe Gen3 slots
Operating System and Hypervisors	● Canonical Ubuntu Server LTS ● Microsoft Windows Server with Hyper-V ● Red Hat Enterprise Linux ● SUSE Linux Enterprise Server ● VMware ESXi		● Canonical Ubuntu Server LTS ● Citrix Hypervisor ● Microsoft Windows Server LTSC with Hyper-V ● Red Hat Enterprise Linux ● VMware ESXi
