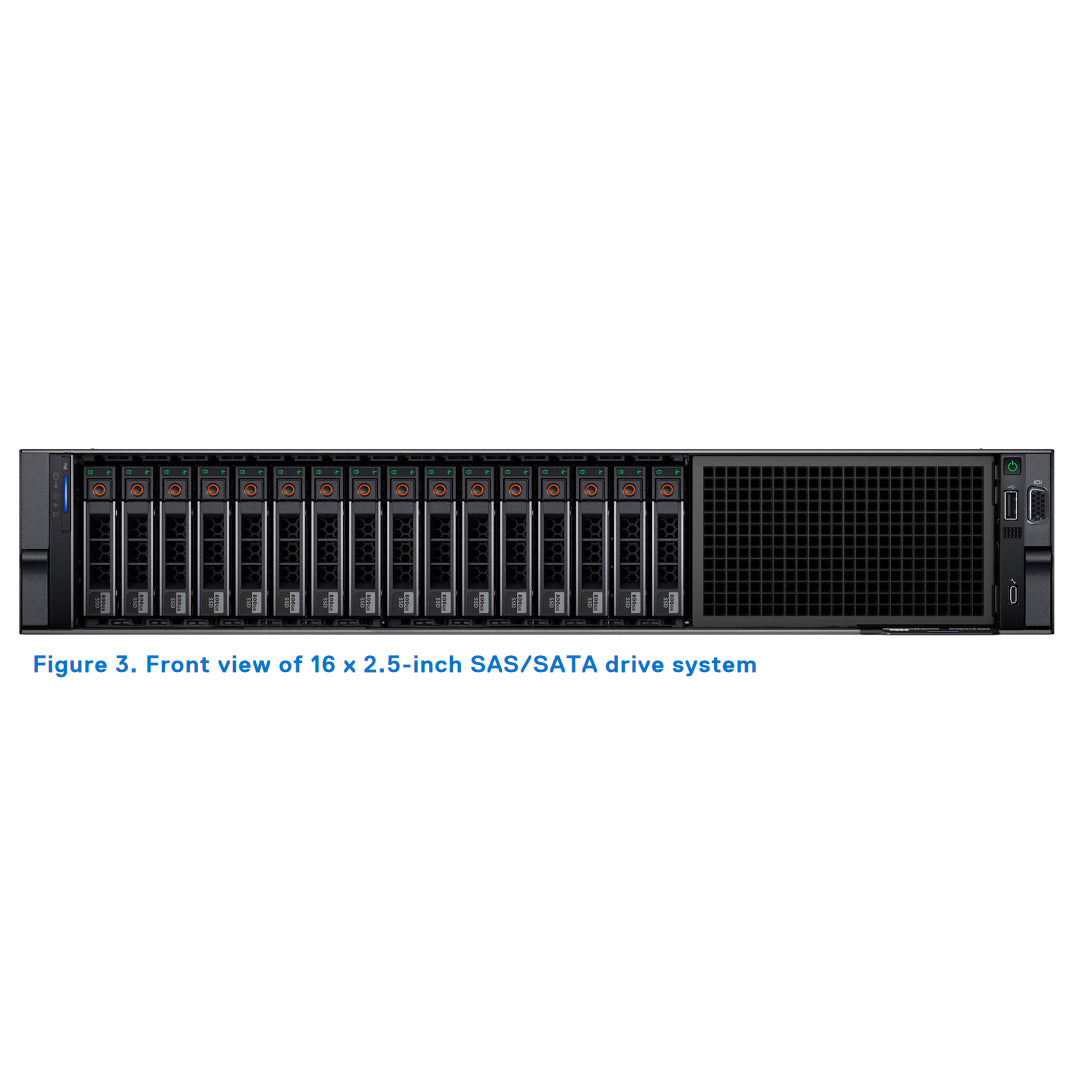

Dell PowerEdge R550 16 x 2.5" Rack Server Chassis

SKU: 72VV4

Dell Poweredge R550 Rack Server Chassis (16 X 2.5") | 72VV4

Name: Dell Poweredge R550 Rack Server Chassis (16 X 2.5") | 72VV4
Brand: Dell
SKU: 72VV4
Availability: OutOfStock

Dell

| Chassis

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

Form Factor:

2U rack server

Processor Max: 24 Cores

2x 3rd Gen Intel Xeon Scalable

Memory Max: 1TB

16 ECC DDR4 RDIMM 2933Mhz

Networking NIC:

2x 1GbE LOM BCM5720 LAN controller

Networking OCP:

1x OCP 3.0 (optional)

Storage Max: 122.88TB

16 x 2.5-inch SAS/SATA (HDD/SSD) Max: 122.88TB

Storage Controller:

S150 (SW RAID) SATA
Internal: H345, H355, HBA355i, H745, H755
External: H840, HBA355e

PCIe Slots:

3 x16 Gen4 low profile
1 x8 Gen3 (x4 lane) low profile

GPU:

None

Boot Options:

BOSS-S2
IDSDM
Internal USB 3.0

Remote Management:

iDRAC9

Other Versions

Ideal for:

Corporate IT
Virtualization

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

Feature	Technical Specification
Processor	Up to two 3rd Generation Intel Xeon Scalable processors with up to 24 cores per processor
Memory	16 DDR4 DIMM slots, supports RDIMM 1 TB max, speeds up to 2933 MT/s Supports registered ECC DDR4 DIMMs only
Storage controllers	Internal Controllers: PERC H345, PERC H355, HBA355i, PERC H745, PERC H755, S150 Internal Boot: Internal Dual SD Module, USB, Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2x M.2 SSDs External PERC (RAID): PERC H840 External HBA (non-RAID): HBA355e
Drive bays	Front bays: Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 122.88 TB Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 128 TB Up to 8 x 2.5-inch SAS/SATA (HDD) max 61.44 TB
Power supplies	600W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant 800W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant 1100W -48Vdc hot swap redundant (CAUTION: only works with -48Vdc to -60Vdc power input)
Cooling options	Air Cooling
Fans	Standard (STD) fans Up to five cabled fans
Dimensions	Height – 86.8 mm (3.41 inches) Width – 482 mm (18.97 inches) Depth – 721.69 mm (28.72 inches) with bezel 685.78 mm (27.00 inches) without bezel
Form Factor	2U rack server
Embedded mgmt	iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish iDRAC Service Manual Quick Sync 2 wireless module
Bezel	Optional LCD bezel or security bezel
OpenManage™ Software	OpenManage Enterprise OpenManage Power Manager plugin OpenManage SupportAssist plugin OpenManage Update Manager plugin
Mobility	OpenManage Mobile
Integrations and Connections	OpenManage Integrations BMC Truesight Microsoft System Center Red Hat Ansible Modules VMware vCenter and vRealize Operations Manager	OpenManage Connections IBM Tivoli Netcool/OMNIbus IBM Tivoli Network Manager IP Edition Micro Focus Operations Manager Nagios Core Nagios XI
Security	Cryptographically signed firmware Secure Boot Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC	2 x 1 GbE LOM
Network Options	1 x OCP 3.0 (optional)
GPU Options	Not supported
Ports	Front Ports: 1 x USB 2.0 1 x VGA 1 x iDRAC Direct (Micro-AB USB) port Internal Ports 1 x USB 3.0 (optional)	Rear Ports 1 x USB 2.0 1 x USB 3.0 1 x VGA 1 x Serial port (Optional) 1 x iDRAC ethernet port
PCIe	3 x PCIe Gen4 slots + 1 x PCIe Gen3 slot 3 x16 Gen4 low profile 1 x8 Gen3 (x4 lane) low profile
Operating System and Hypervisors	Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V SUSE Linux Enterprise Server Red Hat Enterprise Linux VMware ESXi

Spec Sheet 4

Feature	PowerEdge R550	PowerEdge R540
Processor	Maximum two 3rd Generation Intel® Xeon® Scalable processors with maximum 24 cores per processor.	Maximum two 2nd Generation Intel® Xeon® Scalable processors with maximum 20 cores per processor.
Processor Interconnect	Intel Ultra Path Interconnect (UPI)	Intel Ultra Path Interconnect (UPI)
Memory	16 DDR4 DIMM slots, Supports RDIMM 1 TB, up to 3200 MT/s	16 DDR4 DIMM slots, Supports registered ECC DDR4 DIMMs only, Up to 2666 MT/s
Storage Drives	Front bays: ● Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) ● Up to 8 x 2.5-inch SAS/SATA(HDD/SSD) ● Up to 8 x 3.5-inch SAS/SATA (HDD/SSD)	Front bays: ● Up to 12 x 3.5-inch SAS/SATA HDD max 168 TB ● DVD-ROM, DVD+RW (optional) Rear bays: ● Up to 2 x 3.5-inch SAS/SATA HDD max 28 TB
Storage Controllers	Internal Controllers: PERC H345, PERC H355, PERC H745, PERC H755, HBA355i External Controllers: PERC H840, HBA355e Internal Boot: Internal Dual SD Module, Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs, USB Software RAID: S150	Internal Controllers: PERC H330, H730P, H740P, HBA330 External Controllers: H840, 12 Gbps SAS HBA Software RAID: S140 Internal Boot: Boot Optimized Storage Subsystem (BOSS): HWRAID 2 x M.2 SSDs 240GB, 480 GB, Internal Dual SD Module
PCIe Slots	3 x Gen 4 PCIe slots 1 x Gen 3 PCIe slot	Non-rear storage configuration ● 1 x full height/full length ● 1 x half height/half length (2U Right riser) slots ● 3 x half height/half length slots Rear storage config ● 1 x half height/half length (1U left riser) ● 1 x half height/half length or 1full height/half length (1U right riser)
Embedded NIC (LOM)	2 x 1GbE LOM	2 x 1GbE LOM
Networking options (OCP 3.0)	OCP 3.0	2 x 1GbE LOM+ (optional) LOM Riser 2 x 1GbE, or 2 x 10GE SFP+, or 2 x 10GE BaseT
USB Ports	Front Ports ● 1 x iDRAC Direct (Micro-AB USB) port ● 1 x USB 2.0 ● 1 x VGA Rear Ports ● 1 x USB 2.0 ● 1 x Dedicated iDRAC ethernet port ● 1 x Serial (optional) ● 1 x USB 3.0 ● 1 x VGA Internal Ports ● 1 x USB 3.0 (optional)	Front Ports ● 1 x Dedicated iDRAC direct USB ● 1 x USB 2.0 ● 1 x Video Rear Ports ● 1 x Dedicated iDRAC network port ● 1 x Serial ● 2 x USB 3.0 ● 1 x Video
Rack Height	2U	2U
Power Supplies	● 600 W Platinum 100–240 VAC/ 240 VDC ● 700 W Titanium 200–240 VAC/240 VDC ● 800 W Platinum 100–240 VAC/ 240 VDC ● 1100 W DC/-48–(-60) V ● 1100 W Titanium 100–240 VAC/ 240 VDC	● 495 W Platinum ● 750 W Platinum ● 750 W 240HVDC Platinum ● 1100 W Platinum ● 1100 W 380 V HDC Platinum ● Hot plug power supplies with full redundancy option
System Management	● iDRAC9 ● iDRAC Direct ● iDRAC Service Module ● Quick Sync 2 wireless module	● iDRAC9 ● iDRAC RESTful API with Redfish ● iDRAC Direct ● Quick Sync 2 BLE/wireless module
Availability	● Hot-plug Drives ● Hot-plug Redundant Power Supplies ● Internal Dual SD Module (IDSDM)	● Hot-plug Drives ● Hot-plug Redundant Power Supplies ● Internal Dual SD Module (IDSDM)
