SKU: DEU-300

Dell EMC Unity 300 Hybrid

Name: Dell EMC Unity 300 Hybrid
Brand: Dell
SKU: DEU-300
Availability: OutOfStock

Dell

| Server

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

Form Factor: 2U
Max Drives: 5/150
Hybrid Storage Max Fast Cache: 800GBs
Max. raw capacity (PB): 2.4PB
Drives Supported: SAS, NL-SAS and Flash
Max DAE: 9
RAID Options: 1/0, 5, 6
Max Memory: 48GB
Supported Back-End I/O modules: None
I/O Supported: Support for File, Block (FC, iSCSI & FCoE) and Unified

12-drive DPE:

3.4 inches high x 17.5 inches wide x 27 inches deep (8.64 cm x 44.45 cm x 68.58 cm) 65 lb (29 kg)

25-drive DPE:

3.4 inches high x 17.5 inches wide x 24.17 inches deep (8.64 cm x 44.45 cm x 61.39 cm) 44 lb (20 kg)

Disk Array Enclosure (DAE)

The Dell EMC Unity 300 supports all three types of DAE’s with a max being either 9 DAE’s or 150 drives. When calculating the number of drives make sure to count the DPE drives as well in the total.

2U 25-drive DAE with 2.5-inch drives
3U 15-drive DAE with 3.5-inch drives
3U 80-drive DAE with 2.5-inch drives

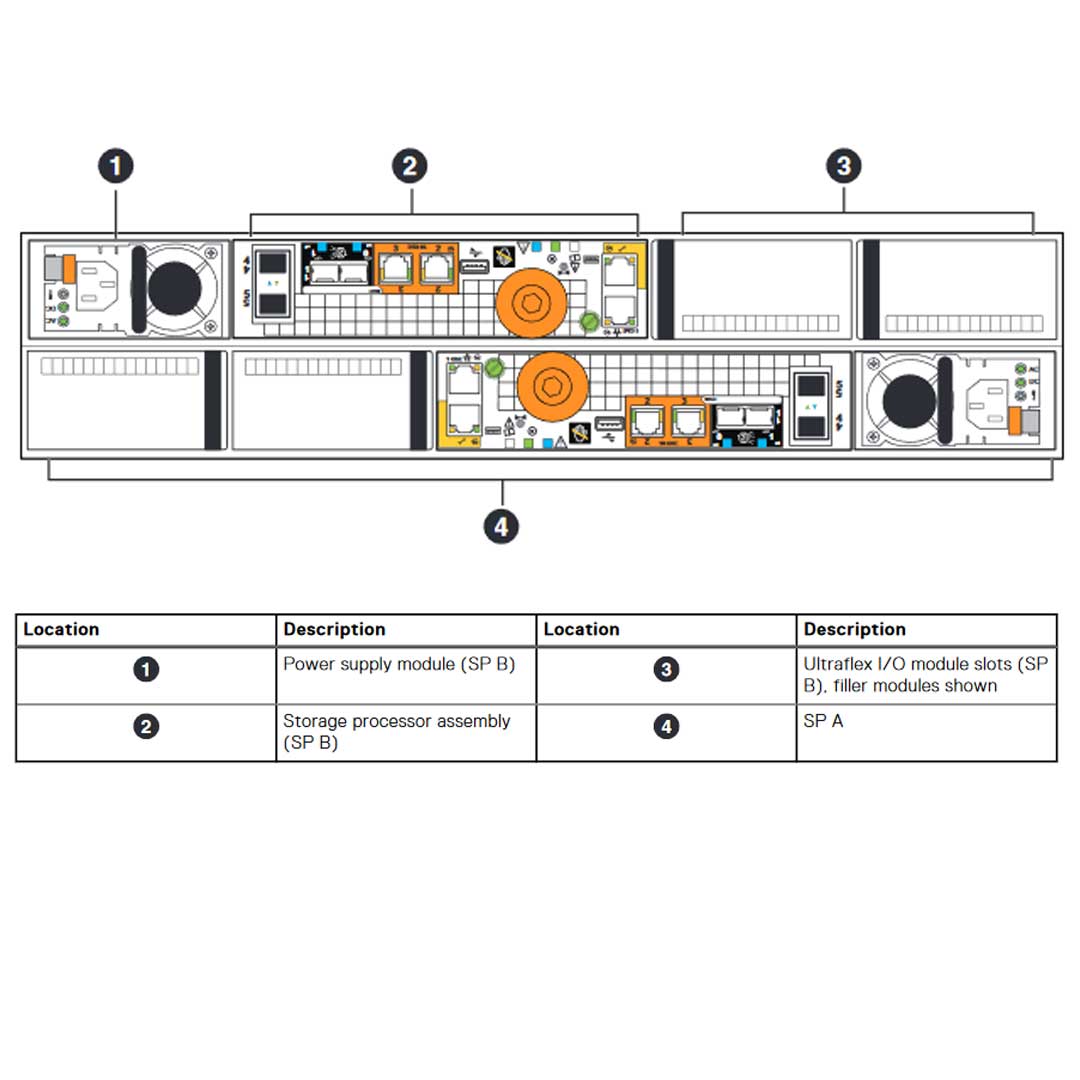

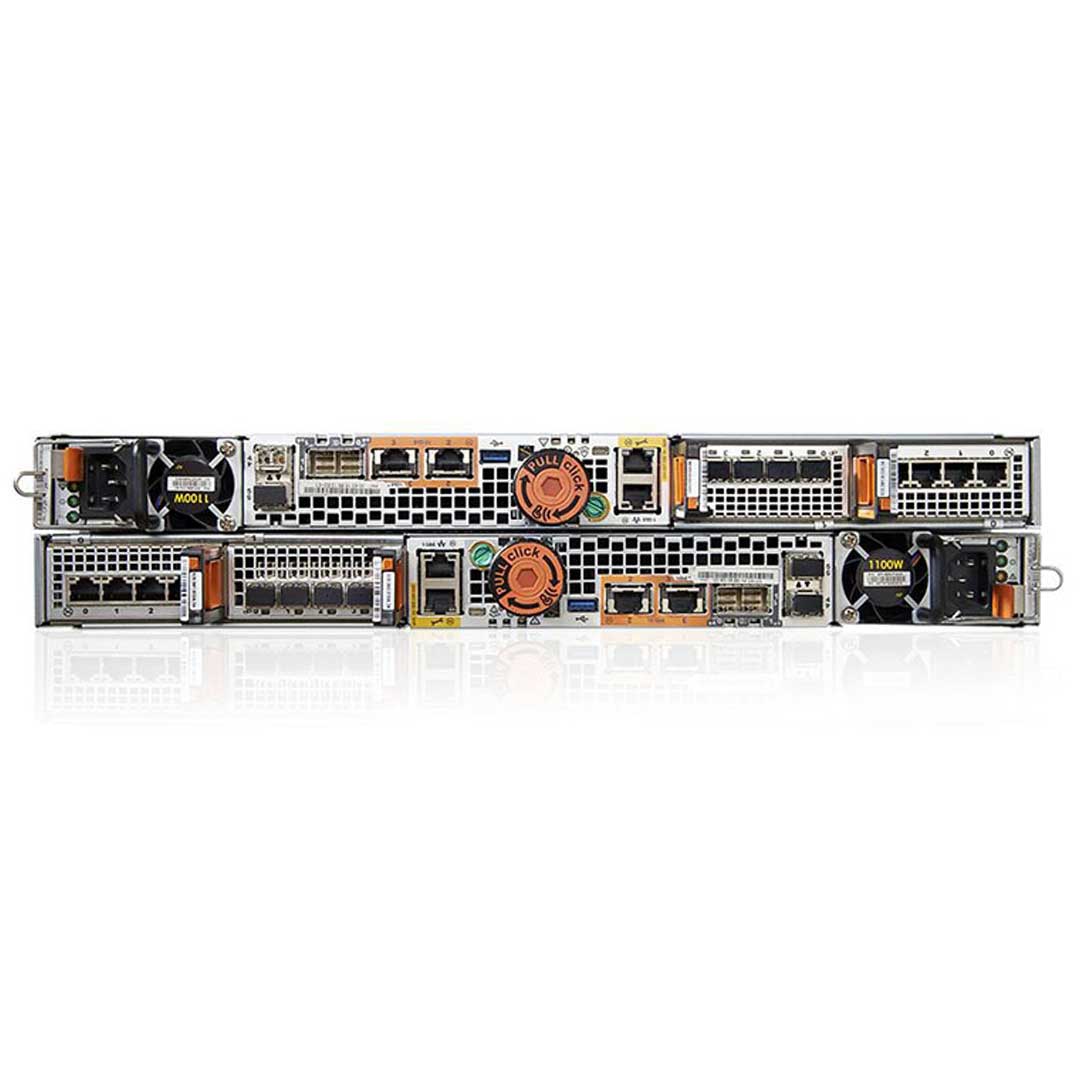

All Hybrid Models support 2 Drive Carrier types. The 12x3.5” and the 25x2.5”. Flash models only support the 25x2.5” Drive Carriers. Each unit has 2 Storage Processors (SP’s) in the rear with 2 CNA ports and 2 Module slots that can hold up to 6 different modules.

The Dell EMC Unity hybrid models are the only ones to support FAST and FAST VP technology which helps with tiered storage and accessibility to high-frequency data.

Storage Processor (SP):

The Dell EMC Unity 300 has 2 Storage Processors.

Each SP comes with:

Intel Xeon E5-2603 6-Core 1.6 GHz processor.
3 8GB DDR4 DIMM for a total of 24GB of memory
2 embedded CNA ports (4 configurations possible)
2 10GbaseT ports
2 mini-HD SAS ports
2 PCI 3.0, x8 lane I/O module slots (6 Modules supported)

I/O Modules:

Each SP has two slots that can support 6 different options.

Four-port 12-Gb/s SAS I/O module
Four-port 16-Gb/s Fibre Channel I/O module
Four-port 10-Gb/s optical I/O module
Four-port 10GBASE-T I/O module
Four-port 1GBASE-T I/O module
Two-port 10Gb/s optical I/O module

Note: When adding new I/O modules, always install I/O modules in pairs—one module in SP A and one module in SP B. Both SPs must have the same type of I/O modules in the same slots. Please read the manual below for more details to each module listed above.

CNA Ports:

Each SP contains two integrated CNA ports (labeled 4 and 5). These ports are PCI Express 3.0 x4 adapters that provide interfaces that can be configured as Ethernet, or Fibre Channel, but once set to a protocol, cannot be changed. If CNA ports are set to Ethernet, you can use 1Gb/s, 10Gb/s SFPs, Twin-AX for File (IP), or iSCSI Block access. If the ports are set to Fibre Channel, then you can use SFPs supporting 4, 8, 16 Gb/s FC multi-mode, or single-mode SFPs supporting 16Gb/s only.

Note: The four CNA ports cannot be configured independently; they must all be configured with the same network protocol.

Standby Power Supply

12 DPE

AC 100 to 240 VAC ± 10%, single phase, 47 to 63 Hz
DC Line Voltage -39 to -72 V DC (Nominal -48V or -60V power systems)

25 DPE

AC 100 to 240 VAC ± 10%, single phase, 47 to 63 Hz
DC Line Voltage -39 to -72 V DC (Nominal -48V or -60V power systems)

Looking to Customize?

Not seeing the exact specs you need?
Start your build today with Express Computer Systems!

Start Customizing Today!

Spec Sheet 4

Dell EMC Unity Hybrid

Dell EMC Unity Hybrid Flash Units
Limit description	Unity 300	Unity 400	Unity 500	Unity 600
CPU type in SP	6-core 1.6 GHz (E5-2603)	8-core 2.4 GHz (E5-2630)	10-core 2.6 GHz (E5-2660)	12-core 2.5 GHz (E5-2680)
Memory per SP	24 GB	48 GB	64 GB	128 GB
Memory per SP	Three 8 GB DDR4 DIMMs	Three 16 GB DDR4 DIMMs	Four 16 GB DDR4 DIMMs	Four 32 GB DDR4 DIMMs
Embedded CNA ports per SP 2 ports, configurable as either:	8/16 Gb Fibre Channel 4/8/16 Gb Fibre Channel 16 Gb Fibre Channel (single mode) 1/10 Gb IP/iSCSI
Embedded 10GbaseT ports per SP	2 ports
Max. SAS I/O ports per SP	2 (2 embedded mini-HD SAS ports)	2 (2 embedded mini-HD SAS ports)	6 (2 embedded and 4 I/O mini-HD SAS ports)	6 (2 embedded and 4 I/O mini-HD SAS ports)
Max. number of I/O modules per SP	2
Supported Back-End I/O modules	None		Four-port 12-Gb/s SAS
Supported Front-End I/O modules	Four-port 16-Gb/s Fibre Channel Four-port 10-Gb/s optical Four-port 10GBASE-T Four-port 1GBASE-T Two-port 10Gb/s optical
Max. number of Front-End ports per SP (all types)	12
Max. number of Front-End Fibre Channel ports per SP (CNA and I/O modules)	10
Max. number of Front-End ports 1GbaseT/iSCSI ports per SP (Onboard, CNA, and I/O modules)	8
Max. number of Front-End ports 10GbE iSCSI ports per SP (Onboard, CNA, and I/O modules)
Min./Max. number of drives	5/150	5/250	5/500	5/1000
Disk-array enclosures types supported	2U 25-drive DAE with 2.5-inch drives 3U 15-drive DAE with 3.5-inch drives 3U 80-drive DAE with 2.5-inch drives
Max. number of DAEs supported per system *a	Up to 1	Up to 15	Up to 33	Up to 59
Max. number of 80-drive DAEs supported per system	1	2	5	12
Max. raw capacity (PB)	2.4	4	8	16
*a. Depending on the DPE and DAE types in the system. Maximum DAE limits shown here use the 12-drive DPE and 15-drive DAE. Higher capacity DPE/DAEs support fewer maximum DAEs.

Dell EMC Unity All Flash

Dell EMC Unity All Flash Units
Limit description	Unity 300F	Unity 350F	Unity 400F	Unity 450F	Unity 500F	Unity 550F	Unity 600F	Unity 650F
CPU type in SP	6-core 1.6 GHz (E5-2603)	6-core 1.7 GHz (E5-2603)	8-core 2.4 GHz (E5-2630)	10-core 2.2 GHz (E5-2630)	10-core 2.6 GHz (E5-2660)	14-core 2.0 GHz (E5-2660)	12-core 2.5 GHz (E5-2680)	14-core 2.4 GHz (E5-2680)
Memory per SP	24 GB	48 GB	48 GB	64 GB	64 GB	128 GB	128 GB	256 GB
Memory per SP	Three 8 GB DDR4 DIMMs	Three 16 GB DDR4 DIMMs	Three 16 GB DDR4 DIMMs	Four 16 GB DDR4 DIMMs	Four 16 GB DDR4 DIMMs	Four 32 GB DDR4 DIMMs	Four 32 GB DDR4 DIMMs	Four 64 GB DDR4 DIMMs
Embedded CNA ports per SP 2 ports, configurable as either:	8/16 Gb Fibre Channel 4/8/16 Gb Fibre Channel 16 Gb Fibre Channel (single mode) 1/10 Gb IP/iSCSI
Embedded 10GbaseT ports per SP	2 ports
Max. SAS I/O ports per SP	2 (2 embedded mini-HD SAS ports)				6 (2 embedded and 4 I/O mini HD SAS ports)
Max. number of I/O modules per SP	2
Supported Back-End I/O modules	None				Four-port 12-Gb/s SAS
Supported Front-End I/O modules	Four-port 16-Gb/s Fibre Channel Four-port 10-Gb/s optical Four-port 10GBASE-T Four-port 1GBASE-T Two-port 10Gb/s optical
Max. number of Front-End ports per SP (all types)	12
Max. number of Front-End Fibre Channel ports per SP (CNA and I/O modules)	10
Max. number of Front-End ports 1GbaseT/iSCSI ports per SP (Onboard, CNA, and I/O modules)	8
Max. number of Front-End ports 10GbE iSCSI ports per SP (Onboard, CNA, and I/O modules)	12
(Dell Unity OE 4.1 and later) Min./Max. number of drives *a	5/150	5/150	5/250	5/250	5/500	5/500	5/1000	5/1000
(Dell Unity OE 4.0 only) Min./Max. number of drives	5/150	N/A	5/250	N/A	5/350	N/A	5/500	N/A
Disk-array enclosures types supported	2U 25-drive DAE with 2.5-inch drives 3U 80-drive DAE with 2.5-inch drives
Max. number of 2U 25-drive DAEs supported	5	5	9	9	19	19	39	39
Max. number of 3U 80-drive DAEs supported	1	1	2	2	5	5	12	12
Max. raw capacity (PB)	2.4	2.4	4	4	8	8	16	16
*a. The minimum number of drives required to create a 4+1 RAID group is five. Four drives are required for starting up the array
