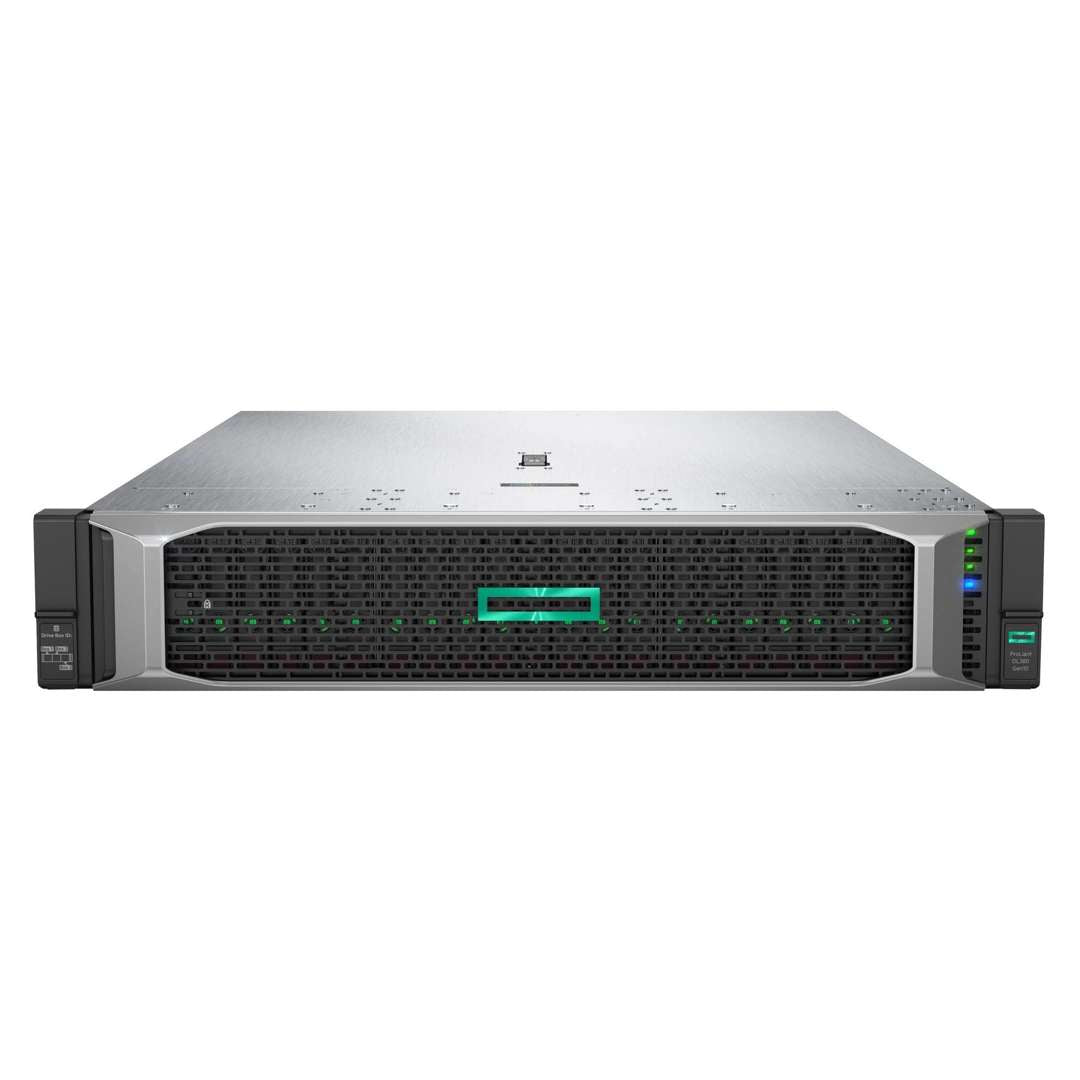

HP 875761-S01 ProLiant DL380 Gen10 server with one Intel Xeon Gold 5115 processor, 1x 16 GB dual rank memory, P408i-a storage controller, Smart Storage Battery to support multiple controllers/devices, eight small form factor drive bays, four standard fans, one 500W Platinum power supply, and a 1 Year NBD ECS Parts Replacement Warranty. Rail kit and cable management arm available upon request.
Included Parts List
| Type | Quantity | Title |
| Chassis | 1 | HPE ProLiant DL380 Gen10 8SFF Server Chassis |
| Processor | 1 | Intel Xeon-Gold 5115 (2.4GHz/10-core/85W) Processor |
| Memory | 1 | HPE 16GB (1x16GB) 2RX4 DDR4-2400 CAS 17-17-17 Registered Memory |
| RAID | 1 | HPE Smart Array P408i-a SR Gen10 (8 Internal Lanes/2GB Cache) 12G SAS Modular Controller |
| PSU | 1 | HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply |
Specifications for 875761-S01
Processor Core Available 10, per processor
Processor Cache Installed L3
Memory Type HPE DDR4 SmartMemory
NVDIMM Type Not applicable
NVDIMM Rank Not applicable
NVDIMM Capacity HPE Persistent Memory featuring Intel® Optane™ DC persistent memory not supported on this processor model
Network Controller 1 Integrated 4 x Gigabit Ethernet
Remote Management Software HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, and HPE OneView Advanced (optional)
System Fan Features 4 single-rotor, standard fans included
Power Supply Type 1 HPE 500W Flex Slot Universal Hot Plug Low Halogen Power Supply Kit
Expansion Slots 3 PCIe 3.0, for detailed descriptions reference the QuickSpecs
Storage Controller 1 HPE Smart Array P408i-a/2GB with Smart Storage Battery and 1 HPE Smart Array S100i
Processor Name Intel® Xeon® Scalable 5115
Processor Number 1
Processor Speed 2.4 GHz
Standard Memory 16 GB (1x 16GB) RDIMM
Hard Drive Number (included) None ship standard, 8 SFF drives supported
Optical Drive Type Optional via Universal Media Bay
Security Optional locking Bezel Kit, Intrusion Detection Kit, and HPE TPM 2.0
Form Factor 2U
Weight (imperial) 32.6 lb
Weight (metric) 14.76 kg
Product Dimensions (imperial) 17.54 x 28.75 x 3.44 in
Product Dimensions (metric) 44.55 x 73.03 x 8.74 cm
