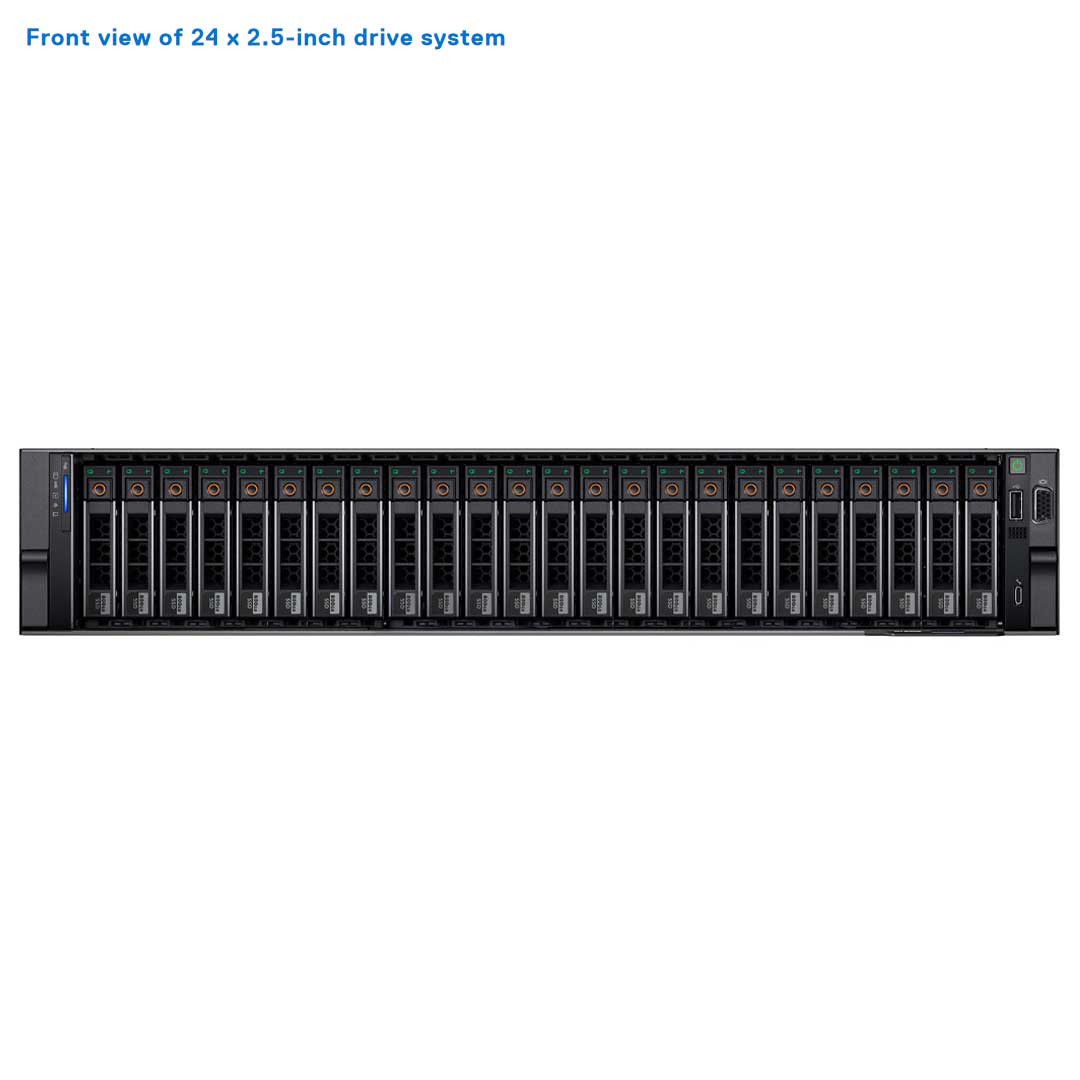

Dell PowerEdge R7625 Rack Server Chassis (24x 2.5")

SKU: DPE-R7625-24SFF-Chassis

Dell PowerEdge R7625 Rack Server Chassis (24x 2.5")

Name: Dell PowerEdge R7625 Rack Server Chassis (24x 2.5")
Brand: Dell CTO
SKU: DPE-R7625-24SFF-Chassis
Availability: InStock

Dell CTO

| Chassis

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

CTO Item

This part is strictly for configuring Dell servers. If you have landed on this page and you're looking for a specific part number. Please send us a "Request a Quote" with the part number you need.

Base Standard Capabilities

Feature	Technical Specifications
Processor	Up to two AMD EPYC 4th Generation 9004 Series with up to 128 cores per processor
Memory	• 24 DDR5 DIMM slots, supports RDIMM 6 TB max, speeds up to 4800 MT/s • Supports registered ECC DDR5 DIMMs only
Storage controllers	• Internal Controllers (RAID): PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB • External HBA (non-RAID): HBA355e • Software RAID: S160
Drive Bays	Front bays: • Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 160 TB • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB • Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB • Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB Rear bays: • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB • Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
Power Supplies	• 2800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant • 2400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant • 1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant • 1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant • 1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant • 1100 W LVDC -48 — -60 VDC, hot swap redundant • 800 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
Cooling Options	• Air cooling • Optional Direct Liquid Cooling (DLC) Note: DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate.
Fans	• High performance Silver (HPR) fans/ High performance Gold (VHP) fans • Up to 6 hot plug fans
Dimensions	• Height – 86.8 mm (3.41 inches) • Width – 482 mm (18.97 inches) • Depth – 772.13 mm (30.39 inches) with bezel 758.29 mm (29.85 inches) without bezel
Form Factor	2U rack server
Embedded Management	• iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module • Quick Sync 2 wireless module
Bezel	Optional LCD bezel or security bezel
OpenManage Software	• CloudIQ for PowerEdge plug in • OpenManage Enterprise • OpenManage Enterprise Integration for VMware vCenter • OpenManage Integration for Microsoft System Center • OpenManage Integration with Windows Admin Center • OpenManage Power Manager plugin • OpenManage SupportAssist plugin • OpenManage Update Manager plugin
Mobility	OpenManage Mobile
OpenManage Integrations	• BMC Truesight • Microsoft System Center • OpenManage Integration with ServiceNow • Red Hat Ansible Modules • Terraform Providers • VMware vCenter and vRealize Operations Manager
Security	• AMD Secure Memory Encryption (SME) • AMD Secure Encrypted Virtualization (SEV) • Cryptographically signed firmware • Data at Rest Encryption (SEDs with local or external key mgmt) • Secure Boot • Secured Component Verification (Hardware integrity check) • Secure Erase • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC	2 x 1GbE LOM card (optional)
Network Options	1 x OCP card 3.0 (optional) Note: The system allows either LOM card or an OCP card or both to be installed in the system.
GPU Options	Up to 2 x 300 W DW or 6 x 75 W SW

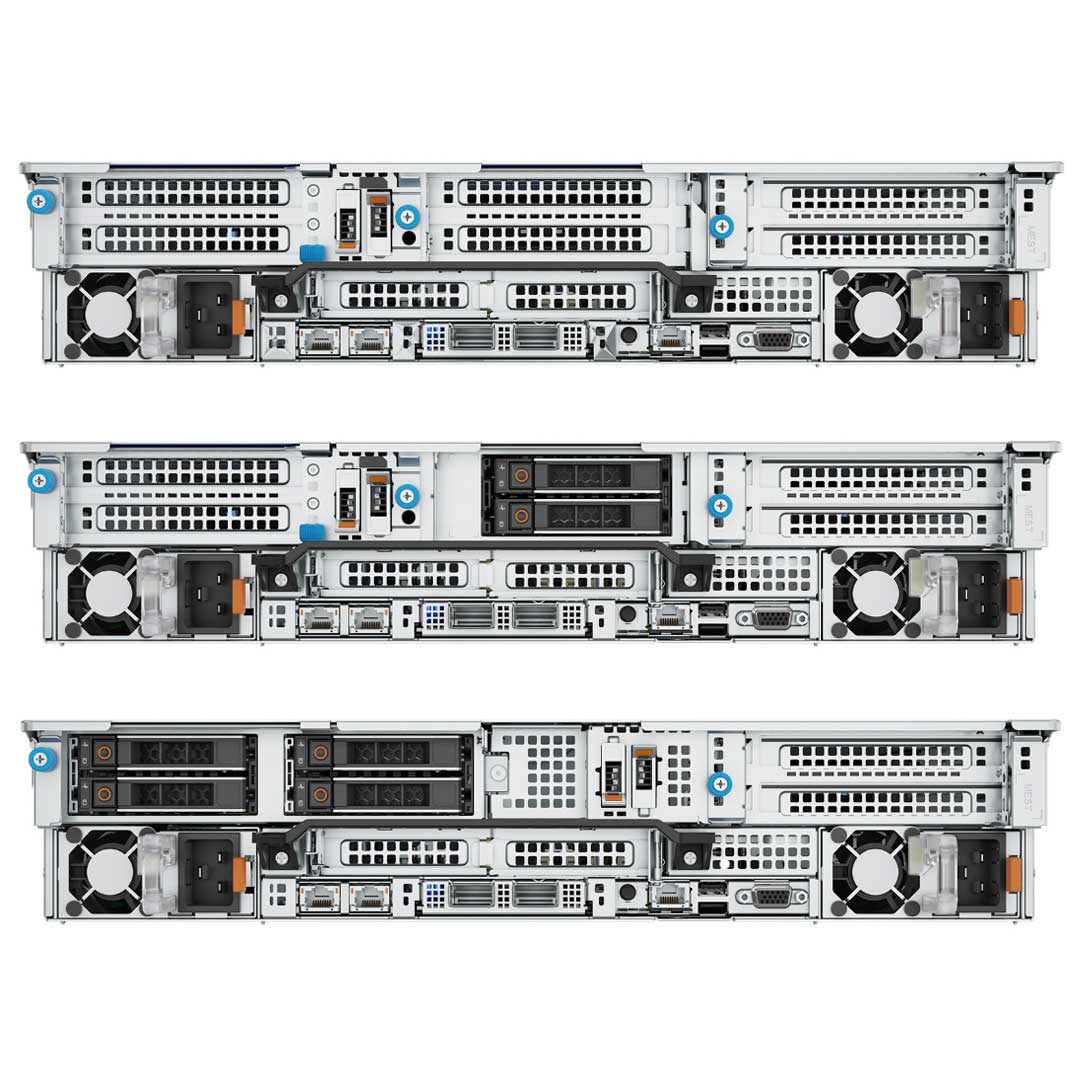

Ports	Front Ports • 1 x iDRAC Direct (Micro-AB USB) port • 1 x USB 2.0 • 1 x VGA	Rear Ports • 1 x Dedicated iDRAC ethernet port • 1 x USB 2.0 • 1 x USB 3.0 • 1 x Serial (optional) • 1 x VGA (optional for Direct Liquid Cooling configuration)
Ports	Internal Ports • 1 x USB 3.0 (optional)
PCIe	Up to eight PCIe slots: • Slot 1: 1 x8 Gen5 or 1 x8 Gen4 Full height, Half length • Slot 2: 1 x8/1 x16 Gen5 or 1 x8 Gen4 Full height, Half length or 1 x16 Gen5 Full height Full length • Slot 3: 1 x16 Gen4 Low profile, Half length • Slot 4: 1 x8 Gen4 Full height, Half length • Slot 5: 1 x8 Gen4 Full height, Half length or 1 x16 Gen4 Full height , Full length • Slot 6: 1 x16 Gen4 Low profile, Half length • Slot 7: 1 x8/1 x16 Gen5 or 1 x8 Gen4 Full height, Half length or 1 x16 Gen5 Full height, Full length • Slot 8: 1 x8 Gen5 or 1 x8 Gen4 Full height, Half length
Operating System and Hypervisors	• Canonical Ubuntu Server LTS • Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi

Specs 1

Rack Server	R760	R660	R7625	R6625	R7615	R6615
Key attributes	Provides performance and versatility for demanding applications	Provides performance and versatility for demanding applications	Breakthrough performance	Breakthrough performance	Powerful performance and scalability	Peak performance and excellent TCO
Target workloads	Mixed Workload Standardization Database and Analytics Virtual Desktop Infrastructure	High Density Virtualization, Dense Database Analytics, Mixed Workload Standardization	High Performance Computing (HPC), Virtual Desktop Infrastructure (VDI), Virtualization	High Performance Computing (HPC), Virtual Desktop Infrastructure (VDI), Virtualization	Software-Defined Storage (SDS), Virtualization, Data Analytics	Virtualization, Hyper-Converged Infrastructure (HCI), Network Functions Virtualization (NFV)
Type of processor	2 x 4th Generation Intel® Xeon® Scalable processors; up to 56 cores per processor		2 x AMD EPYC™ 4th Generation 9004 Series Processor, up to 96 cores per processor		1 x AMD EPYC™ 4th Generation 9004 series processor; up to 96 cores
Memory (DDR5 DIMM slots & max)	32 (8 TB)		24 (1.5 TB*)		12 (768 GB*)
Disk drives up to:	12 x 3.5” 8 x 2.5” 16 x 2.5” 24 x 2.5” 2 x 2.5” or 4 x 2.5” (rear)	8 x 2.5” 10 x 2.5” 2 x 2.5” (rear)	8 x 3.5” 12 x 3.5” 8 x 2.5” 16 x 2.5” 24 x 2.5” 2 x 2.5” or 4 x 2.5”(rear)	4 x 3.5” 8 x 2.5” 10 x 2.5” 2 x 2.5” (rear)	8 x 3.5” 12 x 3.5” 8 x 2.5” 16 x 2.5” 24 x 2.5” 2 x 2.5” or 4 x 2.5”(rear)	4 x 3.5” 8 x 2.5” 10 x 2.5” 2 x 2.5” (rear)
NVMe drives up to:	24	10	24	10	24	10
Gen5 PCIe slots up to:	4	2	4	2	4	2
Gen4 PCIe slots up to:	8	3	8	3	4	3
Accelerator support up to:	2 x 350 W DW or 6 x 75 W SW	2** x 75 W SW	2 x 300 W DW or 6 x 75 W SW	3 x 75 W SW	3 x 300 W DW or 6 x 75 W SW	3 x 75 W SW
Rack height (U)	2	1	2	1	2	1
Integrated security	TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ, Cryptographically Signed Firmware, Chassis Intrusion Alert, Secure Boot being standard security, Silicon Root of Trust, System Lockdown (requires iDRAC9 Enterprise or Datacenter), Data at Rest Encryption (SEDs with local or external key mgmt) Secured Component Verification (Hardware integrity check) and System Erase on all racks.			TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ, Cryptographically Signed Firmware, Secure Boot, Secure Erase, Silicon Root of Trust, System Lockdown (requires iDRAC9 Enterprise or Datacenter), AMD Secure Memory Encryption (SME) and AMD Secure Encrypted Virtualization (SEV)
* Future releases will include additional system capacity for DDR5 memory in R7625, R6625, R7615 and R6615. ** Future releases will include additional GPU slots in R660.

Spec Sheet 4

Features	PowerEdge R7625		PowerEdge R7525
Processors	Two AMD® EPYC™ 4th Generation 9004 series processors		Two AMD® EPYC™ Generation 2 or Generation 3 processors
CPU interconnect	Inter-chip global memory interconnect (xGMI) 32GT/sec		Inter-chip global memory interconnect (xGMI) 16GT/sec
Memory	24 x DDR5 RDIMM (6 TB), bandwidth up to 4800 MT/S		32 x DDR4 RDIMM (2TB), LRDIMM (4TB), bandwidth up to 3200 MT/S
Storage Controllers	● PERC 11: HBA355i, H355, H755, H755N ● PERC 12: H965i ● Software RAID: S160 ● BOSS-N1/td>		● Adapters: HBA355E, H840 ● PERC: H345, H745, H755, H755N ● Software RAID: S150
Drive Bays	Front bays: ● Up to 8 x 3.5-inch SAS4/SATA (HDD/SSD) max 160 TB ● Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB ● Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB ● Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB ● Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB Rear bay: ● Up to 2 x 2.5-inch SAS4/SATA/NVMe (HDD/SSD) max 30.72 TB ● Up to 4 x 2.5-inch SAS4/SATA/NVMe (HDD/SSD) max 61.44 TB		Front bays: ● 3.5 inches, 2.5 inches - 12 Gb SAS, 6 Gb SATA, NVMe HDD
Power Supplies	● Mixed Mode (MM) AC/HVDC (Platinum) 800 W, 1400 W, 2400 W ● Mixed Mode (MM) AC/HVDC (Titanium) 1100 W, 1800 W, 2800 W ● (-48 V) 1100 W DC PSU		● Mixed Mode (MM) AC/HVDC (Platinum) 800 W, 1400 W, 2400 W ● Titanium 1100 W Mixed Mode AC/HVDC, (-48 V) 1100 W DC PSU
Cooling Options	● Air Cooling ● Optional Direct Liquid Cooling (DLC)		● Air Cooling
Fans	Up to six High performance Silver / High Performance Gold hot plug fans		Up to six Standard (STD) / High performance (HPR) / Very High Performance (VHP) hot plug fans
Dimension	● Height: 86.8 mm (3.41 inches) ● Width: 482 mm (18.97 inches) ● Depth: 772.13 mm (30.39 inches) with bezel ● Depth: 758.29 mm (29.85 inches) without bezel		● Height: 86.8 mm (3.41 inches) ● Width: 482 mm (18.97 inches) ● Depth: 772.13 mm (30.39 inches) with bezel ● Depth: 758.29 mm (29.85 inches) without bezel
Form Factor	2U rack server		2U rack server
Embedded Management	● iDRAC9 ● iDRAC Direct ● iDRAC RESTful with Redfish ● iDRAC Service Manual ● Quick Sync 2 wireless module		● iDRAC9 ● iDRAC Direct ● iDRAC Service Module ● Quick Sync 2 wireless module
Bezel	Optional LCD bezel or security beze		Optional LCD bezel or security bezel
OpenManage Software	● OpenManage Enterprise ● OpenManage Power Manager plugin ● OpenManage SupportAssist plugin ● OpenManage Update Manager plugin ● CloudIQ for PowerEdge plug in ● OpenManage Enterprise Integration for VMware vCenter ● OpenManage Integration for Microsoft System Center ● OpenManage Integration with Windows Admin Center		● OpenManage Enterprise ● OpenManage Power Center
Mobility	OpenManage Mobile		OpenManage Mobile
OpenManage Integrations	● BMC TrueSight ● Microsoft System Center ● OpenManage Integration with ServiceNow ● Red Hat Ansible Modules ● Terraform Providers ● VMware vCenter and vRealize Operations Manager		● BMC TrueSight ● Microsoft System Center ● Red Hat Ansible Modules ● VMware vCenter
Security	● Cryptographically signed firmware ● Data at Rest Encryption (SEDs with local or external key mgmt) ● Secure Boot ● Secure Erase ● Secured Component Verification (Hardware integrity check) ● Silicon Root of Trust ● System Lockdown (requires iDRAC9 Enterprise or Datacenter) ● TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ ● AMD Secure Memory Encryption (SME) ● AMD Secure Encrypted Virtualization (SEV)		● Cryptographically signed firmware ● Secure Boot ● Secure Erase ● Silicon Root of Trust ● System Lockdown (requires iDRAC9 Enterprise or Datacenter) ● TPM 1.2/2.0 (optional), TCM 2.0 optional ● AMD Secure Memory Encryption (SME) ● AMD Secure Encrypted Virtualization (SEV)
Embedded NIC	2 x 1GbE LOM card (optional)		2 x 1GE LOM
Networking Options	1 x OCP card 3.0 (optional) NOTE: The system allows either LOM card or an OCP card or both to be installed in the system		OCP x16 Mezz 3.0
GPU Options	Up to two double wide 300W, or six single wide 75W accelerators		Up to three double wide 300W or six single wide 75W accelerators
Ports	Front Ports ● 1 x Dedicated iDRAC (micro-USB USB) port ● 1 x USB 2.0 ● 1 x VGA	Rear Ports ● 1 x USB 2.0 ● 1 x iDRAC ethernet port ● 1 x USB 3.0 ● 1 x Serial port (optional) ● 1 x VGA (optional for Direct Liquid Cooling configuration)	Front Ports ● 1 x Dedicated iDRAC micro-USB ● 1 x USB 2.0	Rear Ports ● 1 x USB 2.0 ● 1 x iDRAC Direct/ethernet port ● 1 x USB 3.0 ● 1 x Serial port (optioanl) ● 1 x VGA
Ports	Internal Port: 1 x USB 3.0		Internal Port: 1 x USB 3.0
PCIe	Up to eight PCIe slots ● 4 x PCIe Gen5 slots ● 8 x PCIe Gen4 slots		8 x PCIe Gen4 slots
Operating System and Hypervisors	● Canonical Ubuntu Server LTS ● Microsoft Windows Server with Hyper-V ● Red Hat Enterprise Linux ● SUSE Linux Enterprise Server ● VMware ESXi		● Canonical Ubuntu Server LTS ● Citrix Hypervisor ● Windows Server LTSC with Hyper-V ● Red Hat Enterprise Linux ● SUSE Linux Enterprise Server ● VMware ESXi
