Specs
Quick Specs
Form Factor:
1U rack server
Processor | Max: 28 Cores2 x 2nd Gen Intel Xeon Scalable
Memory | Max: 3TB24x ECC DDR4 RDIMM/LRDIMM 2933Mhz
NV Memory | Max: 192GBSupports up to 12 NVDIMM
Pmem Memory | Max: 6.14TBSupports up to 12 Intel Optane
NIC/LOM:4 x 1GbE
2 x 10GbE + 2 x 1GbE
4 x 10GbE
2 x 25GbE

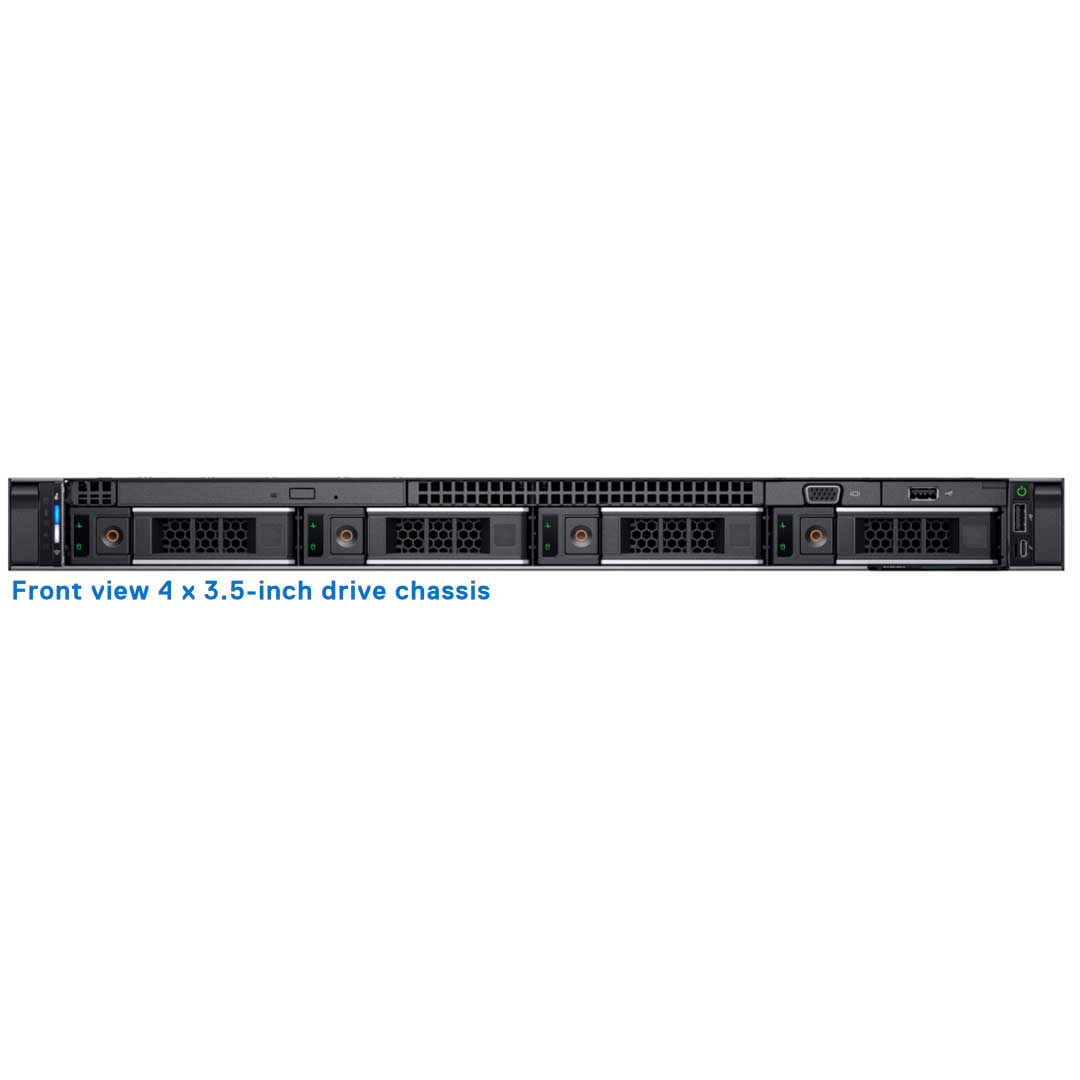

4x 3.5" SAS/NL-SAS/SATA (HDD/SSD)
Rear Drives | Max: 15.36TB2x 2.5" SAS/SATA (HDD/SSD) NVMe
RAID Controller:S140-SATA, NVMe (SW RAID) SATA, NVMe
H330, HBA330, HBA350i, H730P, H740P, H750
H840, HBA355e, 12 Gbps SAS HBA
3x PCIe 3.0 plus a dedicated PERC and rNDC slot
GPU:Up to 3 single-width GPU (NVIDIA T4) or up to 1 FPGA
Boot Options:BOSS-S1
IDSDM w/ vFlash
iDRAC9 with Lifecycle Controller
Ideal for:
- Cloud Servers
- High-Performance Computing (HPC)
- Virtualization

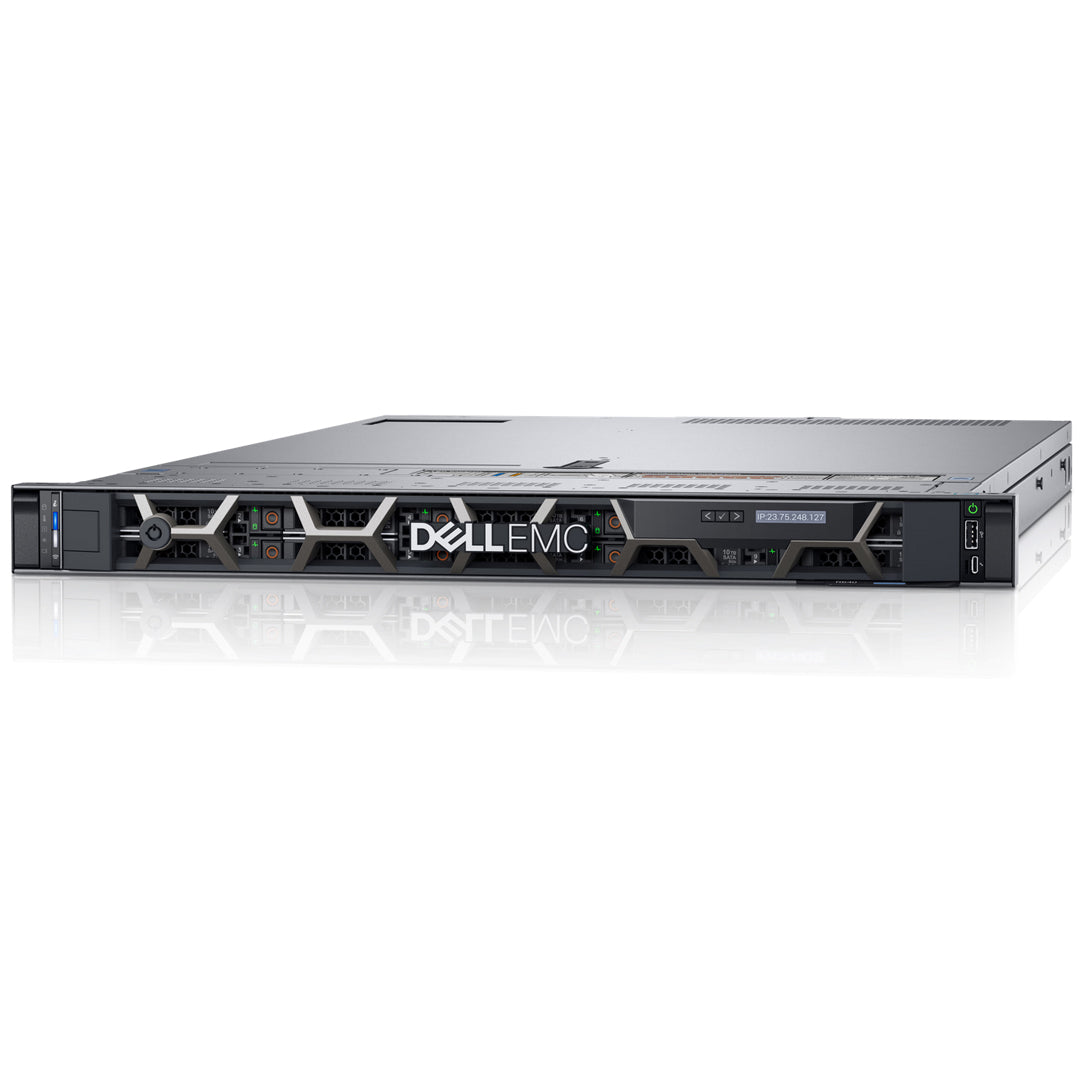

Dell EMC PowerEdge R640
The scalable business architecture of the Dell EMC PowerEdge R640 is designed to maximize application performance and provide the flexibility to optimize configurations based on the application and use case. With the Dell EMC PowerEdge R640 you can create an NVMe cache pool and use either 2.5” or 3.5” drives for data storage. Combined with up to 24 DIMM’s, 12 of which can be DCPMMs or NVDIMMs, you have the resources to maximize application performance with the optimum configuration in only a 1U chassis.
- Simplify deployments and speed deployments with Dell EMC ready nodes for ScaleIO and VSAN.
- Maximize storage performance with up to 10 NVMe drives or 12 2.5” drives.
- Scale compute resources with 2nd Generation Intel Xeon Scalable processors and tailor performance based on your unique workload requirements.
Guard your data center with built-in security
Every PowerEdge server is designed as part of a cyber-resilient architecture, integrating security into the full server lifecycle. The R640 leverages new security features built into every new PowerEdge server strengthening protection so you can reliably and securely deliver accurate data to your customers no matter where they are. By considering each aspect of system security, from design to retirement, Dell EMC ensures trust and delivers a worry-free, secure infrastructure without compromise.
- Rely on a secure component supply chain to ensure protection from the factory to the data center.
- Maintain data safety with cryptographically signed firmware packages and Secure Boot.
- Protect your server from malicious malware with iDRAC9 Server Lockdown mode (requires Enterprise or Datacenter license).
- Wipe all data from storage media including hard drives, SSDs and system memory quickly and securely with System Erase.
Automate maintenance with Dell EMC OpenManage
The Dell EMC OpenManage portfolio helps deliver peak efficiency for PowerEdge servers, delivering intelligent, automated management of routine tasks. Combined with unique agent-free management capabilities, the Dell EMC PowerEdge R640 is simply managed, freeing up time for high-profile projects.
- Simplify management with the OpenManage Enterprise console, with customized reporting and automatic discovery.
- Take advantage of QuickSync 2 capabilities and gain access to your servers easily through your phone or tablet.
Uncompromising performance and density for data center productivity and scale
The Dell EMC PowerEdge R640 is the ideal dual-socket platform for dense scale-out data center computing and storage. Benefit from the flexibility of 2.5” or 3.5” drives, the performance of NVMe and embedded intelligence to ensure optimized application performance in a secure platform. With embedded diagnostics and SupportAssist, the Dell PowerEdge R640 delivers maximum uptime in a worry-free environment.
Drive transformation with the Dell EMC PowerEdge portfolio
Data center evolution starts with modern platforms that easily scale and are optimized for application performance. The Dell EMC PowerEdge R640 is built upon a scalable system architecture and provides the choice and flexibility to easily meet performance demands.
- Simplify deployment and easily scale from 3 to 1000+ nodes for software-defined storage with Dell EMC Ready Nodes.
- Maximize performance with up to 10 NVMe drives and 24 DIMMs, 12 of which can be DCPMMs or NVDIMMs
- Scale compute resources with 2nd Generation Intel Xeon Scalable processors, and tailor performance based on your unique workload requirements.
Looking to Customize?
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
Base Standard Capabilities
| Features | Technical specification | |
|---|---|---|
| Processor | Up to two 2nd Generation Intel® Xeon® Scalable processors, up to 28 cores per processor | |
| Memory | 24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2933 MT/s, 3TB max Up to 12 NVDIMM, 192 GB Max Up to 12 Intel® Optane™ persistent memory PMem, 6.14TB max, (7.68TB max with PMem + LRDIMM) Supports registered ECC DDR4 DIMMs only | |
| Storage controllers | Internal Controllers: PERC H330, HBA330, HBA350i (adapter only), H730P, H740P, H750 (adapter only) External Controllers: H840, 12 Gbps SAS HBA, HBA355e (adapter only, non-RAID) Software RAID: S140 Boot Optimized Storage Subsystem (BOSS): HWRAID 2 x M.2 SSDs 240 GB, 480 GB Internal Dual SD Module | |
| Drive bays | Front drive bays: Up to 10 x 2.5” SAS/SATA (HDD/SSD) with up to 8 NVMe SSD max 76.8TB or up to 10 NVMe drives max 64TB, or up to 4 x 3.5” SAS/SATA HDD max 64TB Rear drive bays: Up to 2 x 2.5” SAS/SATA (HDD/SSD), NVMe SSD max 15.36TB Optional DVD-ROM, DVD+RW | |
| Power supplies | 495W Platinum 750W Platinum 1100W 48VDC 1100W Platinum 1600W Platinum 750W Titanium Hot plug power supplies with full redundancy option Up to 8 hot plugs fans with full redundancy | |
| Dimensions | Form factor: Rack (1U) Height: 42.8mm (1.69”) Width*: 482.0mm (18.98”) Depth*: 808.5mm (31.8”) Weight: 21.9kg (48.3 lbs.) *Dimensions include bezel. | |
| Embedded management | iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish Quick Sync 2 wireless module (optional) | |
| Bezel | Optional LCD bezel or security bezel | |
| OpenManage Software | OpenManage Enterprise OpenManage Mobile OpenManage Power Center | |
| Integrations and connections | Integrations: Microsoft System Center VMware vCenter BMC Software Red Hat Ansible Modules | Connections: IBM Tivoli® Netcool/OMNIbus IBM Tivoli® Network Manager IP Edition Micro Focus® Operations Manager I Nagios® Core Nagios® XI |
| Security | TPM 1.2/2.0 optional Cryptographically signed firmware Secure Boot Silicon Root of Trust Secure erase System Lockdown (requires iDRAC Enterprise or Datacenter) | |
| I/O & Ports | Network Options:

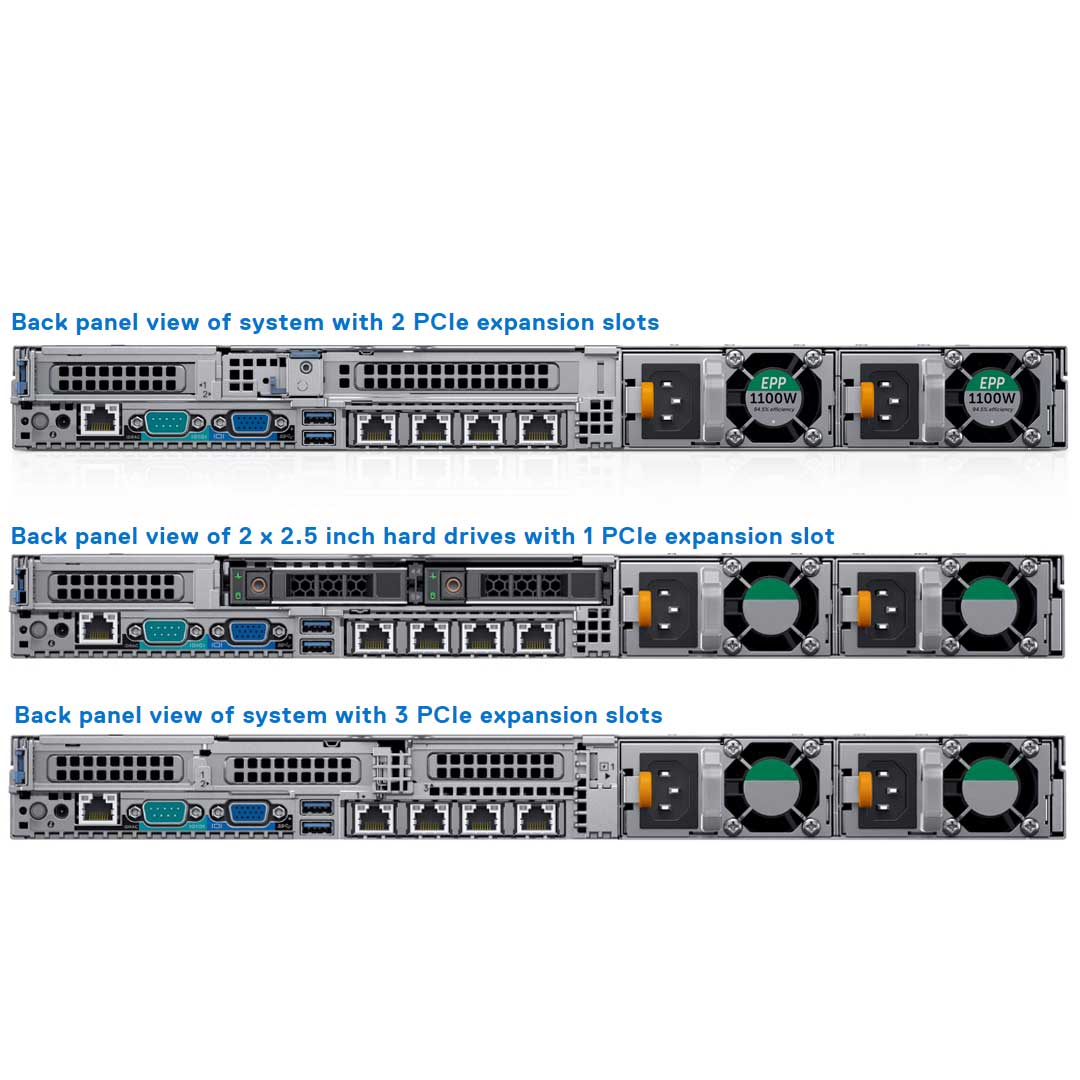

| Rear Ports:
|
| Accelerator options | Up to 3 single-width GPU (NVIDIA T4) or up to 1 FPGA | |
| Supported operating systems | Canonical® Ubuntu® LTS Citrix® XenServer Microsoft Windows Server® LTSC with Hyper-V Red Hat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi | |
