Home / 2.4GHz / HPE ProLiant DL580 (G10) Performance Server 8260 2.4GHz 24 Core 4P 512GB-R P408I-P 8SFF 4X1600W RPS | P05671-B21
SKU: P05671-B21

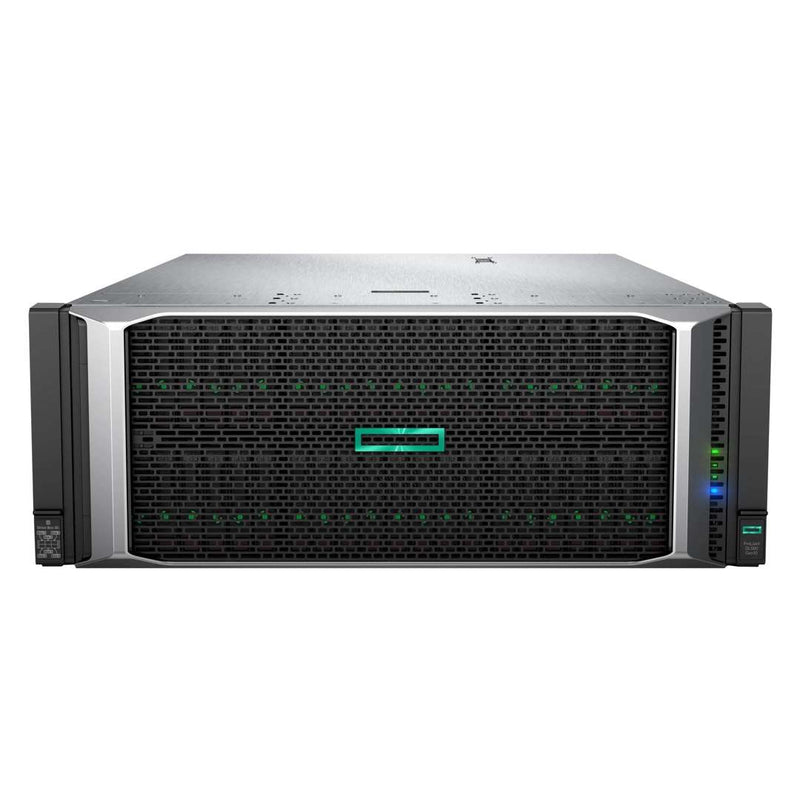

HPE ProLiant DL580 (G10) Performance Server 8260 2.4GHz 24 Core 4P 512GB-R P408I-P 8SFF 4X1600W RPS | P05671-B21

HPE

| Server
Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Quick Specs

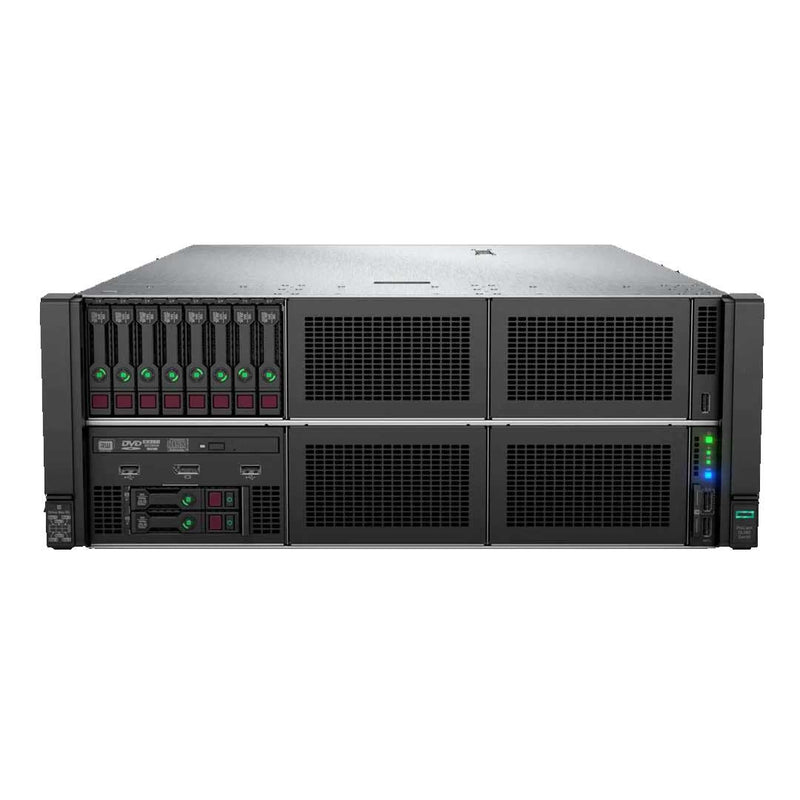

  • Server Model: HPE DL580 Gen10 8x 2.5"
  • Processors: 1x Intel Xeon Platinum 8260 (2.40GHz/24-Core/165W) Processor
  • Heatsinks: 4x heatsinks installed
  • RAID Controller: HP Smart Array P408i-P SR Gen10 12G PCIe RAID Controller with Battery
  • Memory: 512GB DDR4-2933 – 16x HPE 32GB (1x32GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit
  • Power Supplies: 4x 1600W Redundant Power Supplies
  • Rail Kit: Included
  • Drives: Not included

Warranty:

  • Refurbished 1 year warranty advanced parts replacement
Looking to Customize?

Not seeing the exact specs you need?
Start your build today with Express Computer Systems!

Start Customizing Today!

Base Standard Capabilities

Technical specificationsHPE ProLiant DL580 Gen10 server
Processor nameIntel® Xeon® Scalable processors
Processor familyIntel® Xeon® Scalable 8200 series Intel® Xeon® Scalable 6200 series Intel® Xeon® Scalable 5200 series Intel® Xeon® Scalable 8100 series Intel® Xeon® Scalable 6100 series Intel® Xeon® Scalable 5100 series
Processor core available28 or 26 or 24 or 22 or 20 or 18 or 16 or 14 or 12 or 10 or 8 or 6 or 4, per processor, depending on model
Processor speed3.6 GHz, maximum depending on processor
Processor cache13.75 MB L3 or 16.50 MB L3 or 19.25 MB L3 or 22.00 MB L3 or 24.75 MB L3 or 27.50 MB L3 or 30.25 MB L3 or 33.00 MB L3 or 35.75 MB L3 or 38.50 MB L3, per processor, depending on model
Expansion slots16 maximum, for detailed descriptions reference the QuickSpecs
Maximum memory6.0 TB with 128 GB DDR4, depending on processor model
12.0 TB with 512 GB Persistent Memory, depending on processor model
Memory, standard6.0 TB (48 X 128 GB) LRDIMM;
12.0 TB (24 X 512 GB) Intel® Optane™ persistent memory 100 series for HPE
Memory slots48 DIMM slots maximum
Memory typeHPE DDR4 SmartMemory and Intel® Optane™ persistent memory 100 series for HPE
System fan features12 (11+1) Hot plug redundant standard
Network controllerOptional FlexibleLOM
Storage controllerHPE Smart Array S100i or HPE Smart Array Controllers, depending on model
Product Dimensions (imperial)6.88 x 17.54 x 29.60 in
Weight114 lb
Infrastructure managementHPE iLO Standard with Intelligent Provisioning (embedded) and HPE OneView Standard (requires download) are included Optional: HPE iLO Advanced, HPE iLO Advanced Premium Security Edition and HPE OneView Advanced (optional require licenses)
Drive supported48 maximum

Specs 1

3

Chipset
Intel C621 chipset
On compute management chipset
HPE iLO 5 ASIC
Memory 2
DIMM Slots Available: 48
(12 DIMM slots per processor, 6 channels per processor, 2 DIMMs per channel)
Type:

  • SmartMemory Registered Dual In-Line Memory Module (RDIMM)

  • Load Reduced Dual In-Line Memory Module (LRDIMM)

Type
Maximum capacity
With 2nd generation processors
LRDIMM
3TB (24 x 128GB LRDIMM @2933 MT/s 1DPC)
6TB (48 x 128GB LRDIMM @ 2666 MT/s 2 DPC)
RDIMM
1.5TB (24 x 64GB RDIMM @ 2933 MT/s 1 DPC)
3TB (48 x 64GB RDIMM @ 2666 MT/s 2 DPC)
Non-Volatile Dual In-Line Memory Module (NVDIMM)
Not supported
With 1st generation processors
LRDIMM
6TB (48 x 128GB LRDIMM @ 2666 MT/s)
RDIMM
1.5TB (48 x 32GB RDIMM @ 2666 MT/s)
NVDIMM
384GB (24 x 16GB NVDIMM @ 2666 MT/s)
Expansion slots 3
Primary 6-slot riser (Optional)
Expansion Slots
Technology
Bus/Connector Width
Form Factor/Connector
Notes
2
PCIe 3.0
x 16
Full length/full height
Processor 3
3
PCIe 3.0
x 8
Full length/full height
Processor 3
4
PCIe 3.0
x 16
Full length/full height
Processor 3
5
PCIe 3.0
x 8
¾ length/full height
Processor 1
6
PCIe 3.0
x 8
¾ length/full height
Processor 1
7
PCIe 3.0
x 8
¾ length/full height
Processor 1
None (J4)
NVMe
x 8
Slimline
Processor 1
None (J3)
NVMe
x 8
Slimline
Processor 3
Primary 7-slot riser (Optional)
Expansion Slots
Technology
Bus/Connector Width
Form Factor/Connector
Notes
1
PCIe 3.0
x 8
Full length/full height
Processor 3
2
PCIe 3.0
x 16
Full length/full height
Processor 3
3
PCIe 3.0
x 8
Full length/full height
Processor 3
4
PCIe 3.0
x 16
Full length/full height
Processor 3
5
PCIe 3.0
x 8
¾ length/full height
Processor 1
6
PCIe 3.0
x 16
¾ length/full height
Processor 1
7
PCIe 3.0
x 8
¾ length/full height
Processor 1
Secondary and tertiary 8-slot riser (Optional)
Expansion Slots
Technology
Bus/Connector Width
Form Factor/Connector
Notes
9
PCIe 3.0
x 16
Full length/full height
Processor 4
10
PCIe 3.0
x 8
Full length/full height
Processor 4
11
PCIe 3.0
x 16
Full length/full height
Processor 4
12
PCIe 3.0
x 8
¾ length/full height
Processor 2
13
PCIe 3.0
x 8
¾ length/full height
Processor 2
14
PCIe 3.0
x 8
¾ length/full height
Processor 2
15
PCIe 3.0
x 8
¾ length/full height
Processor 2
16
PCIe 3.0
x 8
¾ length/full height
Processor 2
None (J4)
NVMe
x 8
Slimline
Processor 2
None (J3)
NVMe
x 8
Slimline
Processor 4
Secondary and tertiary 9-slot riser (Optional)
Expansion Slots
Technology
Bus/Connector Width
Form Factor/Connector
Notes
8
PCIe 3.0
x 8
Full length/full height
Processor 4
9
PCIe 3.0
x 16
Full length/full height
Processor 4
10
PCIe 3.0
x 8
Full length/full height
Processor 4
11
PCIe 3.0
x 16
Full length/full height
Processor 4
12
PCIe 3.0
x 8
¾ length/full height
Processor 2
13
PCIe 3.0
x 16
¾ length/full height
Processor 2
14
PCIe 3.0
x 8
¾ length/full height
Processor 2
15
PCIe 3.0
x 8
¾ length/full height
Processor 2
16
PCIe 3.0
x 8
¾ length/full height
Processor 2
Primary NVMe slimline riser (Optional) (Includes the 4-port NVMe mezzanine card)
Expansion Slots
Technology
Bus/Connector Width
Form Factor/Connector
Notes
None (J4)
NVMe
x 8
Slimline
Processor 1
None (J5)
NVMe
x 8
Slimline
Processor 1
None (J6)
NVMe
x 8
Slimline
Processor 1
None (J8)
NVMe
x 8
Slimline
Processor 1
4-Port NVMe mezzanine card
Expansion Slots
Technology
Bus/Connector Width
Form Fxactor/Connector
Notes
None
NVMe
x 8
Slimline
Processor 3
None
NVMe
x 8
Slimline
Processor 3
None
NVMe
x 8
Slimline
Processor 3
None
NVMe
x 8
Slimline
Processor 3
Network controller
Model
Adapter
Entry model
HPE Ethernet 1Gb 4-port 331FLR adapter
Base model
HPE FlexFabric 10Gb 2-port 535FLR-T adapter
Performance model
HPE FlexFabric 10/25 Gb 2-port 640FLR-SFP28 adapter
Storage controllers 4

  • Software RAID

  • HPE Smart Array S100i SR Gen10 SW RAID

Essential RAID

  • HPE Smart Array E208i-p SR Gen10 controller

  • HPE Smart Array E208e-p SR Gen10 controller

Performance RAID

  • HPE Smart Array P408i-p SR Gen10 controller

  • HPE Smart Array P408e-p SR Gen10 controller

  • HPE Smart Array P824i-p MR Gen10 controller

Internal storage devices

  • Optical Drive (Optional): DVD-ROM, DVD-RW

  • Hard Drives: None ship standard

  • Hard drive bays: 8 Hot-Plug SFF SAS/SATA HDD bay in entry, Base and performance models. Optional 8 NVMe SSD

  • Express bay enablement kit

  • Optional premium 6SFF and 2 NVMe or 8SFF bay kit

Maximum internal storage
Drive
Capacity
Configuration
Hot Plug SFF SATA HDD
96TB
48 x 2TB
Hot Plug SFF SAS HDD
115.2TB
48 x 2.4TB
Hot Plug SFF SATA SSD
368.6TB
48 x 7.68TB
Hot Plug SFF SAS SSD
734TB
48 x 15.3TB
SFF NVMe SSD
307.2TB
20 x 15.36TB
Power supply

  • HPE 800 W flex slot platinum hot-plug low halogen power supply kit

  • HPE 1600 W flex slot platinum hot-plug low halogen power supply kit

Industry standard compliance

  • ACPI 6.1 Compliant

  • PCIe 3.0 Compliant

  • WOL Support

  • Microsoft logo certifications

  • PXE Support

  • USB 3.0 Compliant (Internal)

  • USB 2.0 Compliant

  • SMBIOS 3.1

  • UEFI 2.6

  • Redfish API

Embedded management

  • HPE Integrated Lights-Out (HPE iLO)

  • Unified Extensible Firmware Interface (UEFI)

  • Intelligent provisioning

  • iLO RESTful API

Server utilities

  • Active Health System (AHS)

  • AHS Viewer

  • Smart update

  • iLO Amplifier Pack

  • HPE iLO Mobile application

  • RESTful Interface Tool (iLOREST)

  • Scripting tools

  • HPE OneView standard

  • HPE Systems Insight Manager (HPE SIM)

Security 5

  • UEFI Secure boot and secure start support

  • Immutable silicon root of trust

  • FIPS 140-2 validation (iLO 5 Certification in progress)

  • Common criteria certification (iLO 5 Certification in progress)

  • Configurable for PCI DSS compliance

  • Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser

  • Support for Commercial National Security Algorithms (CNSA)

  • Granular control over iLO interfaces

  • Smart card (PIV/CAC) and Kerberos based 2-factor Authentication

  • Tamper-Free updates – Components digitally signed and verified

  • Secure recovery – Recover critical firmware to known good state on detection of compromised firmware

  • Ability to rollback firmware

  • Secure erase of NAND/User data

  • TPM (Trusted Platform Module) 1.2 option

  • TPM (Trusted Platform Module) 2.0 option

  • Bezel locking kit

  • Chassis intrusion detection option

NOTE:

    • Platinum – 82xx series - 2 and 4 socket capable, 3UPI @ 10.4 GT/s, 6-Channel DDR4 @ 2933 MT/s 1DPC, 1TB memory capacity (Up to 2TB on ‘M’ SKUs and up to 4.5TB on ‘L’ SKUs), Intel Turbo Boost Technology, Intel Hyper-Threading Technology,Intel AVX-512 (2 x 512-bit FMA), 48 lanes PCIe 3.0, advanced RAS.
    • Platinum 81xx series - 2 and 4 socket capable, 3UPI @ 10.4 GT/s, 6-Channel DDR4 @ 2666 MT/s, 768GB memory capacity (1.5TB on select skus with the M suffix), Intel Turbo Boost Technology, Intel Hyper-Threading Technology Intel AVX-512 (2 x 512-bit FMA), 48 lanes PCIe 3.0, advanced RAS.
    • Platinum 8165 processor and Gold 6143 processors support core boosting technology.
    • Gold – 62xx and 52xx series - 2 and 4 socket capable, 3UPI @ 10.4 GT/s on 62xx processors, 2UPI @ 10.4 GT/s on 52xx processors, 6 Channel DDR4 @ 2933 MT/s 1DPC on 62xx and 5222 processors , 6-Channel DDR4 @ 2666 MT/s on 52xx processors, 1TB memory capacity (up to 2TB on ‘M’ SKUs and up to 4.5TB on ‘L’ SKUs), Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512(1 x 512-bit FMA) (SKU 5222 supports 2 x 512 bit FMA), 48 lanes PCIe 3.0,advanced RAS.
    • Gold 61xx and 51xx series - 2 and 4 socket capable, 3UPI @ 10.4 GT/s on 61xx processors, 2UPI @ 10.4 GT/s on 51xx processors, 6-Channel DDR4 @ 2400 MHz (SKU 5122 = supports 2666), 768GB memory capacity (1.5TB on select skus with theM suffix), Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512(1 x 512-bit FMA) (SKU 5122 supports 2 x 512 bit FMA), 48 lanes PCIe 3.0, advanced RAS.
    • 82xx, 81xx, 62xx and 61xx processors support 3 UPI links and all processors are connected in a cross bar configuration with each processor connected to another directly in a four processor system. 52xx and 51xx processors support 2 UPI links only and all processors are connected in a ring configuration with processors 1, 3 and 2, 4 not connected directly in a four processor system.
    • Gold 5218N processor is optimized for NFV (Network Function Virtualization) workloads and supports Intel Speed Select Technology – Base Frequency.
    • Gold 5218B processor and Gold 5218 processor have the same specifications and cannot be mixed within a server.
    • Processors with 130 W or higher will ship with the High Performance heat sink plus SKUs 8256, 8156, 8158, 6128, 5222, 5122 as noted below. All other will processors will ship with the Standard heat sink.
    • With the current maximum memory offering (128GB LRDIMMs), the ‘L’ SKUs and ‘M’ SKUs can support up to 1.5TB per socket.
    • Platinum 8260Y and Gold 6240Y processors support Intel Speed Select Technology – Performance Profile.
    • 82xx, 62xx and 52xx processors offer VNNI (vector neural network instruction) instruction set.
    • 3 Processor configurations are not supported for 51xx Gold processors.

    • Only 2666 MT/s memory SKUs are supported with 1st generation processors (81xx,61xx and 51xx ).
    • Only 2933 MT/s memory SKUs are supported with 2nd generation processors (82xx,62xx and 52xx).
    • The 2933 MT/s memory SKUs offer a transfer rate of 2933 MT/s at 1 DIMM per channel and 2666 MT/s at 2 DIMMs per channel.
    • Mixing of RDIMM and LRDIMM memory is not supported.
    • The maximum memory speed is a function of the memory type, memory configuration, and processor model.
    • Intel memory processors (With suffix M) are needed for supporting 1.5TB memory per socket on 1st generation processors.
    • Intel memory processors (With suffix M or suffix L) are needed for supporting more than 1TB memory per socket on 2nd generation processors.
    • Maximum of 6 NVDIMMs are supported per processor on the 1st generation processors.
    • NVDIMM is not supported on the 2nd generation processors.

    • A minimum of 1 primary riser needs to be ordered.
    • The secondary riser is shipped with the tertiary riser and can be installed only after the primary riser has been installed. The tertiary riser cannot be ordered separately.
    • Slot availability is dependent on the processor installed. Please refer the above table carefully to make decisions on adding PCIe cards.

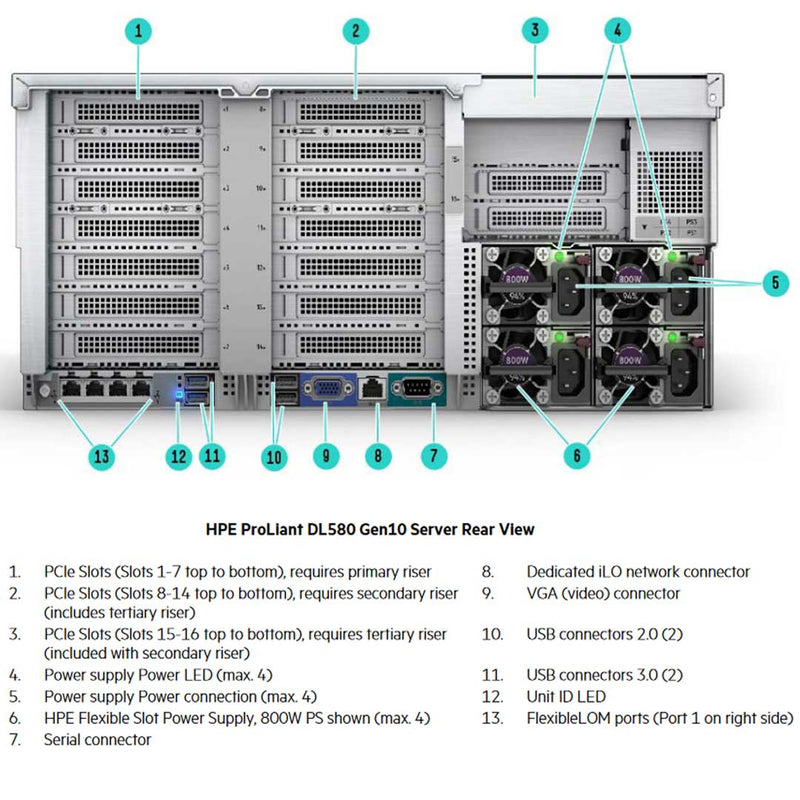

    • The expansion slots at the back are numbered in ascending order from top to bottom and from left to right.
    • The optional Slimline NVMe riser (878360-B21) supports a maximum of 16 NVMe drives and includes a primary 4-port riser and a 4-port NVMe mezzanine card. The 4-port NVMe mezzanine card installs on top of the HPE DL5x0 Gen10 CPU Mezzanine Board Kit (872222-B21) or HPE DL5x0 Gen10 CPU Version 2 Mezzanine Board Kit (P07991-B21) and requires three or four processor configuration.
    • Each NVMe port (slot) supports 2 NVMe drives.
    • A maximum of 1 primary, 1 secondary (includes tertiary) riser can be installed in one server.
    • Internal storage controllers and SAS expanders are supported only in the primary and tertiary risers. Not supported in the secondary riser.

    • HPE Smart Array S100i SR Gen10 SW RAID will operate in UEFI mode only. For legacy support an additional controller will be needed, and for CTO orders please also select the Legacy mode settings part, 758959-B22.
    • HPE Smart Array S100i SR Gen10 SW RAID is off by default and must be enabled. For enabling, please select HPE FIO Enable Smart Array SW RAID (784308-B21).

    • HPE Trusted Platform Module 2.0 Option (864279-B21) works with Gen10 servers with UEFI Mode and not Legacy Mode. The Trusted Platform Module 2.0 Option can be configured to the 1.2 version through the UEFI BIOS to support TPM 1.2 functionality.
    • HPE server systems can have a TPM module (Of any type) installed only once. It cannot be replaced with any other TPM module.

Specs 2

Software overview

Feature
Description
Operating Systems (OS) and virtualization software support for ProLiant Servers
With 1st generation processors

  • Windows Server 2012 R2

  • Windows Server 2016

  • VMware ESXi 6.0 U3

  • VMware ESXi 6.5 and U1 upon release

  • Red Hat Enterprise Linux (RHEL) 6.9 and 7.3

  • SUSE Linux Enterprise Server (SLES) 11 SP4 and 12 SP2

  • CentOS 6.9 and 7.3

  • Citrix XenServer 7.1, 7.3, 7.4

  • Oracle Linux 7

With 1st generation processors

  • Windows Server 2012 R2

  • Windows Server 2016

  • Windows Server 2019

  • VMware ESXi 6.0 U3

  • VMware ESXi 6.5 U2

  • VMware ESXi 6.7 U1

  • Red Hat Enterprise Linux (RHEL) 7.6 and 8.0

  • SUSE Linux Enterprise Server (SLES) 12 SP4 ,12 SP3 and 15 SP1

  • CentOS 7.6

NOTE:Not directly supported/community supported (Based on RHEL so RHEL testing and enablement applicable to Cent OS) CentOS 6.9/CentOS 7.3

Click here to access the Server Operating Systems and Virtualisation Software for latest listing of software drivers available for the server .

top

Physical specifications

Specifications
Description
Dimensions (H x W x D) (With bezel)
17.48 x 44.55 x 75.18 cm (6.88 x 17.54 x 29.60 in)
Weight (Approximate)
Maximum: 51.71 kg (114 lb)
(All hard drives, power supplies, DIMMs and processors installed)
Minimum: 28.12 kg (62 lb)
(One processor, one standard heatsink, one air baffle, one hard drive, two power supply, one DIMM, one NIC one rail kit with CMA and one primary riser installed)

top

Electrical specifications

Specifications
Description
Input requirements (Per power supply)
Rated input voltage

  • 100 - 127 V ac, 200 - 240 V ac, 240 V dc for China only (800 W platinum power supply only)

  • 200 - 240 V ac, 240 V dc for China only (1600 W power supply only)

Rated input current

  • 9.4 A (100 V ac), 4.5 A (200 V ac), 3.8 A at 240 V dc for China only (800 W platinum power supply only)

  • 8.7 A at 200 V ac, 7.2 A at 240 V ac - (1600 W power supply only)

Rated input frequency
50 to 60 Hz (NA for V dc ranges)
Maximum rated input power

  • 940 W (100 V ac), 900 W (200 V ac), 912 W at 240 V dc for China only - (800 W platinum power supply only)

  • 1734 W at 200 V ac 1720 W at 240 V ac - (1600 W power supply only)

BTU Rating
Maximum

  • 3207 BTU/hr at 100 V ac, 3071 BTU/hr at 200 V ac, 3112 BTU/hr at 240 for China only - (800 W platinum power supply only)

  • 5918 BTU/hr at 200 V ac, 5884 BTU/hr at 240 V ac - (1600 W power supply only)

Power supply output (Per power supply) 1
Rated steady-state power

  • 800 W at 100 V ac to 127 V ac input, 800 W at 200 V ac to 240 V ac input, 800 W at 240 V dc input for China only - (800 W platinum power supply only)

  • 1600 W at 200 V ac to 240 V ac input, 1600 W at 240 V dc input - (1600 W power supply only)

Maximum peak power

  • 800 W at 100 V ac to 127 V ac input, 800 W at 200 V ac to 240 V ac input, 800 W at 240 V dc input for China only - (800 W platinum power supply only)

  • 2200 W for 1 ms (Turbo mode) at 200 V ac to 240 V ac input - (1600 W power supply only)

NOTE:
  1. To review typical system power ratings use the HPE Power Advisor.

    Click here to access the HPE Power Advisor .

top

Environmental specifications

Specifications
Description
System inlet temperature
Standard operating support

  • 10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight

  • Maximum rate of change is 20°C/hr (36°F/hr)

  • The upper limit and rate of change may be limited by the type and number of options installed

  • System performance during standard operating support may be reduced if operating with a fan fault or above 30°C (86°F)

Extended ambient operating support

  • For approved hardware configurations, the supported system inlet range is extended to be: 5° to 10°C (41° to 50°F) and 35° to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft)

  • For approved hardware configurations, the supported system inlet range is extended to be: 40° to 45°C (104° to 113°F) at sea level with an altitude derating of 1.0°C per every 125 m (1.8°F per every 410 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft)

  • The approved hardware configurations for this system are listed at the below url:

    Click here to view the Hewlett Packard Enterprise Information Library for approved hardware configurations .

  • System performance may be reduced if operating in the extended ambient operating range or with a fan fault

Non-operating

  • -30° to 60°C (-22° to 140°F)

  • Maximum rate of change is 20°C/hr (36°F/hr)

Relative humidity (Non-condensing) (Rh)
Operating
8% to 90% Rh, 28°C (82.4°F) maximum wet bulb temperature, non-condensing
Non-operating
5% to 95% Rh, 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing
Altitude
Operating

  • 3050 m (10,000 ft)

  • This value may be limited by the type and number of options installed

  • Maximum allowable altitude change rate is 457 m/min (1500 ft/min)

Non-operating

  • 9144 m (30,000 ft)

  • Maximum allowable altitude change rate is 457 m/min (1500 ft/min)

Acoustic noise 1
Product configuration
Entry
Base
Performance
Idle - LWAd
5.6 B
5.7 B
5.4 B
Idle - LpAm
53.0 dBA
53.6 dBA
50.6 dBA
Operating - LWAd
5.9 B
7.0 B
6.8 B
Operating - LpAm
55.7 dBA
67.1 dBA
65.3 dBA
NOTE:
  1. Acoustics levels presented here are generated by the test configuration only. Acoustics levels will vary depending on system configuration. Values are subject to change without notification and are for reference only

top

You may also like
