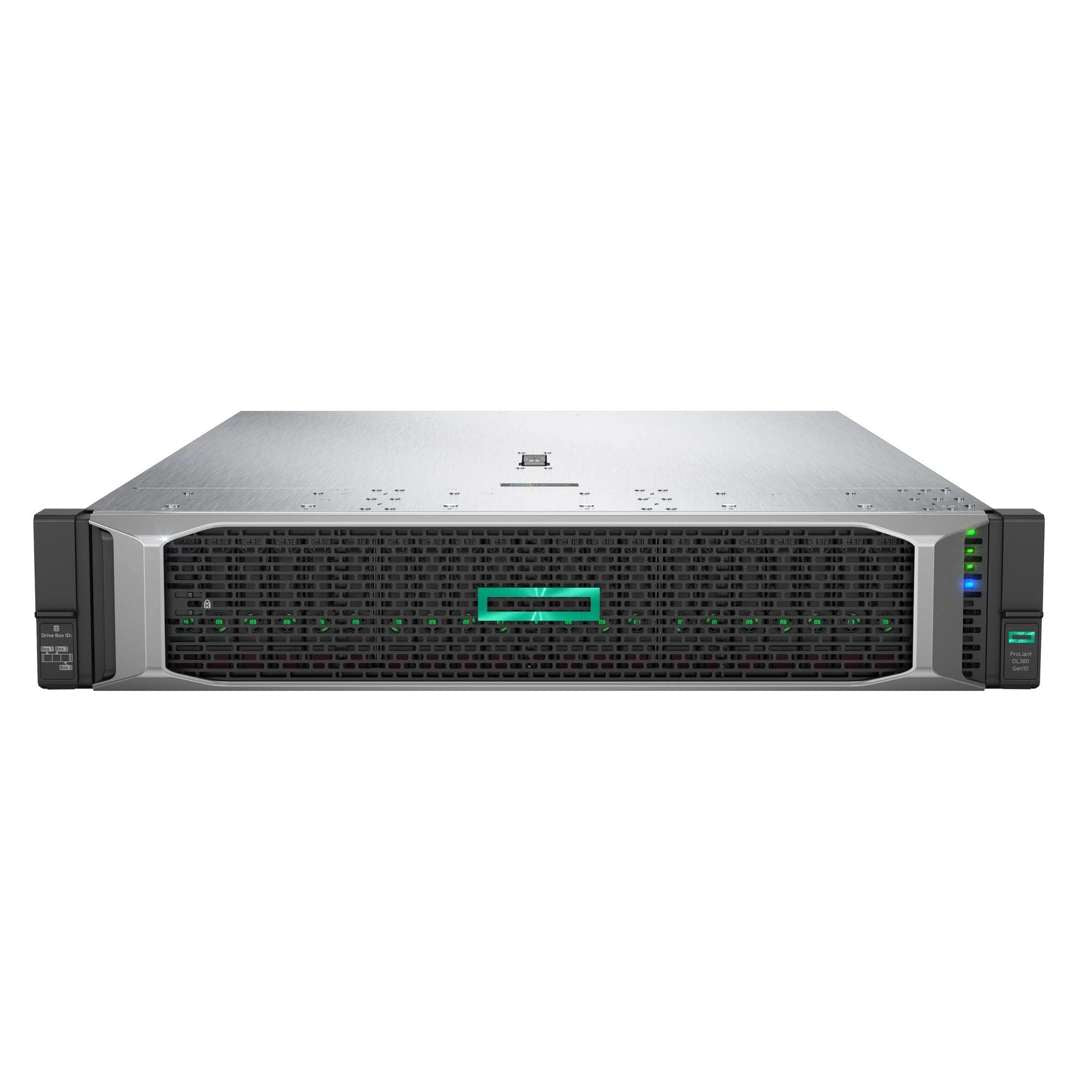

HP P02468-B21 ProLiant DL380 Gen10 server with one Intel Xeon Silver 4214 processor, 1x 16 GB dual rank memory, P816i-a storage controller, Smart Storage Battery to support multiple controllers/devices, twelve large form factor drive bays, six performance fans, one 800W Platinum power supply, and a 1 Year NBD ECS Parts Replacement Warranty. Rail kit and cable management arm available upon request.
Included Parts List
| Type | Quantity | Title |
| Chassis | 1 | HPE ProLiant DL380 Gen10 12FF Server Chassis |
| Processor | 1 | Intel Xeon-Silver 4214 (2.2GHz/12-core/85W) Processor |
| Memory | 1 | HPE 16GB (1x16GB) 2RX4 DDR4-2400 CAS 17-17-17 Registered Memory |
| RAID | 1 | HPE Smart Array P816i-a SR Gen10 (16 Internal Lanes/4GB Cache/SmartCache) 12G SAS Modular Controller |
| PSU | 1 | HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply |
Specifications for P02468-B21
Processor Core Available 12, per processor
Processor Cache Installed 16.5 MB L3
Memory Type HPE DDR4 SmartMemory
NVDIMM Type Not applicable
NVDIMM Rank Not applicable
NVDIMM Capacity Up to 1TB per processor
Network Controller 331i 4x 1GbE
Remote Management Software HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, and HPE OneView Advanced (optional, requires licenses)
System Fan Features 6 performance hot-plug redundant single-rotor fans included
Power Supply Type 1 HPE 800W Flex Slot Platinum hot plug power supply
Expansion Slots 3 PCIe 3.0, for detailed descriptions reference the QuickSpecs
Storage Controller 1 HPE Smart Array S100i and 1 HPE Smart Array P816i-a/4 GB plus Smart Storage Battery
Processor Name Intel® Xeon® Scalable 4214 (12 core, 2.2 GHz, 16.5 MB, 85W)
Processor Number 1
Processor Speed 2.2 GHz
Standard Memory 16 GB (1 x 16 GB) RDIMM Dual Rank 2933MT/s
Hard Drive Number (included) None ship standard, 12 LFF SAS/SATA drives supported
Optical Drive Type Optional
Security Optional locking Bezel Kit, Intrusion Detection Kit, and HPE TPM 2.0
Form Factor 2U
Weight (imperial) 32.6 lb
Weight (metric) 14.76 kg
Product Dimensions (imperial) 17.54 x 28.75 x 3.44 in
Product Dimensions (metric) 44.55 x 73.03 x 8.74 cm
