-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Switch Specs
Switch Specs:
-

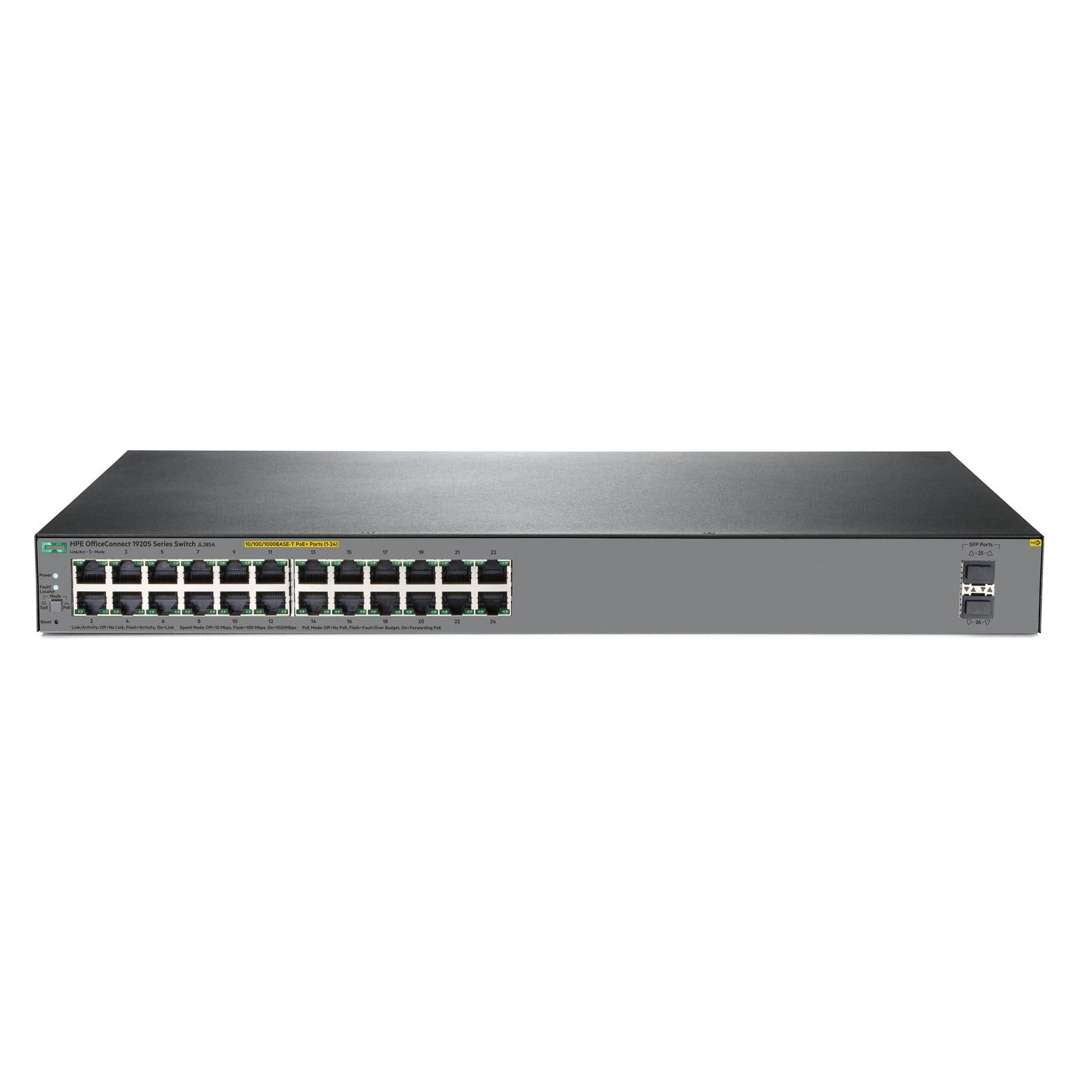

HPE OfficeConnect 1920S 24G + 2SFP PPoE+ 185W Switch
- 24 RJ-45 autosensing 10/100/1000 PoE+ ports
- 2 SFP 100/1000 Mbps ports (min=0 \ max=2 SFP Transceivers)
- 1U - Height
- 17.42(w) x 12.7(d) x 1.73(h) in (44.25 x 32.26 x 4.39 cm)
- Weight 9.7 lb (4.4 kg)
-
PDU Cable NA/MX/TW/JP
- C15 PDU Jumper Cord (NA/MX/TW/JP) | JL385A#B2B
-
PDU Cable ROW
- C15 PDU Jumper Cord (ROW) | JL385A#B2C
-
No Power Cord
- No Localized Power Cord Selected | JL385A#AC3
Key features
- Customized operation using intuitive Web interface
- Layer 3 static routing with 32 routes for network segmentation and expansion
- Access control lists for granular security control
- Spanning Tree Protocol: STP, RSTP, and MSTP
- 8-, 24- and 48-port non-PoE+ models are fanless for quiet operation
- HPE Limited Lifetime warranty
- Note 2: Localization (Wall Power Cord) required on orders without #B2B or #B2C (PDU Power Cord).
-
Note 3: The following Transceivers install into this switch:
- Aruba 100M SFP LC FX 2km MMF XCVR J9054D
- Aruba 1G SFP LC SX 500m MMF XCVR J4858D
- Aruba 1G SFP LC LX 10km SMF XCVR J4859D
- Aruba 1G SFP RJ45 T 100m Cat5e XCVR J8177D
The HPE OfficeConnect 1920S Switch Series consists of advanced smart-managed fixed-configuration Gigabit switches designed for small businesses in an easy-to-administer solution.
The series consists of seven switches including 8- 24- and 48-port Gigabit Ethernet switches and 8-, 24- and 48-port PoE+ models of which half the ports are POE+ capable. An additional 24-port PoE+ model is available that provides PoE+ on all 24- ports. All ports provide non-blocking Gigabit per performance. Some models include SFP ports for fiber connectivity and the 8-, 24- and 48-port non PoE+ models are fanless, making them ideal for office deployments. All HPE OfficeConnect 1920S Switches support flexible installation options, including mounting on wall, under table, or on desktop. The 8-port Gigabit Ethernet model can be powered by an upstream Power over Ethernet switch for environments where no line power is available.
Features and benefits Management
Layer 3 services
Layer 3 routing
- Simple Web management Allows for easy management of the switch—even by nontechnical users—through an intuitive Web GUI; supports HTTP and HTTP Secure (HTTPS)
- SNMPv1, v2c, and v3 Facilitate management of the switch, as the device can be discovered and monitored from an SNMP management station
- Complete session logging Provides detailed information for problem identification and resolution
- Port mirroring Enables traffic on a port or VLAN to be simultaneously sent to a network analyzer for monitoring
- Dual flash images Provide independent primary and secondary operating system files for backup while upgrading
- Network Time Protocol (NTP) Synchronizes timekeeping among distributed time servers; keeps timekeeping consistent among all clock-dependent devices within the network so that the devices can provide diverse applications based on the consistent time
- Manual network time configuration Manually set the date and time on the switch in the absence of an NTP server
- Default DHCP client mode Allows the switch to be directly connected to a network, enabling plug-and-play operation; in absence of a DHCP server on the network, the switch falls back to the static address 192.168.1.1
- FTP and TFTP Provides different mechanisms for configuration updates; FTP allows bidirectional transfers over a TCP/IP network; trivial FTP (TFTP) is a simpler method using user Datagram Protocol (UDP)
- Remote monitoring (RMON) Remote monitoring (RMON) provides advanced monitoring and reporting capabilities for statistics, history, alarms and events. RMON data is retrieved from the switch through a network management platform over SNMP.
Layer 3 services
- Address Resolution Protocol (ARP) Displays the MAC address of another IP host in the same subnet; supports static ARPs; proxy ARP allows normal ARP operation between subnets or when subnets are separated by a Layer 2 network
- DHCP relay Simplifies management of DHCP addresses in networks with multiple subnets
Layer 3 routing
- Static IPv4 routing Provides basic routing supporting up to 32 static routes to allow manual routing configuration
- Link aggregation Groups together multiple ports up to a maximum of eight ports per trunk either automatically using Link Aggregation Control Protocol (LACP), or manually, to form an ultra-high-bandwidth connection to the network backbone; help prevent
- traffic bottlenecks. The 8 port models support 4 trunks, 16 and 24 port models support 8 trunks, 48 port models support 16 trunks.
Compatible With:
- HPE 1920s
