SKU: JL682A

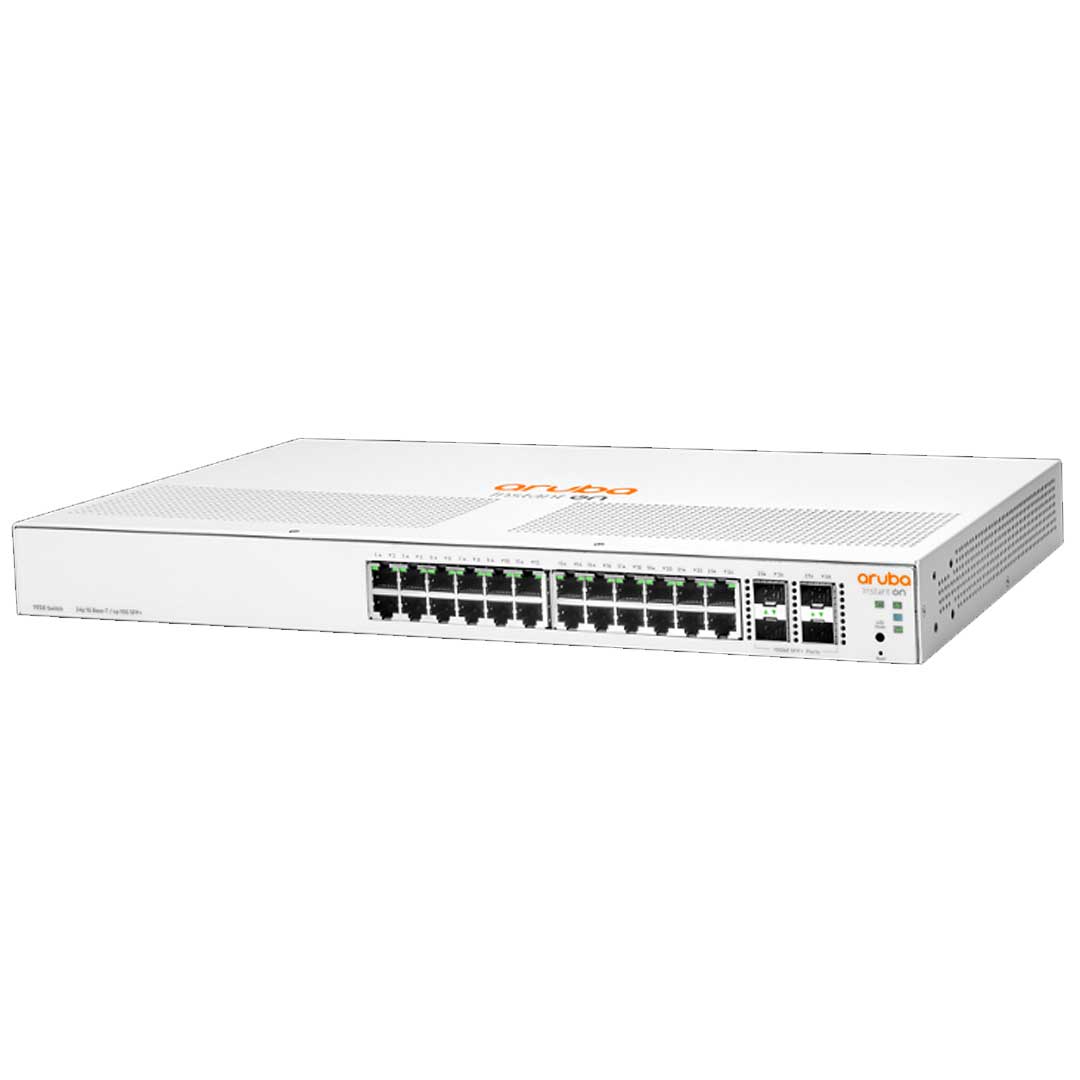

HPE Aruba Instant On 1930 24G 4SFP/SFP+ Switch | JL682A

Thanks for the request. We'll get back to you with in 24 hours.

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Switch Specs:


Quick Specs:
  • HPE Aruba Instant On 1930 24G 4SFP/SFP+ Switch:
    • 24 RJ-45 autosensing 10/100/1000 ports
    • 4 SFP 1000 Mbps ports (min=0 \ max=4 SFP.SFP+ Transceivers)
    • 1U - Height
    • 17.42(w) x 8.72(d) x 1.73(h) in (44.25 x 22.15 x 4.39 cm)
    • Weight 5.32 lb (2.41 kg)
    • Power consumption 22.6 W maximum, 9.3 W idle
  • Aruba Instant On 1930 4G 4SFP/SFP+ Switch:
    • C15 PDU Jumper Cord (NA/MX/TW/JP) | JL682A#B2B
  • Aruba Instant On 1930 4G 4SFP/SFP+ Switch:
    • C15 PDU Jumper Cord (ROW) | JL682A#B2C
  • Aruba Instant On 1930 4G 4SFP/SFP+ Switch:
    • No Localized Power Cord Selected | JL682A#AC3
  • Processor and Memory:
    • ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB

Key features:
  • Smart-managed layer 2+ Ethernet switch series ready to deploy in 8-, 24-and 48-port for non-PoE and Class 4 PoE models
  • PoE to power APs and IoT devices like IP phones, surveillance cameras and door locks
  • Two (2) dedicated 1G SFP fiber ports on 8-port models, and four (4) dedicated 1G/10G SFP+ fiber ports on 24-/48-port models to eliminate traffic bottlenecks across your network
  • Security controls let you define access in each area of your network, keeping your business data safe
  • Convenient mobile app and web- based GUI for set up, management and troubleshooting.
  • Note 1: Localization (Wall Power Cord) required on orders without B2B or B2C (PDU Power Cord).
  • Note 2: The following Transceivers install into this switch:
    • Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver R9D16A
    • Aruba Instant On 1G SFP RJ45 T 100m Cat5e Transceiver R9D17A
    • Aruba 1G SFP LC LX 10km SMF Transceiver J4859D
  • Note 3:The following Transceivers install into this switch:
    • Aruba Instant On 10G SFP+ LC SR 300m OM3 MMF Transceiver R9D18A
    • Aruba 10G SFP+ LC SR 300m OM3 MMF Transceiver J9150D
    • Aruba 10G SFP+ LC LR 10km SMF Transceiver J9151E
    • Aruba Instant On 10G SFP+ to SFP+ 1m Direct Attach Copper Cable R9D19A
    • Aruba Instant On 10G SFP+ to SFP+ 3m Direct Attach Copper Cable R9D20A

The Aruba Instant On 1930 switches features advanced, smart-managed, fixed- configuration Gigabit switches designed for small businesses that are easy-to-deploy and affordable. They’re made to handle today’s bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to enhance performance.


Using either the Instant On mobile app or the cloud-based web portal, you can quickly set up, monitor and manage the 1930 switch series from anywhere at any time. What’s more, up to 30 W PoE power delivery is available out-of-the-box for your class 4 PoE devices, like access points, surveillance cameras and VoIP phones, all easily managed from the same platform.


Switching Features
  • IEEE 802.3x Flow Control: Provides a flow-throttling mechanism propagated through the network to prevent packet loss at a congested node.
  • Spanning Tree Protocol (STP): Supports standard IEEE 802.1D STP, IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) for faster convergence, and IEEE 802.1s Multiple Spanning Tree Protocol (MSTP on local web).
  • Loop Protection: If the switch detects a loop, it disables the source port from forwarding data packets originating from the switch to avoid broadcast storms.
  • BPDU Filtering: Drops BPDU packets when STP is enabled globally but disabled on a specific port.
  • Jumbo Frame Support: Supports up to 9216 bytes frame size to improve the performance of large data transfers.
  • IGMP Snooping v1/v2: Improves network performance through multicast filtering, instead of flooding traffic on all ports.
  • Link Aggregation: Groups together multiple ports up to a maximum of eight (8) ports per trunk automatically using Link Aggregation Control Protocol (LACP), or manually, to form a high-bandwidth connection to the network backbone that helps prevent traffic bottlenecks. The 8-port models support 4 trunks, 24-port models support 8 trunks, and 48-port models support 16 trunks.
  • LLDP/LLDP-MED (Media Endpoint Discovery): Defines a standard extension of LLDP that stores values for parameters such as QoS and VLAN for automatic configuration of network devices such as IP phones.
  • Address Resolution Protocol (ARP): The ARP table displays all of the IP addresses that have been resolved to MAC addresses, either dynamically or through static entry configuration.
  • Read the manual below for all the Specs and Features.
Compatible With:
  • HPE 1930
