Home / 1U / Cisco Ucs C220 M7 10X 2.5" Sff Chassis | UCSC-C220-M7S
SKU: UCSC-C220-M7S

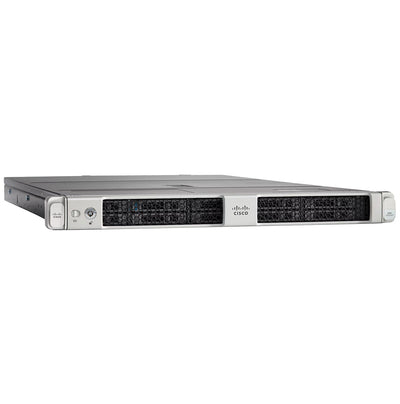

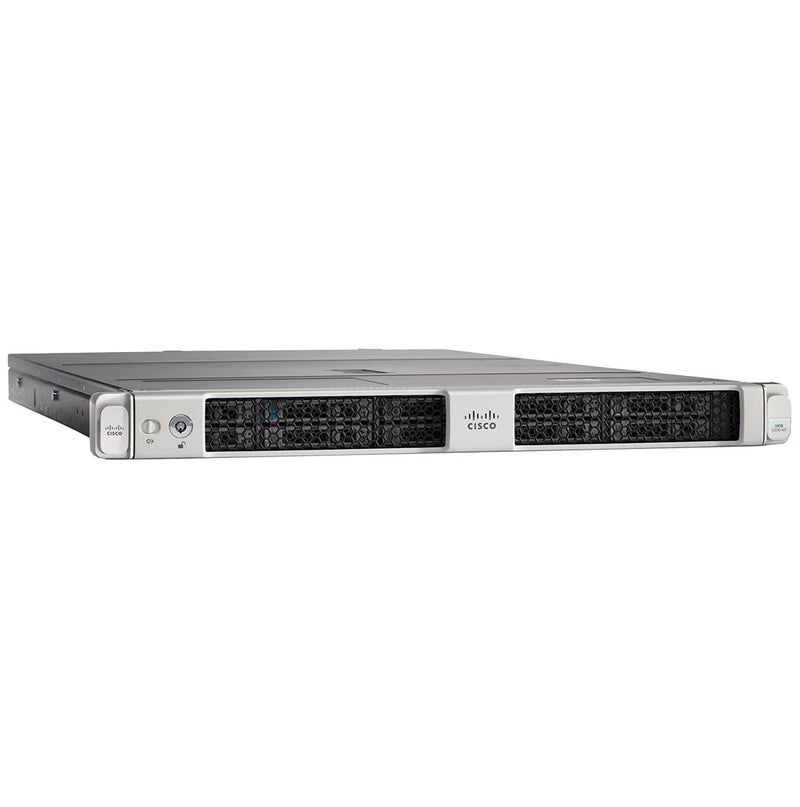

Cisco Ucs C220 M7 10X 2.5" Sff Chassis | UCSC-C220-M7S

Cisco

| Chassis
Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

What's New for Cisco C220 M7
  • (2) Intel Xeon 4th and 5th Scalable Processors
  • (32) 5600MT/s DDR5 DIMMs
  • Support for Intel® Optane™ Persistent Memory (PMem)
  • (10) SFF SATA/SAS Drives
  • (3) PCIe 5.0 Slots
  • (3) GPUs Supported
  • Dedicated mLOM Slot
  • Dedicated OCP 3.0 Slot
  • Tri-mode RAID support
  • Embedded 2 x 1 GbE LAN-on-motherboard (LOM)
  • (8) Hot Swap Fans
Other Versions:

(Click to View)

Ideal for:

  • Artificial Intelligence (AI)
  • Big Data Analytics
  • Cloud Servers
  • Corporate IT
  • Data Analytics
  • Database
  • Deep Learning (DL)
  • High-Performance Computing (HPC)
  • Machine Learning (ML)
  • Virtual Desktop Interface (VDI)
  • Virtualization
  • Web Tech
  • Anything as a service (Xaas)

The Cisco UCS C220 M7 Rack Server is a high-density, 1RU, 2-socket server designed for a wide range of demanding workloads, including AI/ML, big data, cloud applications, and virtualization. Powered by up to two 5th Gen Intel Xeon Scalable Processors with up to 60 cores per socket and 32 DDR5 DIMM slots supporting up to 4TB of memory, it delivers exceptional performance for compute-intensive tasks.

This server also features advanced technologies like PCIe Gen5, support for up to three GPUs, and flexible storage options, including up to 10 NVMe drives or SAS/SATA drives with tri-mode RAID support. Ideal for modern IT environments, the C220 M7 combines cutting-edge performance with energy efficiency and scalability to meet the needs of enterprise, cloud, and data analytics workloads.

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Spec Sheet 4

Capability/Feature Description
Chassis One rack unit (1RU) chassis
CPU One or two 5th Gen. Intel® Xeon® Scalable Processors or One or two 4th Gen. Intel® Xeon® Scalable Processors.
Each CPU has 8 channels with up to 2 DIMMs per channel, for up to 16 DIMMs per CPU.
UPI Links: Up to 3 at 20GT/s.
Chipset Intel® C741 series chipset
Memory
  • 32 total DDR5-5600 MT/s DIMM slots with 5th Gen. Intel® Xeon® Scalable Processors (16 per CPU) or 32 total DDR5-4800 MT/s DIMM slots with 4th Gen. Intel® Xeon® Scalable Processors.
  • Up to 4TB DDR5-5600 DIMM memory capacity (32x 128GB DIMMs) with 5th Gen. Intel® Xeon® Scalable Processors or Up to 4TB DDR5-4800 DIMM memory capacity (32x 128GB DIMMs) with 4th Gen. Intel® Xeon® Scalable Processors.
  • Up to 75% peak bandwidth increase over DDR4-3200, with on-die ECC; all densities are Registered DIMMs (RDIMMs).
Video The Cisco Integrated Management Controller (CIMC) provides video using the Matrox G200e video/graphics controller:
  • Integrated 2D graphics core with hardware acceleration.
  • Embedded DDR memory interface supports up to 512 MB of addressable memory (8 MB is allocated by default to video memory).
  • Supports display resolutions up to 1920 x 1200 16bpp @ 60Hz.
  • High-speed integrated 24-bit RAMDAC.
  • Single lane PCI-Express host interface running at Gen 1 speed.
Power subsystem Up to two of the following hot-swappable power supplies:
  • 770 W (AC)
  • 1200 W (AC)
  • 1600 W (AC)
  • 2300 W (AC)
One power supply is mandatory; one more can be added for 1 + 1 redundancy.
Front Panel A front panel controller provides status indications and control buttons
ACPI This server supports the advanced configuration and power interface (ACPI) 6.2 standard.
Fans Eight hot-swappable fans for front-to-rear cooling
InfiniBand The InfiniBand architecture is supported by the PCI slots.

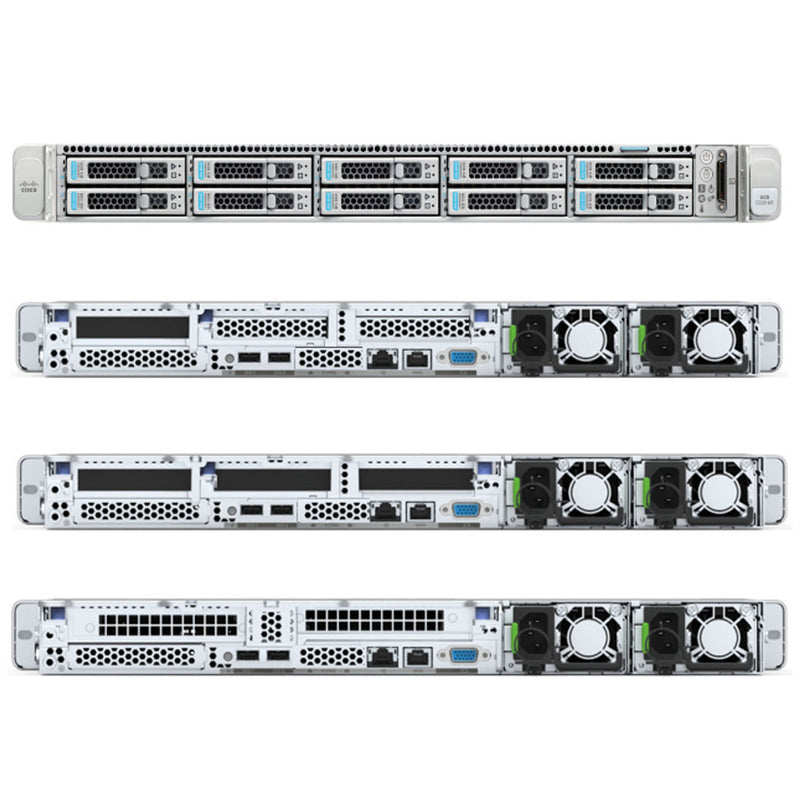

Expansion slots Half-height riser slots (select up to three):
  • Riser 1A PCIe Gen4 x16 HH
  • Riser 1B PCIe Gen5 x16 HH
  • Riser 2A PCIe Gen4 x16 HH
  • Riser 2B PCIe Gen5 x16 HH
  • Riser 3A PCIe Gen4 x16 HH (CPU2 Control)
Full-height riser slots (select up to two):
  • Riser 1C PCIe Gen5 x16 FH
  • Riser 3C PCIe Gen5 x16 FH (CPU2 Control)
Interfaces Rear panel:
  • One 1Gbase-T RJ-45 management port
  • One RS-232 serial port (RJ45 connector)
  • One DB15 VGA connector
  • Two USB 3.0 port connectors
  • One flexible modular LAN on motherboard (mLOM/OCP 3.0) slot that can accommodate various interface cards
Front panel:
  • One KVM console connector (supplies two USB 2.0 connectors, one VGA DB15 video connector, and one serial port (RS232) RJ45 connector)
Integrated management processor Baseboard Management Controller (BMC) running Cisco Integrated Management Controller (CIMC) firmware.

Depending on your CIMC settings, the CIMC can be accessed through the 1GE dedicated management port, Cisco virtual interface card (VIC).

CIMC manages certain components within the server, such as the Cisco 12G SAS HBA.
