Home / 1U / Cisco UCS C220 M6 10 SFF UCSC-C220-M6S
SKU: UCSC-C220-M6S

Cisco UCS C220 M6 10 SFF UCSC-C220-M6S

Cisco

| Chassis
Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

What's New for Cisco C220 M6
  • (2) Intel Xeon 3rd Gen Scalable Processors
  • (32) 3200MT/s DDR4 DIMMs
  • (10) SFF SATA/SAS/NVMe Drives
  • 12Gbps SAS Drives Supported
  • (3) PCIe 4.0 Slots
  • (3) GPUs Supported
  • Dedicated mLOM Slot
  • Embedded Dual Intel x550 10GBASE-T (LOM) ports
  • Modular M.2 SATA SSDs for boot
  • Intel® Optane™ Persistent Memory (PMem)
  • (8) Hot Swap Fans

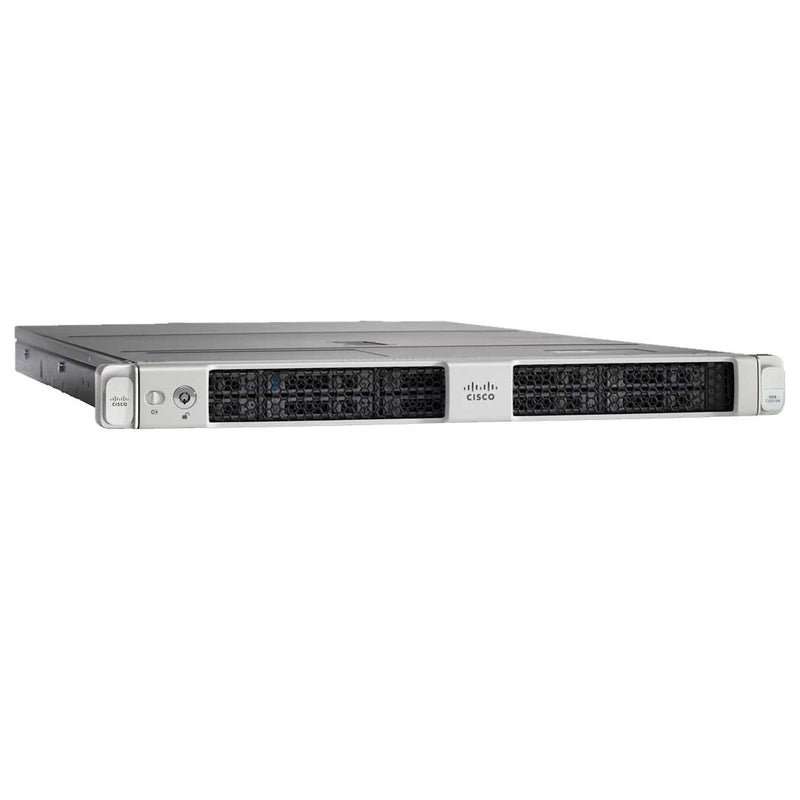

The Cisco UCS C220 M6 SFF Rack Server is a compact, 1U, two-socket server designed for high-performance workloads like AI, machine learning, data analytics, cloud computing, and virtualization. Powered by 3rd Gen Intel Xeon Scalable Processors, it supports up to 10 TB of memory, 10 SAS/SATA/NVMe drives in mixed or NVMe-only setups, and up to 3 GPUs for compute-intensive tasks. It features PCIe Gen4 expansion and advanced networking with dual 10GBase-T ports. Integrated with Cisco UCS Manager and Cisco Intersight, this versatile and scalable server is ideal for hybrid IT and demanding enterprise workloads.

Other Versions:

Ideal for:

  • Artificial Intelligence (AI)
  • Big Data Analytics
  • Cloud Servers
  • Corporate IT
  • Data Analytics
  • Database
  • Deep Learning (DL)
  • High-Performance Computing (HPC)
  • Hyper-Converged infrastructure (HCI)
  • Machine Learning (ML)
  • Virtualization
  • Virtual Machines (VM)
  • Web Tech
  • Anything as a service (Xaas)

CTO Configuration Support

Need help with the configuration? Contact us today!

Chassis Options
Cisco C220 M6 10 SFF | UCSC-C220-M6S Cisco C220 M6 10 SFF | UCSC-C220-M6S

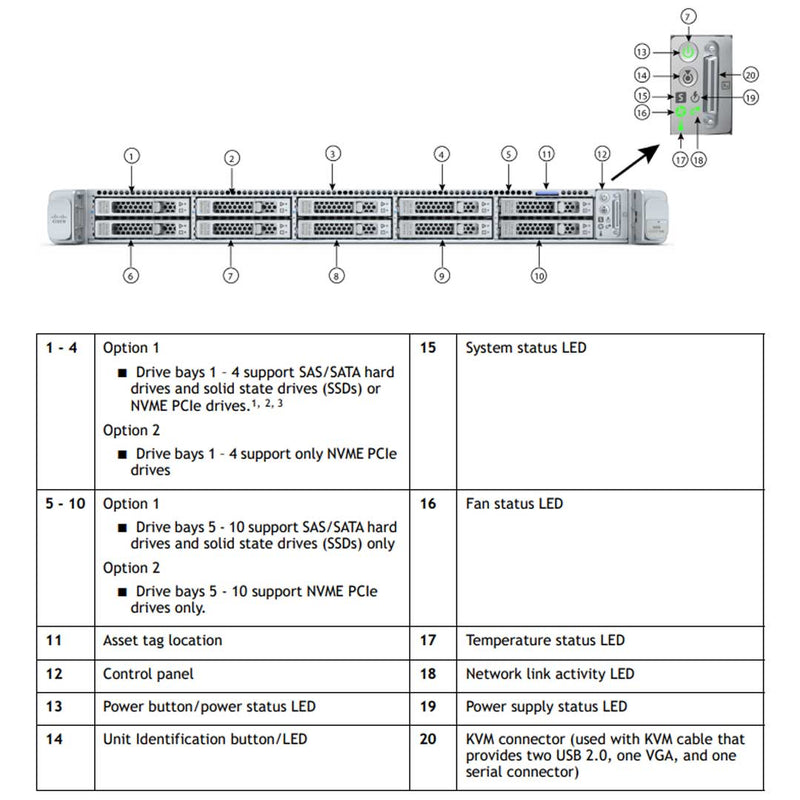

Supports SATA/SAS/NVMe Drives

Drive Bays 1-4 allow NVMe & Mixing

default AHCI supports up to (8) SATA-only drives

SAS/SATA drives connected via RAID controller or HBA

Supports M.2 SATA drives for Boot

Cisco C220 M6 10 SFF NVMe | UCSC-C220-M6N Cisco C220 M6 10 SFF NVMe | UCSC-C220-M6N

(10) NVMe Drives

All NVMe drives connected via CPU PCIe Gen4

Supports M.2 SATA drives for Boot

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Spec Sheet 4

Item Specifications
Form factor 1RU rack server
Processors 3rd Generation Intel Xeon Scalable processors (1 or 2)
Memory 32 DDR4 DIMM slots: 16, 32, 64, and 128 GB up to 3200 MHz
Support for the Intel Optane DC Persistent Memory (128G, 256G, 512G)
PCIe expansion 3 PCIe 4.0 slots plus 1 dedicated 12-Gbps RAID controller slot and 1 dedicated mLOM slot
RAID controllers
  • Internal controllers: Cisco 12-Gbps Modular RAID Controller (PCIe 4.0) with 4-GB Flash-Backed Write Cache (FBWC), providing enterprise-class data protection for up to 10 SAS and SATA Hard Disk Drives (HDDs), SSDs, or NVMe PCIe SSDs; or Cisco 12-Gbps Modular SAS Host Bus Adapter (HBA)
  • External controller: Cisco 12-Gbps 9500-8e SAS HBA
Internal storage Backplane options:
  • Up to 10 x 2.5-inch SAS and SATA HDDs and SSDs and up to 4 NVMe PCIe drives
  • Up to 10 x 2.5-inch NVMe PCIe SSDs (All direct attach Gen4 x4)
Embedded Network Interface Cards (NICs) Dual 10GBASE-T Intel x550 Ethernet ports
mLOM Dedicated mLOM slot that can flexibly accommodate 10/25/40, and 100-Gbps adapters
Power supplies Hot-pluggable, redundant 1050W AC, 1050W DC, 1600W AC, and 2300W AC
Other storage
  • Dedicated Baseboard Management Controller (BMC) FlexMMC for utilities (on board)
  • Dual M.2 SATA SSDs with HW Raid support
Management
  • Cisco Intersight
  • Cisco Integrated Management Controller (IMC)
  • Cisco UCS Manager
Rack options Cisco ball-bearing rail kit with optional reversible cable management arm
