Hpe Proliant Ml150 Gen9 Hot Plug 8 Sff Server Chassis | 767064-B21

SKU: 767064-B21

Hpe Proliant Ml150 Gen9 Hot Plug 8 Sff Server Chassis | 767064-B21

Name: Hpe Proliant Ml150 Gen9 Hot Plug 8 Sff Server Chassis | 767064-B21
Brand: HPE
SKU: 767064-B21
Availability: InStock

HPE

| Chassis

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Quick Specs

What's New for ML150 Gen9

(2) E5-2600 v3 & v4
(16) DDR4 DIMM Slots
Broadcom 5717 Dual-port 1Gb
(6) PCIe 3.0 slots.(2) PCIe 3.0 x16; (4) PCIe 3.0 x 8 (x8 speed)
HPE 12TB SATA 7.2 K LFF HDD
HPE RDX 4TB USB 3.0 External/ Internal Disk Backup System
HPE iLO (Firmware HPE iLO4 2.0 or later) with NAND

The HPE ProLiant ML150 Gen9 Server, designed for SMBs, supports up to two Intel Xeon E5-2600 v3/v4 processors in a tower form factor that is rack-mountable. It combines performance, efficiency, and manageability with room for growth. Featuring an embedded SATA HPE Dynamic Smart Array B140i Controller for boot and data, it also supports HPE Smart Array Controllers for enhanced performance and 12 Gb/s SAS, or HPE Smart HBAs for high-performance SAS connectivity in HBA or RAID modes. With a compact 24-inch chassis and built-in ProLiant technologies, it simplifies server deployment and management, boosting productivity and scalability for growing businesses.

Other Versions:

Ideal for:

Cloud Servers
Corporate IT
Data Analytics
Database
Hyper-Converged infrastructure (HCI)
Retail Servers
Virtual Desktop Interface (VDI)
Virtualization
Anything as a service (Xaas)

CTO Configuration Support

Need help with the configuration? Contact us today!

Chassis Options

CTO Server [Chassis]	HP ProLiant ML150 Gen9 Non-hot Plug 4LFF Configure-to-order Server	HP ProLiant ML150 Gen9 Hot Plug 4LFF Configure-to-order Server	HP ProLiant ML150 Gen9 Hot Plug 8SFF Configure-to-order Server
SKU Number	767062-B21	767063-B21	767064-B21
Processor	2 (optional) x HPE Smart Socket Guide
DIMM Slots	16 DIMM slots for RDIMM, LRDIMM DDR4 Memory
Storage Controller	HPE Dynamic Smart Array B140i
PCIe	6 Standard (4FH/HL, 2FH/FL)
Drive Cage - included	4LFF Non Hot Plug	4LFF Hot Plug	8SFF Hot Plug
Network Controller	Broadcom 5717 Dual-port 1GbE
Fans	2 non hot plug, non-redundant fans
USB	2 front, 2 internal, 4 rear

Non-hot Plug 4LFF

Controller

onboard B140i SATA controller

Upgrades

Second Non-hot-plug drive cage (792353-001)

9/10LFF Drive Kit (788567-B21)

Non-Hot-Plug (NHPE) SATA is limited to the B140i controller and SATA drives.

Hot Plug 4LFF

Controller

H240 12Gb 2-ports Int Smart HBA (726907-B21)

Upgrades

Second 4LFF Hot Plug Drive Cage (725872-B21 - 792351-001)

One H240 Cable Kit (784606-B21) per Drive Cage.

Hot Plug 8SFF

Controller

8SFF - H240 (726907-B21)

16SFF - P840 (726907-B21)

Upgrades

8SFF Hot Plug Drive Cage (725874-B21 - 792352-001)

The P840 requires (2) Mini SAS P440/P840 Cable Kit (784608-B21) for 16 Drives

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

Product features

Feature

Description

Processor

Model	CPU frequency	Cores	L3 Cache	Power	QPI	DDR4 Hz
E5-2660v3	2.6 GHz	10	25MB	105 W	9.6 GT/s	2133
E5-2650v3	2.3 GHz	10	25MB	105W	9.6 GT/s	2133
E5-2650Lv3	1.8 GHz	12	30MB	65 W	9.6 GT/s	2133
E5-2640v3	2.6 GHz	8	20MB	90 W	8.0 GT/s	1866
E5-2630v3	2.4 Ghz	8	20MB	85 W	8.0 GT/s	1866
E5-2630Lv3	1.8 GHz	8	20MB	55 W	8.0 GT/s	1866
E5-2609v3	1.9 GHz	6	15MB	85 W	6.4 GT/s	1600
E5-2620v3	2.4 GHz	6	15MB	85 W	8.0 GT/s	1866
E5-2603v3	1.6 GHz	6	15MB	85 W	6.4 GT/s	1600
E5-2660v4	2.0 GHz	14	35MB	105 W	9.6 GT/s	2400
E5-2650v4	2.2 GHz	12	30MB	105 W	9.6 GT/s	2400
E5-2650Lv4	1.7 GHz	14	35MB	65 W	9.6 GT/s	2400
E5-2640v4	2.4 GHz	10	25MB	90 W	8.0 GT/s	2133
E5-2630v4	2.2 GHz	10	25MB	85 W	8.0 GT/s	2133
E5-2630Lv4	1.8 GHz	10	25MB	55 W	8.0 GT/s	2133
E5-2620v4	2.1 GHz	8	20MB	85 W	8.0 GT/s	2133
E5-2609v4	1.7 GHz	8	20MB	85 W	6.4 GT/s	1866
E5-2603v4	1.7 GHz	6	15MB	85 W	6.4 GT/s	1866
E5-2695v4	2.1 GHz	18	45MB	120 W	9.6 GT/s	2400
E5-2683v4	2.1 GHz	16	40MB	120 W	9.6 GT/s	2400
E5-2680v4	2.4 GHz	14	35MB	120 W	9.6 GT/s	2400

Cache memory

15MB (1 x 15MB) level 3 cache (For six-core processors)
20MB (1 x 20MB) level 3 cache (For eight-core processors)
30MB (1 x 30MB) level 3 cache (For twelve-core processors)
25MB (1 x 25MB) level 3 cache (For ten-core processors)
35MB (1 x 35MB) level 3 cache (For fourteen-core processors)

Chipset

Intel C610 series chipset
Intel E5-2600v3 processor family

On system management chipset

HPE iLO (Firmware HPE iLO4 2.0) 2GB NAND

Memory

Type	HPE SmartMemory DDR4 Registered (RDIMM) or Load Reduced (LRDIMM)
DIMM slots available	16
Maximum capacity (LRDIMM)	512GB (16 x 32GB LRDIMM @2400 MHz)
Maximum capacity (RDIMM)	512GB (16 x 32GB RDIMM @2400 MHz)
NOTE: This server does not support mixing LRDIMMs or RDIMMs. Attempting to mix any combinationof these DIMMs can cause the server to halt during BIOS installation

Memory protection

Advanced ECC	Online spare
Advanced ECC uses single device data correction to detect and correct single and all multibit error that occurs within a single DRAM chip	Memory online spare mode detects a rank that is degrading and switches operation to the spare rank

Network controller

Broadcom 5717 Dual-port 1Gb

Expansion slots

Expansion Slots #	Technology	Bus Width	Connector Width	Bus Number	Form Factor	Notes
7	HPE ML Gen9 Dedicated iLO Port Kit	x1	x1	-	Dedicate for ML Series	-
6	PCIe 3.0	x8	x8	-	Full length/full height	For processor 1
5	PCIe 3.0	x16	x16	-	Full length/full height	For processor 1
4	PCIe 3.0	x8	x8	-	Half length/full height	For processor 1
3	PCIe 3.0	x16	x16	-	Full-height, full-lengthslot	For processor 2
2	PCIe 3.0	x8	x8	-	Half length/full height	For processor 1
1	PCIe 3.0	x8	x8	-	Half length/full height	For processor 2

Storage controller

Entry models	HPE Dynamic Smart Array B140i Controller
Base models	HPE Dynamic Smart Array B140i Controller
Performance models	HPE H240 FIO Smart Host Bus Adapter
NOTE: B140i can't mix with any standup internal controller

Internal storage devices

Optical drive	Optional SATA 9.5 mm DVD-ROM optical drive
	Optional SATA 9.5 mm DVD RW optical drive
NOTE: Optical is optional in entry, base and performance BTO models ML150 Gen9 Slim ODD enablement kit (P/N: 784603-B21) isrequired for any DVD options
Hard drives	None ship standard
NOTE: Mixing drive cage types is not allowed All Pre-configured Models come populated with hard drive blanksinstalled. The 4LFF configurations includes 2 blanks and 8SFF includes 6blanks NHPE SATA is limited to B140i controller
Hard drive bays	Up to 10 Non-hot plug SATA 3.5 in drives
	(4) Hot plug LFF SAS/SATA HDD bays; upgradable to (8)

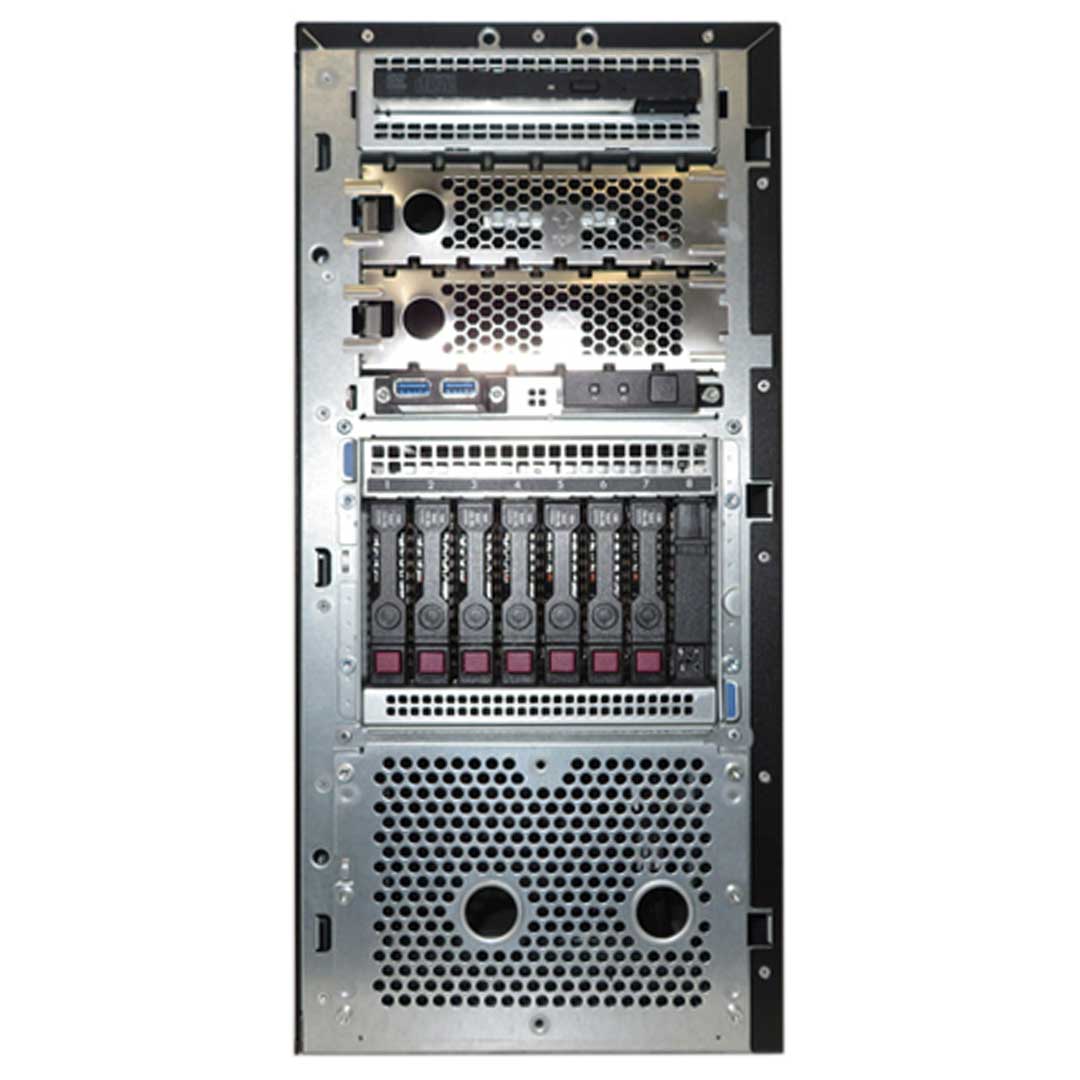

	(8) Hot plug SFF SAS/SATA HDD bays; upgradable to (16)
NOTE: NHPE SATA is limited to B140i controller NHPE SATA is limited to B140i controller H240 8LFF/8SFF require 2 cable kit P/N: 784606-B21 H240 8LFF/8SFF require 2 cable kit P/N: 784606-B21

Maximum internal storage

	Capacity	Configuration
Hot Plug LFF SAS	80TB	8 x 10TB
Hot Plug LFF SATA	80TB	8 x 10TB
Hot Plug SFF SAS	32TB	16 x 2TB
Hot Plug SFF SATA	32TB	16 x 2TB
Non-Hot Plug LFF SATA	40TB	10 x 4TB
Hot Plug LFF SAS SSD	12.8TB	8 x 1.6TB
Hot Plug LFF SATA SSD	30.72TB	8 x 3.84TB
Hot Plug SFF SAS SSD	30.72TB	16 x 1.92TB
Hot Plug SFF SATA SSD	61.44TB	16 x 3.84TB

Power supply

HPE 550 W FIO power supply
HPE 900 W AC 240 V dc redundant power supply

NOTE:

Each redundant power supply backplane can support up to two (2) power input modules.Non-redundant configurations with a single power input module installed can provide up to 900 W (200 – 240 V ac) and up to 550 W (100 – 127 V ac) of power
Redundant configurations with twopower input modules installed can provide up to 800 W (200 – 240 V ac) and up to 550 W (100 –127 V ac) of power

Rack options

HPE T/R conv tray universal kit

System fans

	Non-redundant	Redundant

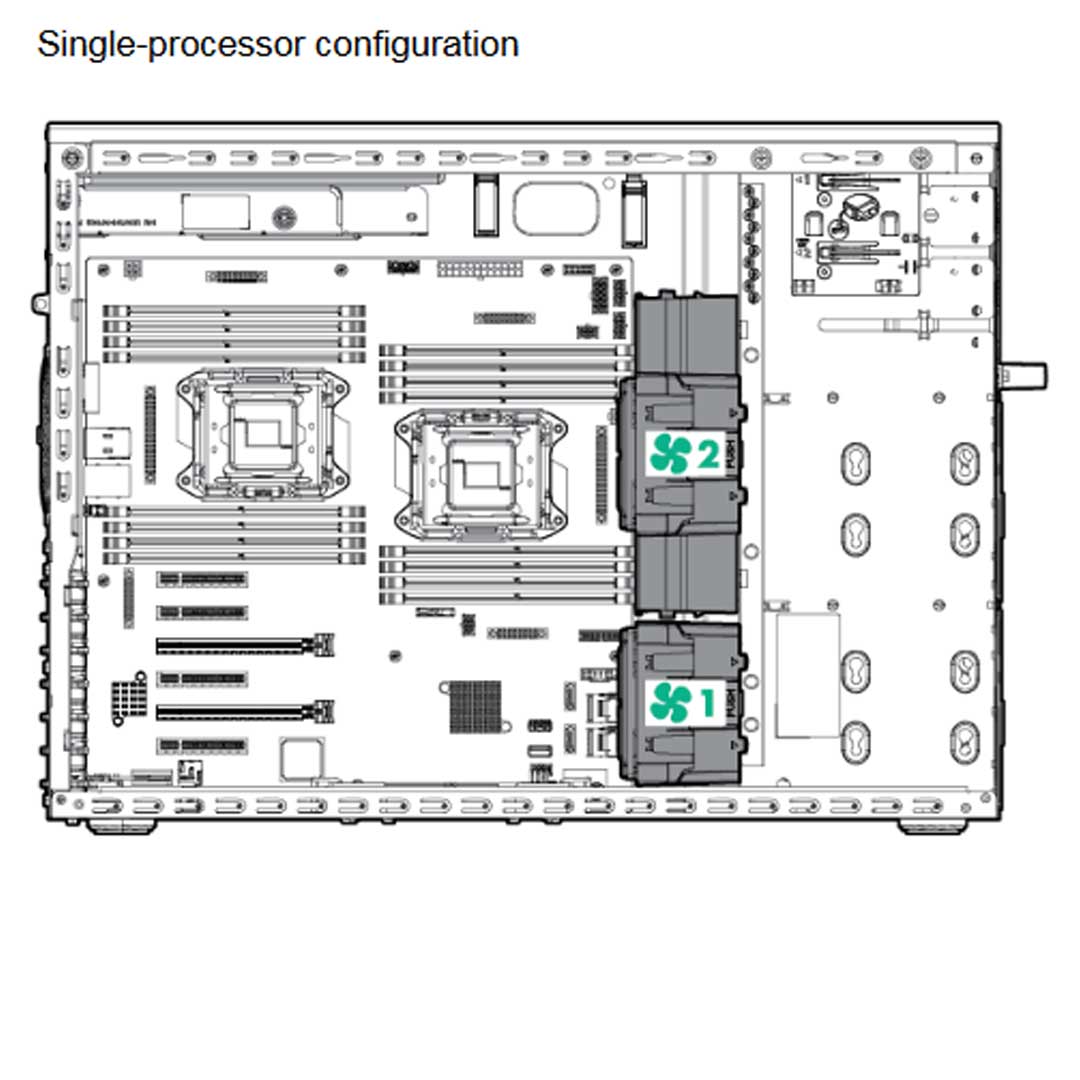

1 P model	2 fans	NA
NOTE: Two (2) Non-hot plug, non-redundant fans ship as standard

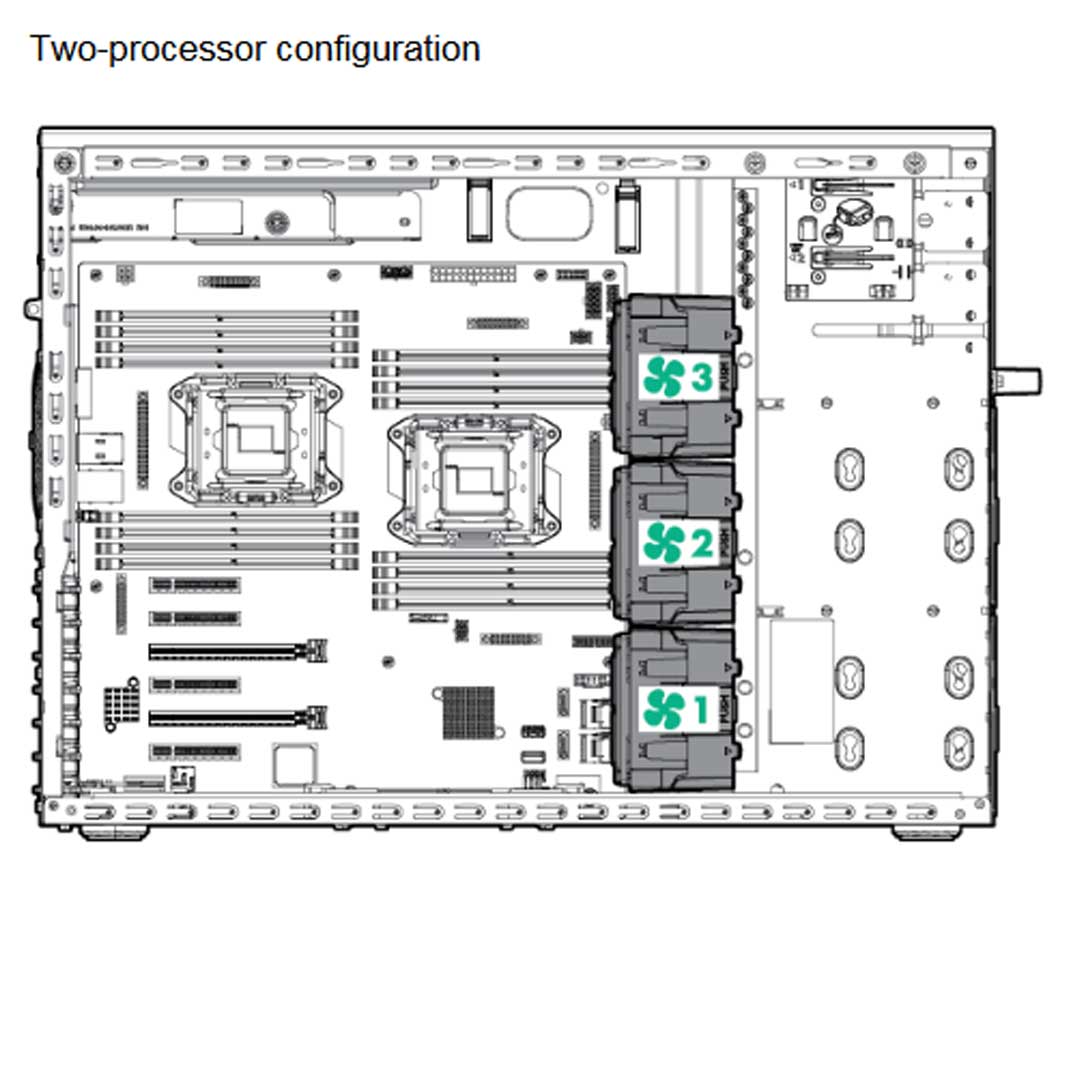

2 P model	3 fans	NA
NOTE: Third fan is shipped with 2nd CPU kit. Third fan is only required in 2P configurations

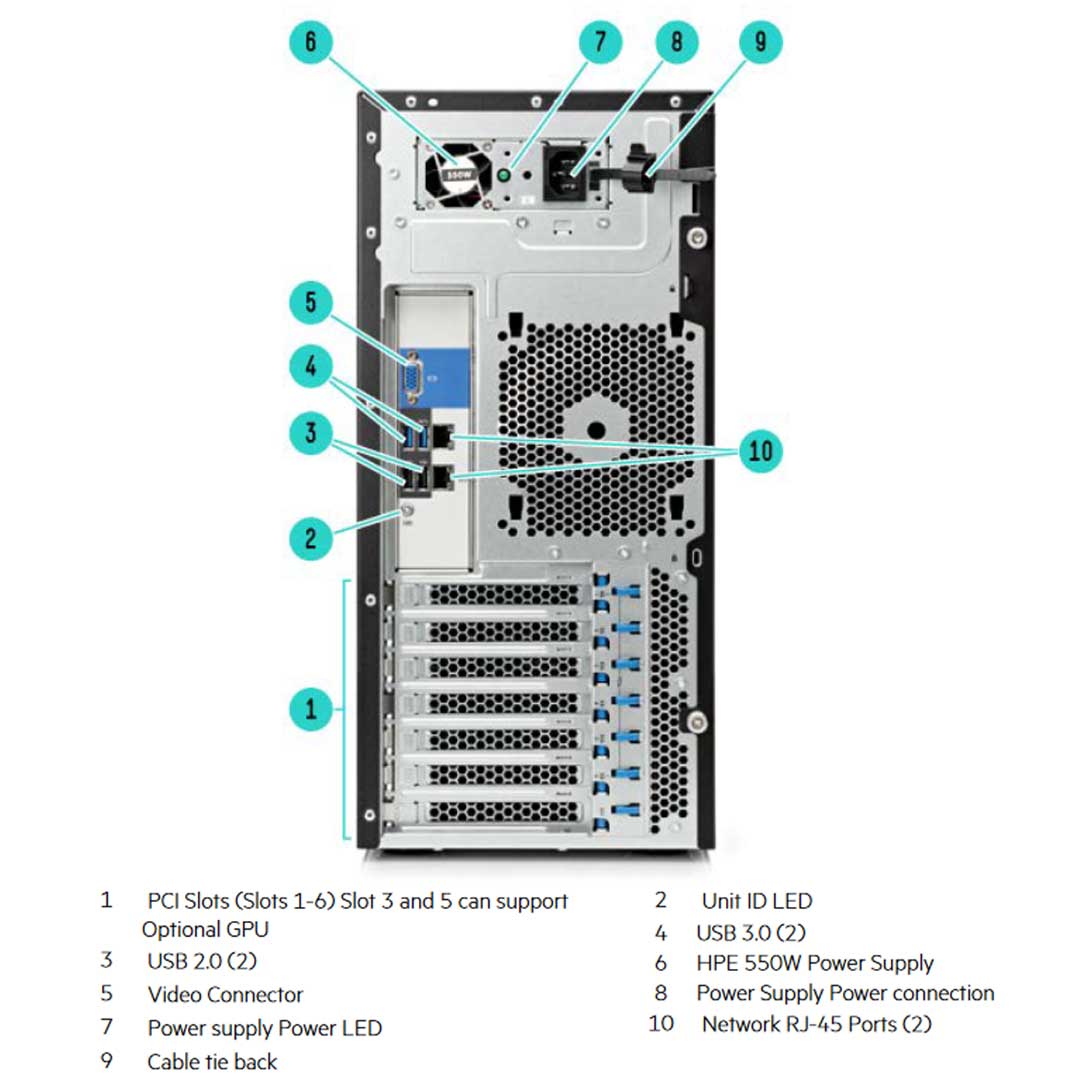

Interfaces

Video	1 (Rear)
Network RJ-45 (Ethernet)	2
HPE iLO remote management network port	2Gb dedicated
NOTE: Dedicated port for iLO is optional
Micro SD Slot	1 (Internal)
NOTE: The Micro-SD slot is not a hot-pluggable device. Users should not attempt to plug aMicro-SD card into the Micro-SD slot while the server is powered
USB 3.0	5 (2 rear, 1 internal, 2 front)
USB 2.0	3 (2 rear, 1 internal)

U
