SKU: X63V7

Dell Poweredge PERC SAS Cable | X63V7

Name: Dell Poweredge PERC SAS Cable | X63V7
Brand: Dell
SKU: X63V7
Price: 89.95 USD
Availability: InStock

Dell

| Cables

.price-ui--loading { display: block !important; opacity: 1 !important; }

$89.95

Cable Specs

Type: SAS Cable Assembly
Interface: 2x SFF-8643 (Right Angle)
Electrical Interface: SAS-3 12Gbps
Cable Length: 50cm / 65cm
Form Factor: Internal Flat Ribbon
Compatibility: Dell PowerEdge R640, R740
Controller Support: PERC H350, H350i, H750, H755, H755 MX, H755N Front NVMe

Part Numbers:

X63V7

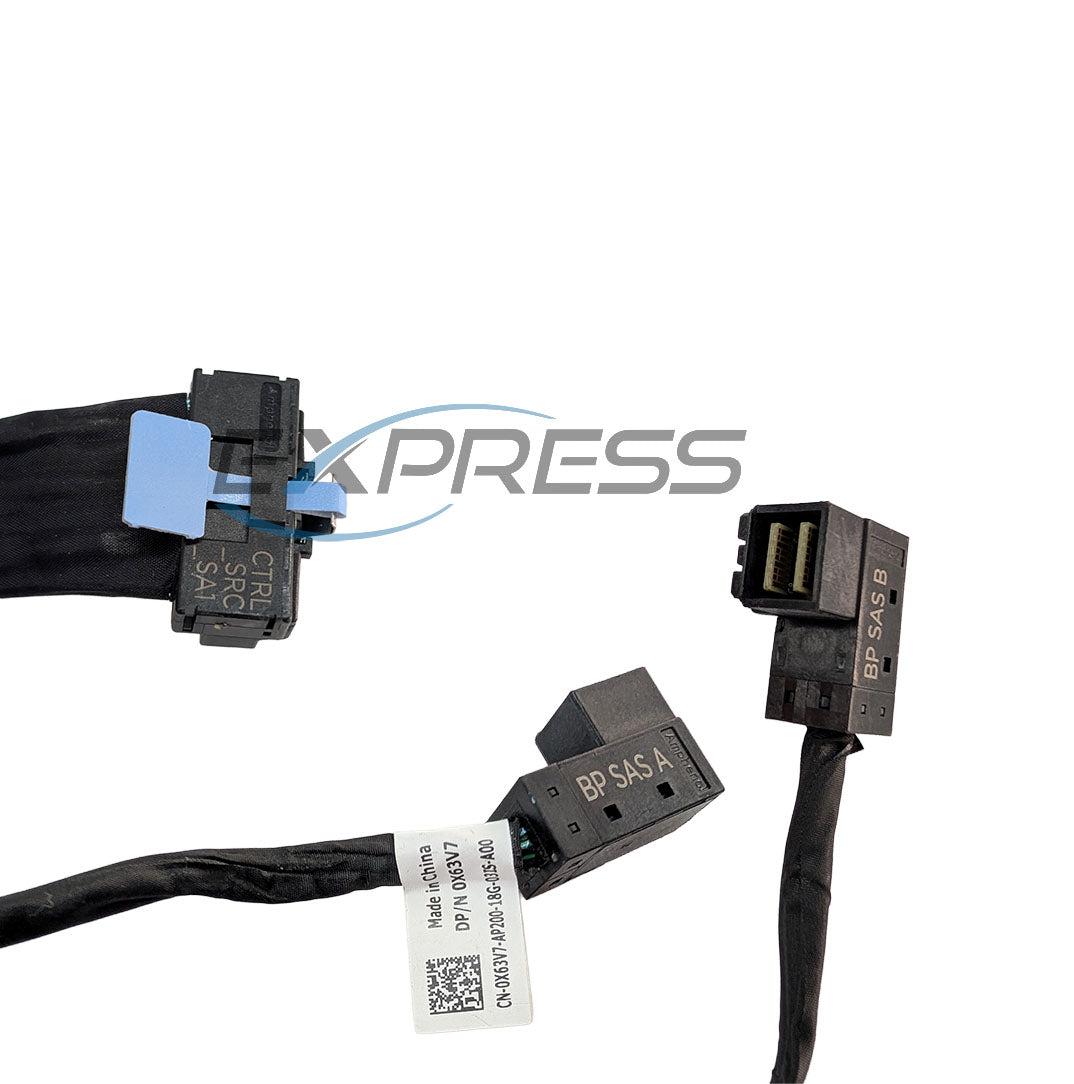

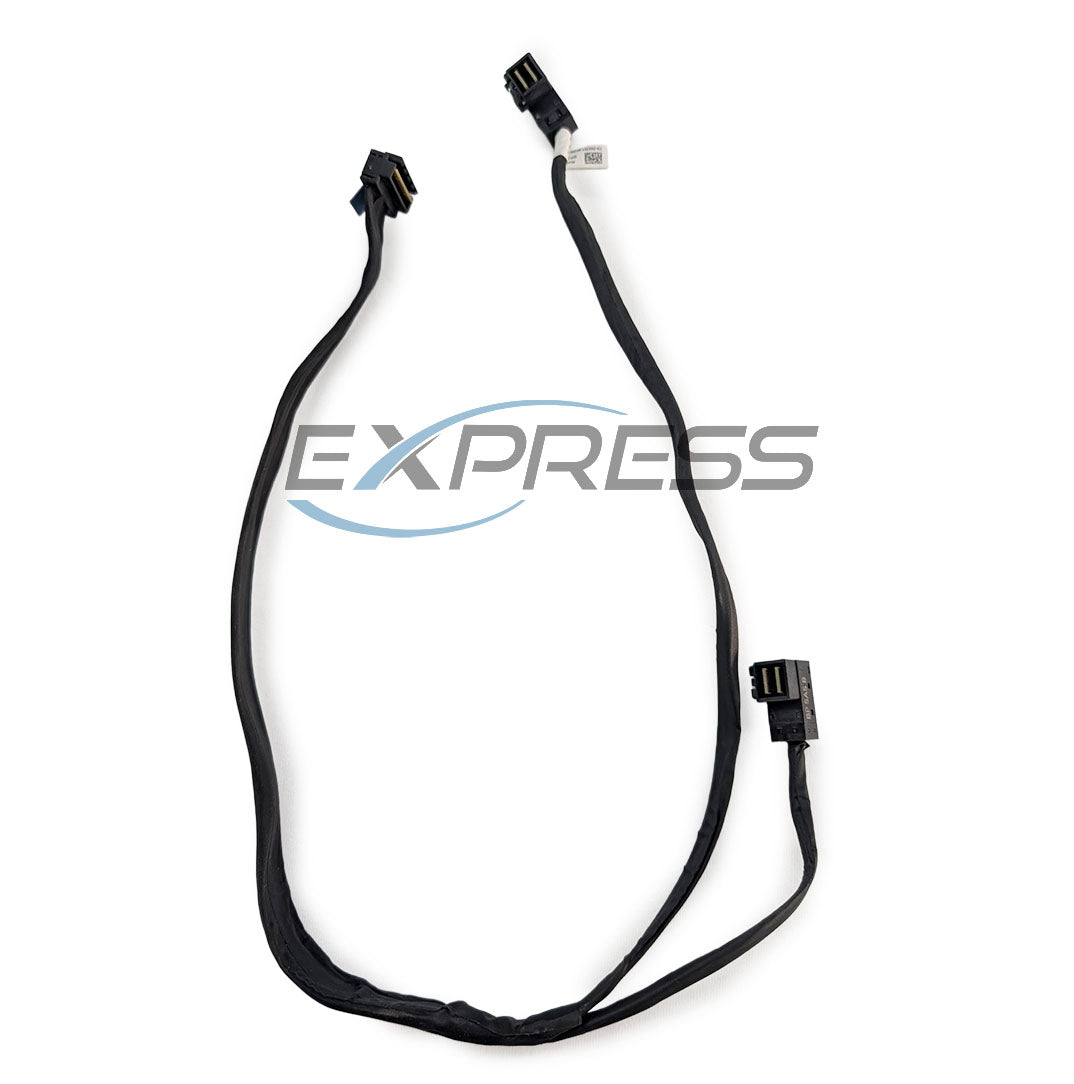

The Dell PowerEdge PERC SAS Cable X63V7 is a high-performance internal cable designed to connect Dell PERC RAID controllers to the backplane of PowerEdge servers. With two right-angle SFF-8643 connectors and support for SAS-3 12Gbps, it ensures reliable and fast data transmission within the server chassis.

Compatible with Dell PowerEdge R640 and R740 servers, this cable supports various PERC controllers. Its internal flat ribbon design allows for efficient cable management and optimal airflow within the server.

Base Standard Capabilities

Feature	PERC H355 adapter SAS	PERC H355 front SAS	PERC H350 adapter SAS	PERC H350 Mini Monolithic SAS
RAID levels	0, 1, 10	0, 1, 10	0, 1, 10	0, 1, 10
Non–RAID	Yes	Yes	Yes	Yes
Enclosures per port	Not applicable	Not applicable	Not applicable	Not applicable
Processor	Broadcom RAID-onchip, SAS3816 chipset	Broadcom RAID-onchip, SAS3816 chipset	Broadcom RAID-onchip, SAS3816 chipset	Broadcom RAID-onchip, SAS3816 chipset
Battery backup unit	No	No	No	No
Local Key Management security	No	No	No	No
Controller queue depth	1536	1536	1536	1536
Secure enterprise key manager security	No	No	No	No
Non-volatile cache	No	No	No	No
Cache memory	Not applicable	Not applicable	Not applicable	Not applicable
Cache function	Write through, no read ahead	Write through, no read ahead	write through, no read ahead	write through, no read ahead
Max no of VDs in RAID mode	32	32	32	32
Max no of disk groups	32	32	32	32
Max no of VDs per disk group	16	16	16	16
Hot swap devices supported	Yes	Yes	Yes	Yes
Autoconfig	Yes	Yes	Yes	Yes
Hardware XOR engine	Yes	Yes	Yes	Yes
Online capacity expansion	Yes	Yes	Yes	Yes
Dedicated and global hot spare	Yes	Yes	Yes	Yes
Drives types	3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS, Gen3 (8 GT/s)	3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS, Gen3 (8 GT/s)	3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS, Gen3 (8 GT/s)	3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS, Gen3 (8 GT/s)
VD strip size	64 KB	64 KB	64 KB	64 KB
PCIe support	Gen 4	Gen 4	Gen 4	Gen 4
SAS/SATA maximum drive support	Without SAS Expander: 16 With SAS Expander: Limited by platform offering	Without SAS Expander: 16 With SAS Expander: Limited by platform offering	Without SAS Expander: 8 drives per controller With SAS Expander: Limited by platform offering	Without SAS Expander: 8 drives per controller With SAS Expander: Limited by platform offering
NVMe maximum drive support	Not applicable	Not applicable	Not applicable	Not applicable

Spec Sheet 4

Model & Form Factors	Interface Support	PCI Support	SAS Connectors	Cache Memory	Write Back Cache	RAID Levels	Max Drive Support	RAID Support
H755N Front (NVMe Only)	Gen3 (8 GT/s) NVMe Gen4 (16 GT/s) NVMe	PCIe Gen 4	2x8 Internal	8GB NV	Flash Backed Cache	0,1,5,6,10,50,60	8/per controller	Hardware
H755 Adapter FH	3 Gbps SATA 6 Gbps SATA/SAS 12 Gbps SATA/SAS Gen3 (8 GT/s) NVMe Gen4 (16 GT/s) NVMe	PCIe Gen 4	2x8 Internal	8GB NV	Flash Backed Cache	0, 1, 5, 6, 10, 50,60	16/controller 50 with SAS Expander *Platform limit	Hardware RAID
H755 Adapter LP		PCIe Gen 4	2x8 Internal	8GB NV	Flash Backed Cache	0, 1, 5, 6, 10, 50,60	16/controller 50 with SAS Expander *Platform limit	Hardware RAID
H755 Front (SAS/SATA Only)	12Gb/s SAS 6Gb/s SAS/SATA 3Gb/s SAS/SATA	PCIe Gen 4	2x8 Internal	8GB NV	Flash Backed Cache	0,1,5,6,10,50,60	16/controller 50 with SAS Expander *Platform limit	Hardware RAID
H755 MX	3 Gbps SATA 6 Gbps SATA/SAS 12 Gbps SATA/SAS Gen3 (8 GT/s) NVMe Gen4 (16 GT/s) NVMe	PCIe Gen 4	1x8 Internal	8GB NV DDR4 2666MT/s	Flash Backed Cache	0, 1, 5, 6, 10, 50,60	8, Limited by platform	N/A
H750 Adapter FH	12Gb/s SAS 6Gb/s SAS/SATA 3Gb/s SAS/SATA *SAS/SATA ONLY	PCIe Gen 4	1x8 Internal	8GB NV	Flash Backed Cache	0,1,5,6,10,50,60	8/controller 50 with SAS Expander *Platform limit	Hardware RAID
H750 Adapter LP	12Gb/s SAS 6Gb/s SAS/SATA 3Gb/s SAS/SATA *SAS/SATA ONLY	PCIe Gen 4	1x8 Internal	8GB NV	Flash Backed Cache	0,1,5,6,10,50,60	8/controller 50 with SAS Expander *Platform limit	Hardware RAID
H355i Adapter FH	12Gb/s SAS 6Gb/s SATA	PCIe Gen 4	2x8 Internal	No Cache	No Cache	0,1,10	Up To 32 RAID or 32 Non-RAID	Hardware
H355i Adapter LP	12Gb/s SAS 6Gb/s SATA	PCIe Gen 4	2x8 Internal	No Cache	No Cache	0,1,10	Up To 32 RAID or 32 Non-RAID	Hardware
H355 Front	12Gb/s SAS 6Gb/s SATA	PCIe Gen 4	2x8 Internal	No Cache	No Cache	0,1,10	Up To 32 RAID >or 32 Non-RAID	Hardware
HBA355 Front (internal)	12Gb/s SAS 6Gb/s SAS/SATA 3Gb/s SAS/SATA	PCIe Gen 4	2x8 Internal	N/A	N/A	N/A	16/controller 50 with SAS Expander *Platform limit	N/A
HBA355i Adapter FH	12Gb/s SAS 6Gb/s SAS/SATA 3Gb/s SAS/SATA	PCIe Gen 4	2x8 Internal	N/A	N/A	N/A	16/controller 50 with SAS Expander *Platform limit	N/A
HBA355i Adapter LP	12Gb/s SAS 6Gb/s SAS/SATA 3Gb/s SAS/SATA	PCIe Gen 4	2x8 Internal	N/A	N/A	N/A	16/controller 50 with SAS Expander *Platform limit	N/A
HBA355e Adapter FH	12Gb/s SAS 6Gb/s SAS/SATA 3Gb/s SAS/SATA	PCIe Gen 4	4x4 External	N/A	N/A	N/A	240	N/A
HBA355e Adapter LP	12Gb/s SAS 6Gb/s SAS/SATA 3Gb/s SAS/SATA	PCIe Gen 4	4x4 External	N/A	N/A	N/A	240	N/A
H350 Adapter FH	12Gb/s SAS 6Gb/s SATA	PCIe Gen 4	1x8 Internal	No Cache	No Cache	0,1,10	Up To 32 RAID or 32 Non-RAID	Hardware
H350 Adapter LP	12Gb/s SAS 6Gb/s SATA	PCIe Gen 4	1x8 Internal	No Cache	No Cache	0,1,10	Up To 32 RAID or 32 Non-RAID	Hardware
H350 Mini Mono	12Gb/s SAS 6Gb/s SATA	PCIe Gen 4	2x4 Internal	N/A	N/A	0, 1, 10	Without SAS Expander: 8 drives per controller With SAS Expander: Limited by platform offering	N/A
HBA350i Adapter (internal)	12Gb/s SAS 6Gb/s SAS/SATA 3Gb/s SAS/SATA	PCIe Gen 4	2x8 Internal	N/A	N/A	N/A	16/controller 50 with SAS Expander *Platform limit	N/A
HBA350 MX (internal)	12Gb/s SAS 6Gb/s SAS/SATA 3Gb/s SAS/SATA	PCIe Gen 4	1x8 Internal	N/A	N/A	N/A	8 *Platform limit	N/A
