R760 Riser Config 2. 4 x8 FH (Gen5) + 2x 8FH + 2 x16 LP

Name: R760 Riser Config 2. 4 x8 FH (Gen5) + 2x 8FH + 2 x16 LP
Brand: Dell
Availability: InStock

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Riser Config Specs

Configurations	Expansion card risers	PCIe Slots	Form factor	Controlling processor	Slot's electrical bandwidth/ physical connector

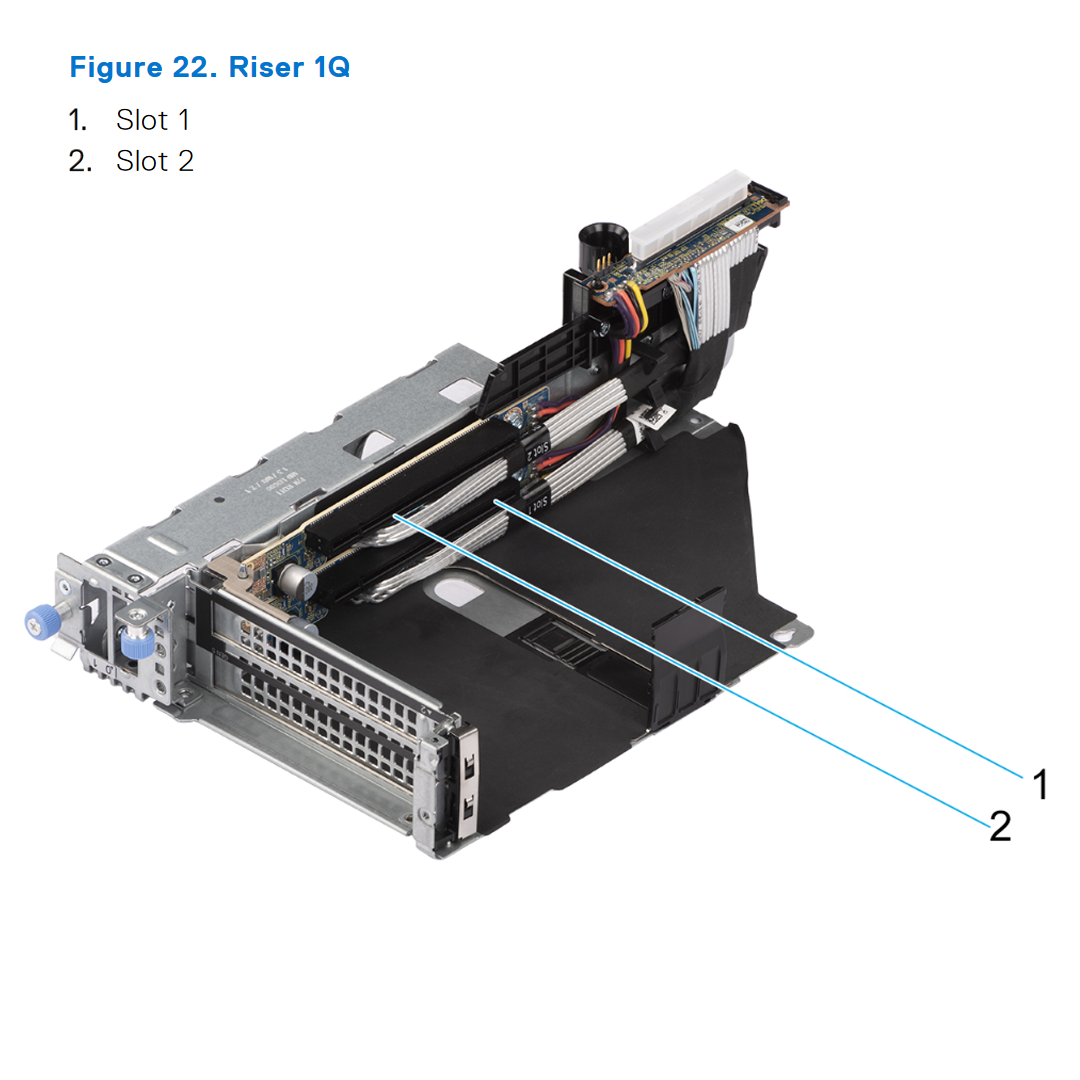

Config 2. 4 x8 FH (Gen5) + 2x 8FH + 2 x16 LP	R1Q	1	Full height	Processor 1	PCIe Gen5 x8 (x16 connector)
	R1Q	2	Full height	Processor 1	PCIe Gen5 x8 (x16 connector)

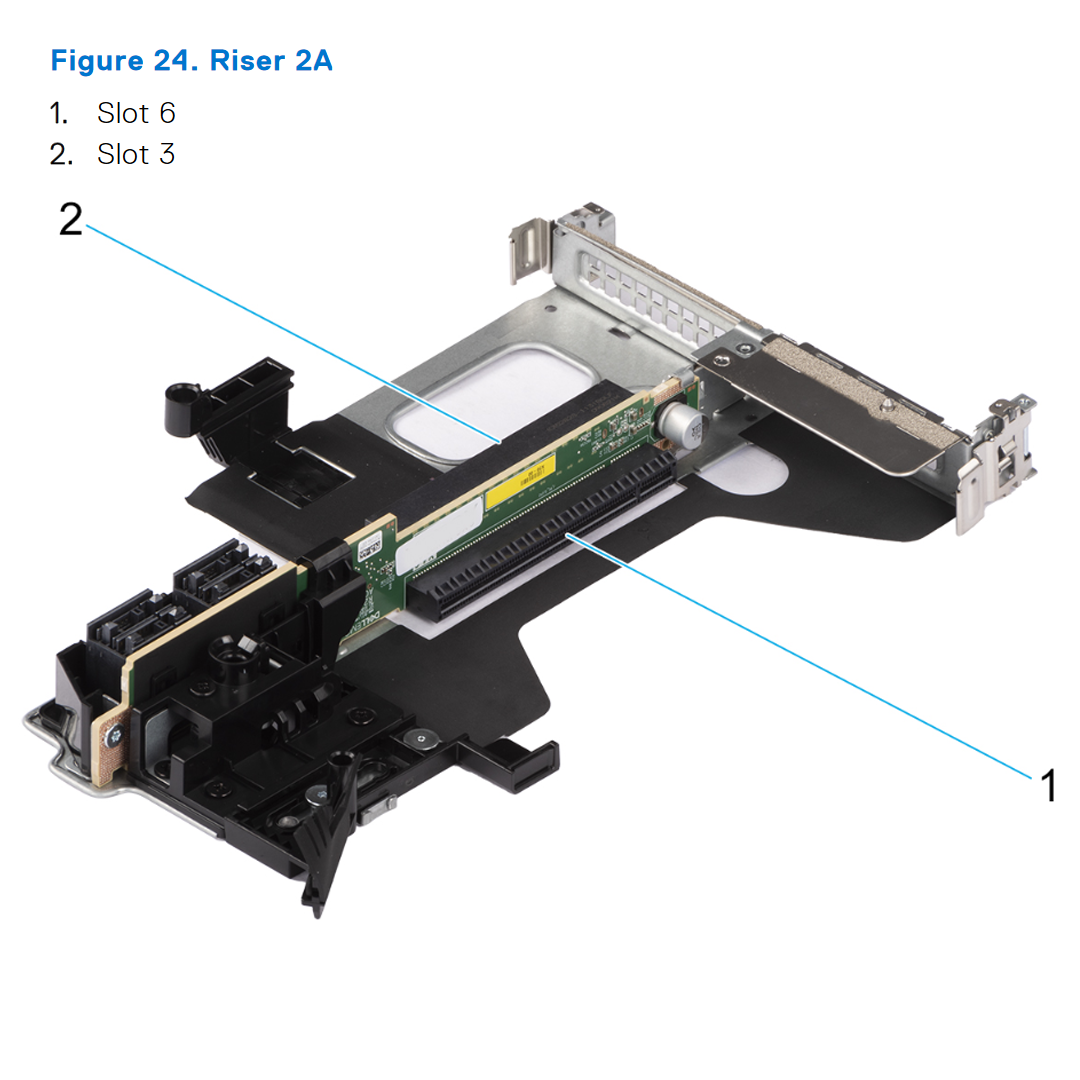

	R2A	3	Low profile	Processor 1	PCIe Gen4 x16 (x16 connector)
	R2A	6	Low profile	Processor 2	PCIe Gen4 x16 (x16 connector)

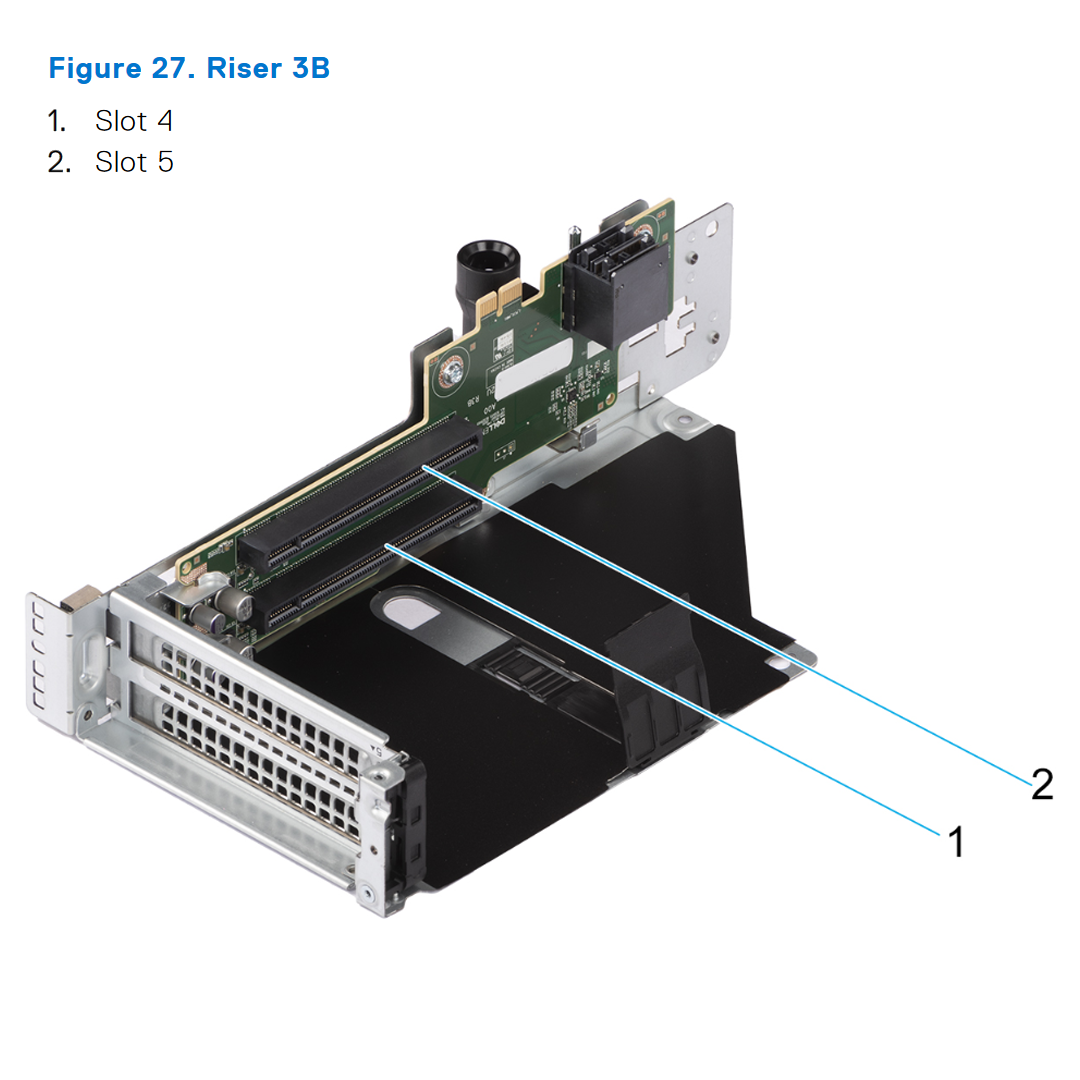

	R3B	4	Full height	Processor 2	PCIe Gen4 x8 (x16 connector)
	R3B	5	Full height	Processor 2	PCIe Gen4 x8 (x16 connector)
	R4Q	7	Full height	Processor 2	PCIe Gen5 x8 (x16 connector)
	R4Q	8	Full height	Processor 2	PCIe Gen5 x8 (x16 connector)
