Dell PowerEdge T330 Tower Server Chassis (8x3.5")


Price: $270.00

Brand:
MPN:
DPE-T330-8x3.5-Chassis
Type:
Chassis
Condition:
ECS Refurbished & Tested

Request Quote

Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.


-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

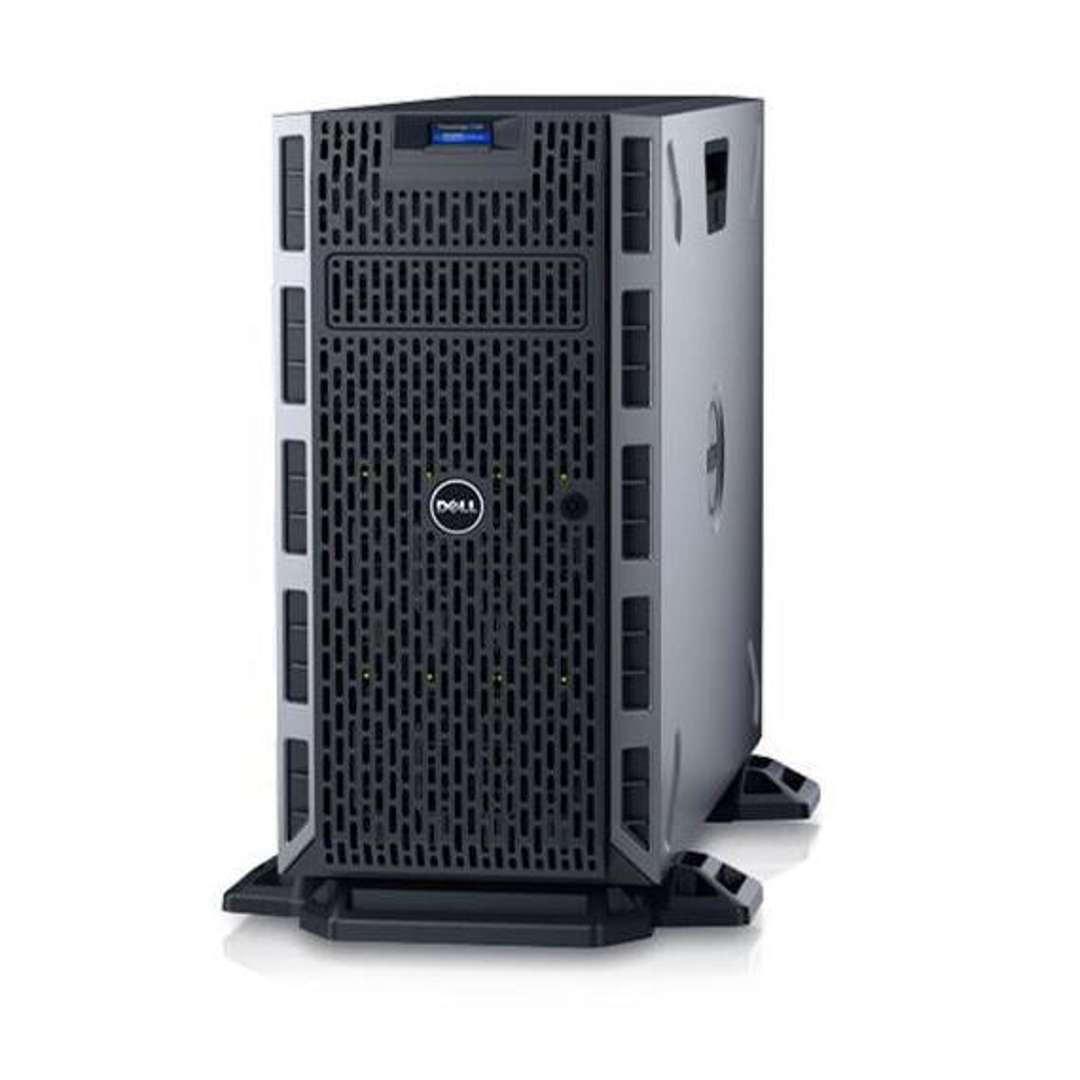

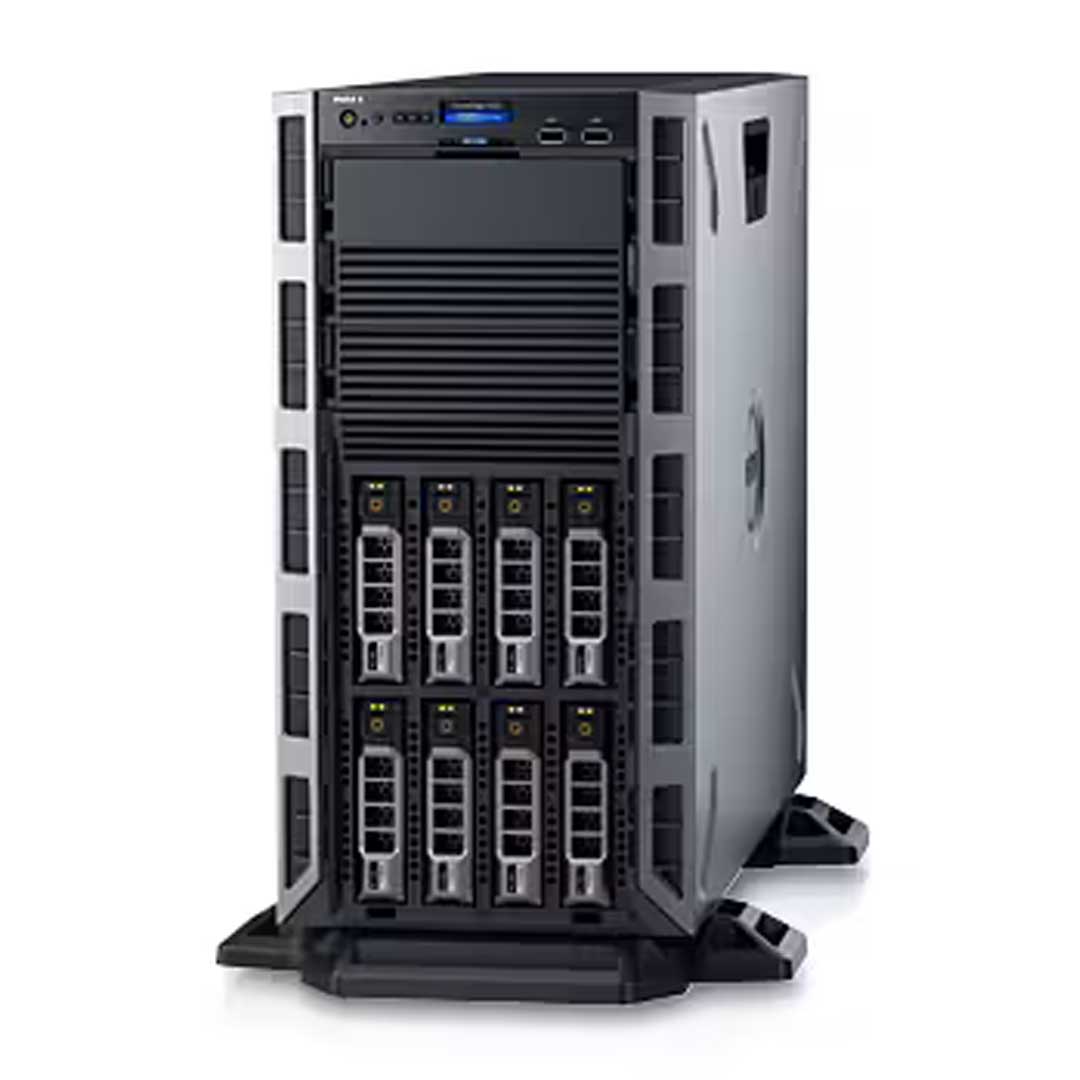

Dell PowerEdge T330 Tower Server Chassis (8x3.5")

Quick Specs

Form Factor:

Tower server | 5U (Rack Conversion)

Processor | Max: N/A

1x Intel E3-1200 v6, or Pentium, or i3 Core, or Celeron

Memory | Max: 64GB

4 DDR4 UDIMM 2400Mhz

Storage | Max: N/A

8x 3.5” hot-plug SAS/NL-SAS/SATA (HDD/SSD)

Supports 2.5" HDD in 3.5" hybrid drive carrier

Boot Options

IDSDM

USB

RAID Controller:

S130 (SW RAID SATA)
PERC H330, H730, H830, 12GB SAS HBA

NIC/LOM

Broadcom® 5720 Dual Port 1Gb LOM

Remote Management:

iDRAC8 with Lifecycle Controller

PCIe Slots: 4

Slot 1: x8 PCIe 3.0

Slot 2: x16 PCIe 3.0

Slot 3: x1 PCIe 3.0 connected to PCH

Slot 4: x8 PCIe 3.0 connected to PCH

Platform Controller Hub (PCH)

GPU:

Not Supported

Powerful and expandable 1-socket rackable tower server for small and medium businesses (SMB) and remote office/branch office (ROBO).

The Dell PowerEdge T330 is an excellent first server or replacement server for driving collaboration and productivity applications in SMB. Compared to the PowerEdge T130, the T330 offers greater internal storage capacity (8 HDDs vs. 4 HDDs), hot-plug HDDs and redundant power supplies. In addition, compared to the previous-generation T320, the T330 supports the full-feature remote management of the Dell integrated Remote Access Controller (iDRAC8) with Lifecycle Controller, making the T330 highly attractive for ROBO of large institutions.


PowerEdge T330
  • 1-socket rackable tower server with choice of latest Intel Xeon E3-1200 v6 processors
  • 4 PCI-e Slots
  • Up to 4 x DDR4 UDIMMs
  • Up to 8 x 3.5" hard drives

Configurations:

This server can be a Rack or Tower Server
Supports 4x3.5" or 8x3.5" Drives.
All 2.5" Drives will be installed in a 3.5" HD Carrier.


Deliver powerful performance

Accelerate compute performance across a wide range of applications with a processor from the latest Intel Xeon processor E3-1200 v6 product family. Drive 50% faster clock speed with enhanced DDR4 memory compared to DDR3, which is 12.5% faster than the initial 2133 MT/s implementation of DDR4. Boost I/O data throughput with 4 x PCIe 3.0 slots driving 2x data throughput compared to PCIe 2.0. Deliver 2x IOPS performance with T330/PERC9 compared to the previous-generation T320/PERC8.


Accelerate application performance

Accelerate application performance while providing room for future growth with the latest Intel processors, DDR4 memory and PCIe Gen3 I/O.

  • Drive greater memory performance with 4 x DIMM slots and enhanced DDR4 memory offering 50% faster clock speed than previous-generation DDR3 which is 12.5% faster than the initial 2133 MT/s implementation of DDR4.
  • Boost data throughput with 4 x PCIe Gen 3.0 slots driving 2x data throughput compared to Generation 2.0.
  • Drive 2x IOPS performance with the PowerEdge PERC9 RAID Controller, compared to previous-generation PowerEdge T320 equipped with PERC8.
  • Ensure fast response times with the latest quad core Intel Xeon E3-1200 v6 product family, as well as flexible dual core processor options including Intel Pentium, Intel Core i3®, or Intel Celeron.

Discover greater versatility
  • Grow data storage at your own pace with up to 8 x internal 3.5" hot-plug hard drives.
  • Expand memory capacity as you grow, with support for up to 64GB total memory footprint.
  • Easily and flexibly attach peripheral devices with eight external USB ports.

Looking to Customize?

Need assistance with customization? Our sales experts will help you choose the best setup for your needs.

Start Customizing Today!

Product Specs

Base Standard Capabilities

FeaturesTechnical specification
Form factorRackable tower server (5U when racked)
DimensionsH: 430.3 mm (17.04 in); with foot 443.3 mm (17.45 in); with wheel 471.3 mm (18.55 in)
W: 218 mm (8.58 in); with foot 304.5 mm (11.98 in)
D (without bezel): front to rear wall 542.2 mm (21.33 in); front to PSU handle 578.42 mm (22.77 in)
D (with bezel): front to rear wall 558.6 mm (21.99 in); front to PSU handle 594.82 mm (23.41 in)
Processor1 processor from the following product families:
  • Intel® Xeon® processor E3-1200 v6 product family
  • Intel Pentium®
  • Intel CoreTM i3
  • Intel Celeron®
ChipsetIntel C236
Operating systemMicrosoft® Windows Server® 2012
Microsoft Windows Server 2012 R2, x64
Microsoft Windows Server 2016
Red Hat® Enterprise Linux®
VMware® Vsphere® ESXi®
SUSE Linux Enterprise Server
Memory4 2400MT/s DDR4 UDIMMs Maximum RAM: Up to 64GB
Hypervisor supportMicrosoft Windows Server (with Hyper-V® enabled)
VMware® vSphere® ESXi®
Storage
  • 2.5" SATA 7.2k
  • 2.5" SATA SSDs
  • 2.5" nearline SAS 7.2k
  • 2.5" SAS 10k HDDs
  • 2.5" SAS 15K HDDs
  • 3.5" Enterprise SATA 7.2k HDDs
  • 3.5" nearline SAS 7.2k HDDs
Drive bays4 x 3.5" bays (also supports 2.5" HDD in 3.5" hybrid drive carrier)
8 x 3.5" bays (also supports 2.5" HDD in 3.5" hybrid drive carrier)
Slots1x8 PCIe 3.0 (x16 connector)
1x4 PCIe 3.0 (x8 connector)
1x4 PCIe 3.0 (x8 connector)
1x1 PCIe 3.0 (x1 connector)
RAID controllersPERC S130, PERC H330, PERC H730, PERC H830
Network controllerBroadcom® 5720
Communications2 X 1GbE LOM
Power1 x 350W cabled PSU or up to 2 x 495W redundant PSUs
Chassis5U rackable tower
ManagementSystems management:
  • IPMI 2.0 compliant
  • Dell OpenManage Essentials
  • Dell OpenManage Mobile
  • Dell OpenManage Power Center
Remote management:
  • iDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade), 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
Dell OpenManage connections:
  • HP Operations Manager, IBM Tivoli® Netcool® and CA Network and Systems Management, Dell OpenManage Plug-in for Oracle® Database Manager
Dell OpenManage integrations:
  • Dell OpenManage Integration Suite for Microsoft System Center, Dell OpenManage Integration for VMware vCenter®
Device access8 total USB:
  • Rear: 2 x USB 3.0 + 4 x USB 2.0
  • Front: 1 x USB 2.0 + 1 x USB 3.0
Rack supportReadyRails™ II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm.
