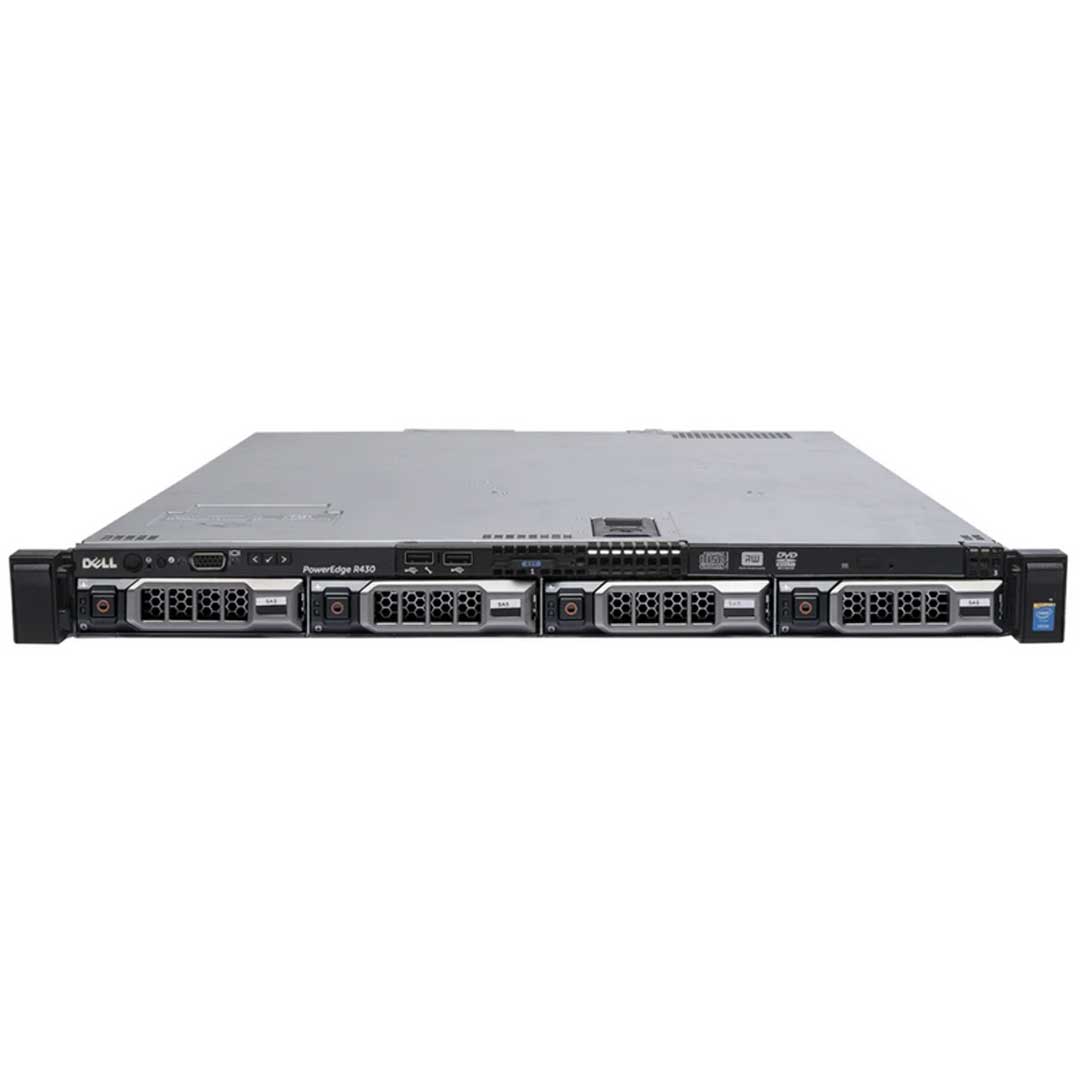

Dell PowerEdge R430 Rack Server Chassis (4x3.5") R430-4Bay

PER430-4x3.5 | Refurbished Dell PowerEdge R430 Rack Server Chassis (4x3.5")

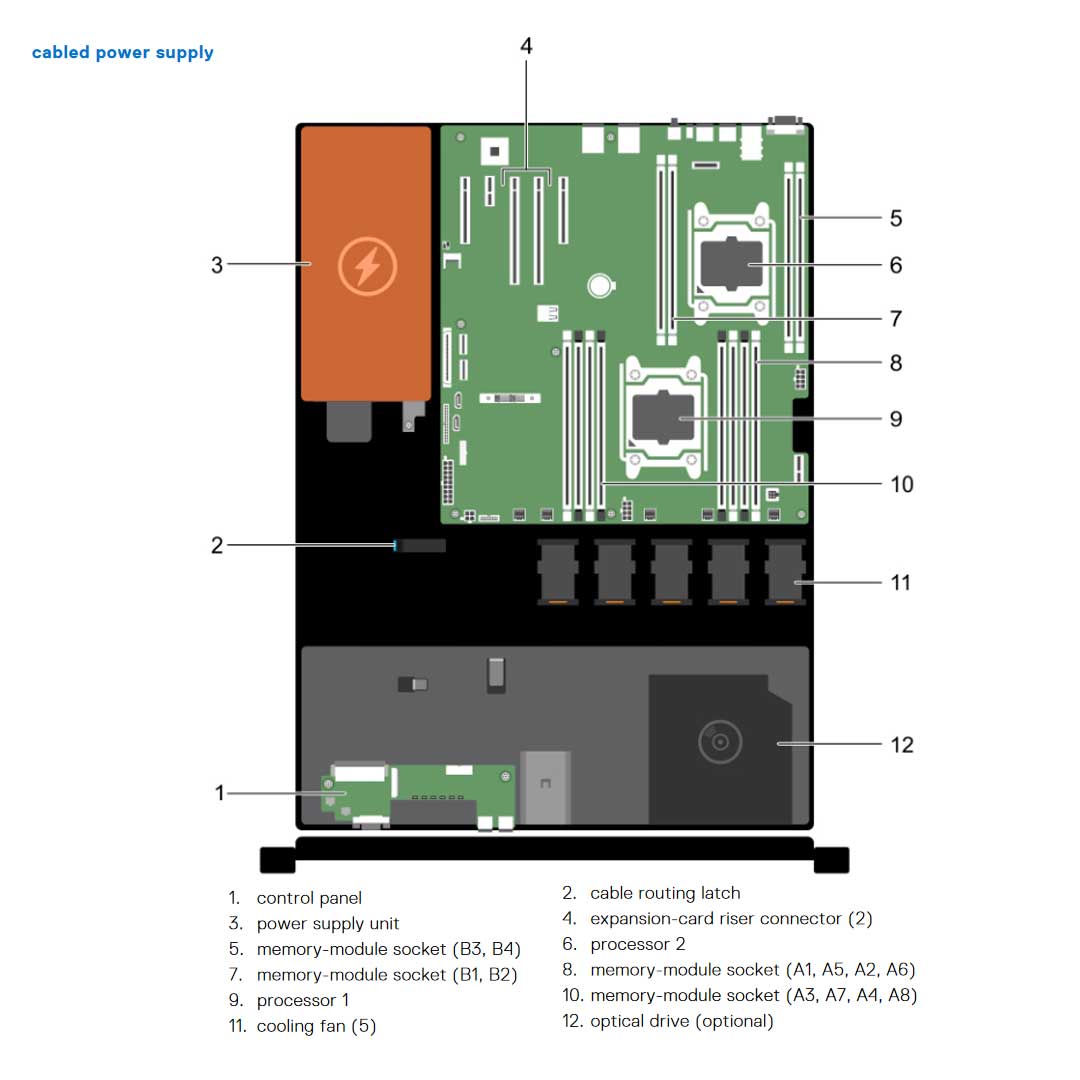

Dell PowerEdge R430 Rack Server Chassis (4x3.5") R430-internal-cabled

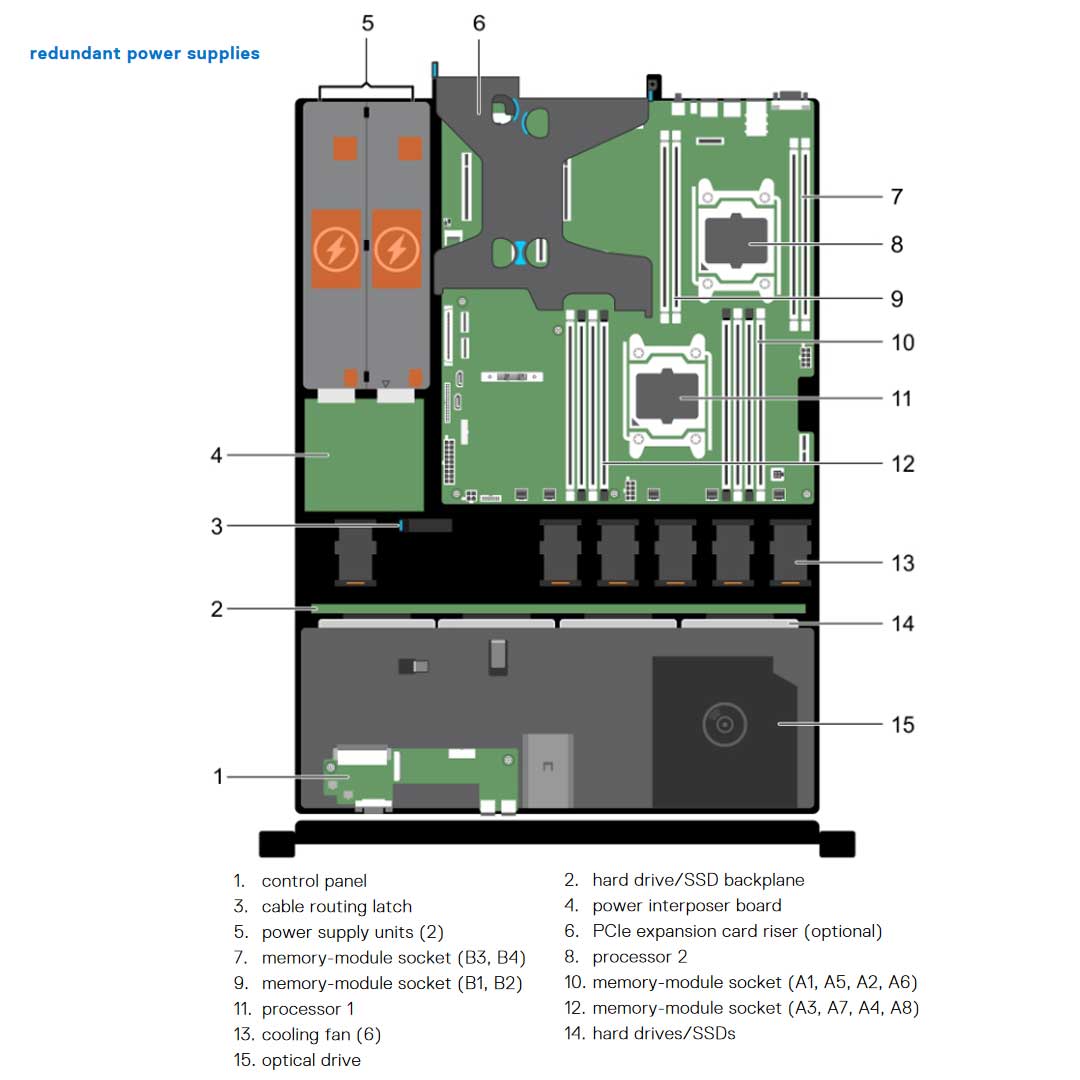

Dell PowerEdge R430 Rack Server Chassis (4x3.5") R430-internal-redundantpsu

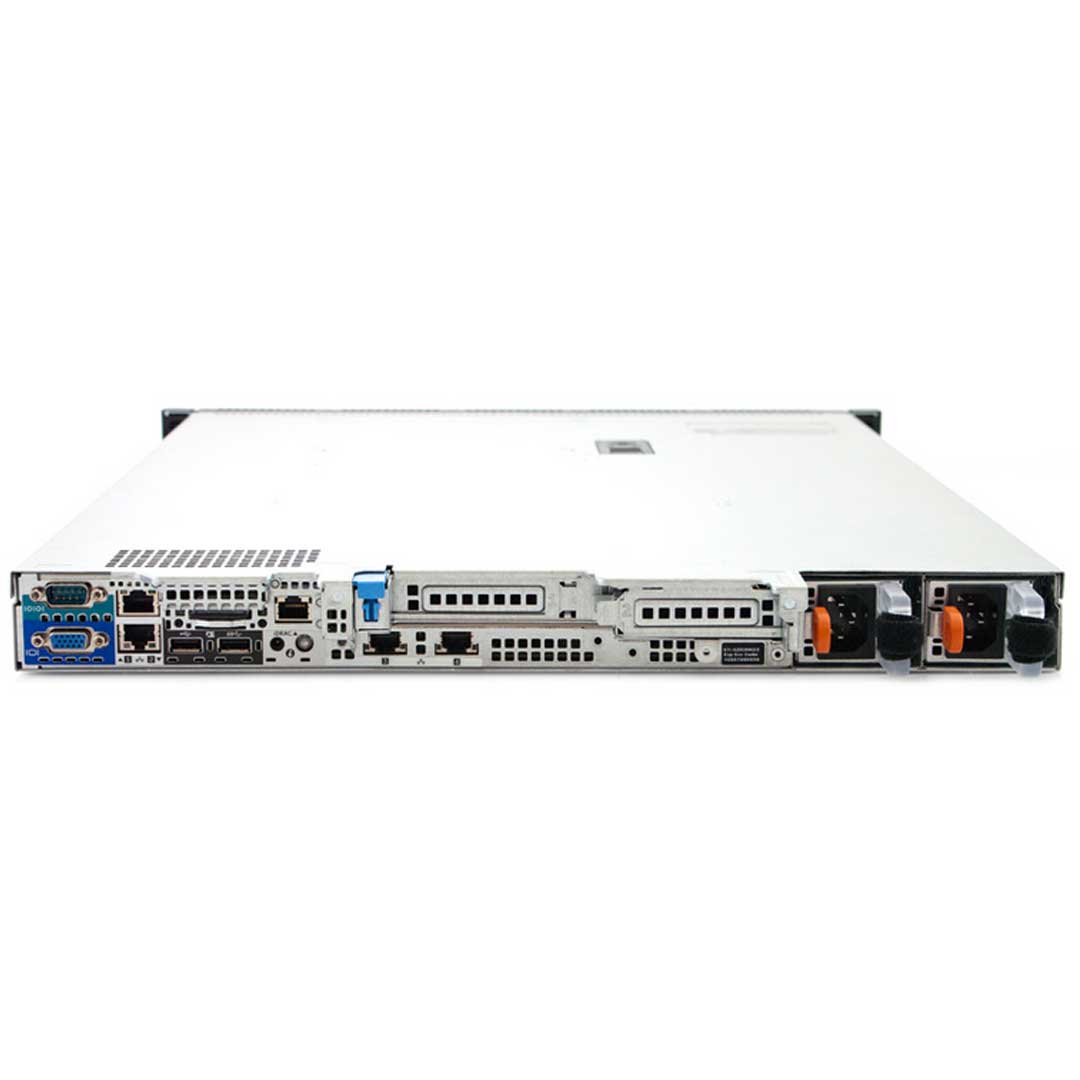

Dell PowerEdge R430 Rack Server Chassis (4x3.5") R430-rear

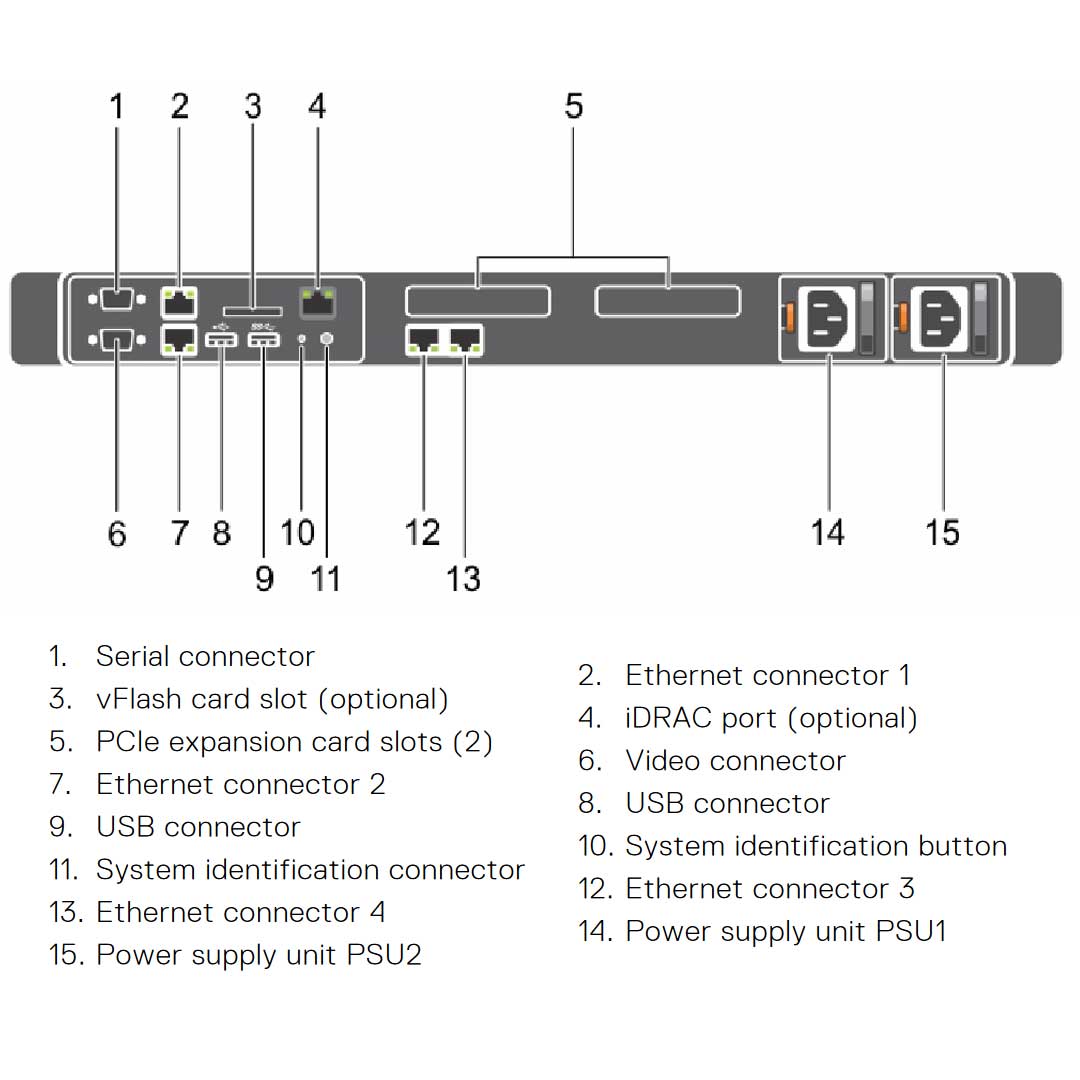

Dell PowerEdge R430 Rack Server Chassis (4x3.5") R430-rear-diagram

SKU: 073M0

Dell Poweredge R430 Rack Server Chassis (4X3.5") | 073M0

Name: Dell Poweredge R430 Rack Server Chassis (4X3.5") | 073M0
Brand: Dell
SKU: 073M0
Availability: OutOfStock

Dell

| Chassis

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

Form Factor:

short-height 1U rack server short-depth (24-inch) chassis

Processor | Max: 20 Cores

2 x Intel Xeon E5-2600v3 or v4

Memory | Max: 384GB

12 DDR4 RDIMM 2400Mhz

Storage | Max: 16TB

4x 3.5" hot-plug SAS/NL-SAS/SATA (HDD/SSD)

RAID Controller:

S130 (SW RAID) H330, H730, H730P, H830

NIC/LOM:

4 x 1GbE LOM

Boot Options:

Internal dual SD module (IDSDM)
Internal USB

Remote Management:

iDRAC8 with Lifecycle Controller

PCIe Slots:

2x PCIe x16 3.0

GPU:

None

Other Versions

Ideal for:

Virtualization

PowerEdge R430 Supported Drive Configuration

Short-height, short-depth chassis
Up to 4 x 3.5" Cabled HDD
Up to 4 x 3.5" Hot Swap HDD/SSD
Up to 8 x 2.5" Hot Swap HDD/SSD
Up to 10 x 2.5" Hot Swap HDD/SSD
NOTE - SSD/SAS/SATA hard drives cannot be mixed in a system.

View of drive options for the R420 Rack Server

Introducing the PowerEdge R430 - a powerful, two-socket entry rack server designed for peak performance, configuration flexibility, high availability and intuitive management in a compact package. With its short-height (1U) and short-depth (24-inch) chassis, the R430 overcomes space constraints without compromising on performance or storage capacity.

The R430 boasts up to 12 DDR4 DIMMs, 2 PCIe 3.0 I/O slots and scalable internal storage capacity of up to 10 x 2.5" hard drives. This, combined with its energy-efficient processors, memory, power supplies, and Fresh Air 2.0 capability, ensures maximum operational efficiency, driving better ROI and saving time for IT administrators.

Deliver peak performance

Equipped with the latest Intel Xeon E5-2600 v4 processors, the R430 delivers outstanding performance across a wide range of workloads, including high-performance computing (HPC), web tech and infrastructure scale-out, collaboration and productivity applications, surveillance and site security. It is also an excellent choice for dedicated backup or development server needs.

Maximize operational efficiency

The integrated Dell Remote Access Controller 8 (iDRAC8) with Lifecycle Controller automates deployment, making it easier and quicker to deploy servers. IT administrators can monitor and update servers with intuitive, automated tools, while the expandable platform is ready for virtualization and high-availability clustering, allowing for greater versatility and adaptability to changing workload conditions.

Discover greater versatility

Whether it's for HPC, web serving, infrastructure scale-out, surveillance, site security, or dedicated backup or development needs, the PowerEdge R430 delivers peak 2-socket performance in a compact package, making it an excellent fit for space-constrained data centers.

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

Feature	PowerEdge R430 Technical specification
Form factor	1U rack server
Dimensions and weight	H: 42.8 mm (1.68 in) W: 482.4 mm (18.99 in) with rack latches; 434.0 mm (17.08 in) without rack latches D: 607.0 mm (23.9 in) without bezel; 676.92 mm (26.7 in) with bezel	Weight 16.73 kg (36.88 lb) empty 19.9 kg (43.87 lb) maximum
Processor	Intel® Xeon® processor E5-2600 v4 product family Processor sockets: 2 Chipset: C610 Internal interconnect: Up to 9.6GT/s Cache: 2.5MB per core; core options: 4, 6, 8, 10, 12, 14, 16, 18, 20
Memory	DDR4 RDIMMs at up to 2400MT/s 12 DIMM slots: 4GB/8GB/16GB/32GB
I/O slots	2 PCIe 3.0
Storage	SAS, SATA, nearline SAS, SSD Multiple R430 chassis available: 10 x 2.5" hot-plug drives 8 x 2.5" hot-plug drives 4 x 3.5" hot-plug drives 4 x 3.5" cabled drives
RAID controllers	Internal controllers: PERC S130 (SW RAID), PERC H330, PERC H730, PERC H730P External HBAs (RAID): PERC H830
Communications	4 x 1GbE LOM
Power supplies	450W, 550W PSU
Management	Systems management IPMI 2.0 compliant Dell OpenManage Essentials Dell OpenManage Mobile Dell OpenManage Power Center Remote management iDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade), 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)	Dell OpenManage Connections: Dell OpenManage Integration Suite for Microsoft® System Center Dell OpenManage Integration for VMware® vCenter™ Dell OpenManage Integrations: HP Operations Manager, IBM Tivoli® Netcool® and CA Network and Systems Management Dell OpenManage Plug-in for Oracle® Database Manager
Optional supported hypervisors	Citrix® XenServer, VMware vSphere® ESXi®, Red Hat® Enterprise Virtualization®
Operating system	Microsoft® Windows Server® 2016 Microsoft Windows 2012 Microsoft Windows Server 2012 R2, x64 Red Hat® Enterprise Linux® VMware® vSphere® ESXi® SUSE® Linux Enterprise Server
Rack support	ReadyRails™ II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm.
