Total:- $495.00

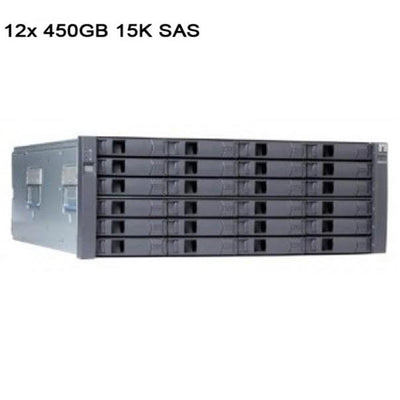

Refurbished NetApp DS4243 with 12x 450GB SAS 15K HDDs (X411A-R5) Disk Shelf achieves both storage and performance in a 4U form factor. The DS4243 has the ability to use performance SAS drives, SSD's or high-capacity SATA disk drives allowing you to expand your NetApp FAS storage with additional disk capacity for your array. This DS4243 is populated with twelve 450GB SAS 15K Drives (X411A-R5) and comes with a 1-Year Parts Replacement Warranty and all necessary parts.
| NETAPP DS4243 DISK SHELF WITH 12X 450GB SAS 15K HDDS | |
|---|---|
| Form Factor | 4U |
| Drives per Enclosure | 24 |
| Supported Drive Types |
3.5" 15K SAS 300GB, 450GB, 600GB 3.5" SSD 100GB SSD 3.5" 7.2K SATA 1TB, 2TB, 3TB |
| Supported Controllers |
With Disk Drives: FAS200, FAS/V3070, FAS/3100, FAS/V3200, FAS/V6000. FAS/V6200 series With SSD's: FAS/V3160, FAS/V3170, FAS/V3240, FAS/V3270, FAS/V6040, FAS/V6080, FAS/V6200 series |
| Data ONTAP Version Required | 7.3.3P2 or later 8.0P1 or later SSDs require 8.0.1 or later 3TB SATA requires DATA ONTAP 8.0.2 or later |
| Shelf architecture and I/O Bandwidth | SAS Operating at 6Gbps Connections require PCIe SAS HBA card or available embedded SAS port |
| Shelf I/O modules | Dual IOM3 modules |
| Power Supplies and Cooling | Redundant, Hot-pluggable integrated Power Supply and Fan Assemblies Dual supplies required for high-capacity disk drives and SSD's and Quadruple supplies required for performance disk drives |
| AC Input Power Voltage | 50 - 60 Hz |
| Weight | 110 lbs |
| Dimensions | Height: 7.00" Width: 19.00" Depth: 24.00" |
| Temperature | Operating Temp: 50ºF to 104ºF Non-Operating Temp: -40ºF to 158ºF |
| AC Input Power Voltage (Autoranging, VRMS) | 100-120V or 200-240V |
| Compatible SAS Cables | X6557-R6 - SAS Cable .5M (QSFP-QSFP) (112-00176) X6558-R6 - SAS Cable 2M (QSFP-QSFP) (112-00177) X6559-R6 - SAS Cable 5M (QSFP-QSFP) (112-00178) |
| Compatible Ethernet Cables | X6560-R6 - RJ45 to RJ45 .5M CAT6 (112-00194) X6561-R6 - RJ45 to RJ45 2M CAT6 (112-00195) X6562-R6 - RJ45 to RJ45 5M CAT6 (112-00196) |
| Compatible Filers | FAS6280, FAS6280A, FAS6240, FAS6240A, FAS6210, FAS6210A, FAS3270A, FAS3270, FAS3240A, FAS3240, FAS3210A, FAS3210, FAS6080A, FAS6080, FAS6070A, FAS6070, FAS6040A, FAS6040, FAS6030A, FAS6030, FAS3170A, FAS3170, FAS3160A, FAS3160, FAS3140A, FAS3140, FAS3070A, FAS3070, FAS3040, FAS3040A, FAS2240A, FAS2240 FAS2040A, FAS2040, V6280, V6280A, V6240, V6240A, V6210, V6210A, V3270A, V3270, V3240A, V3240, V3210A, V3210, V6080A, V6080, V6070A, V6070, V6040A, V6040, V6030A, V6030, V3170A, V3170, V3160A, V3160, V3140A, V3140, V3070A, V3070, V3040, V3040A |
| Alternate NetApp Part Numbers | DS4243-1505-12S-PB-R5-C DS4243-1505-12S-PBR-R5-C DS4243-1505-12S-QS-R5 DS4243-1505-12S-R5-C DISK SHELF, 12x 450GB, 15K, 3Gb SAS, IOM3, PB, -C, R5 DISK SHELF, 12x 450GB, 15K, 3Gb SAS, IOM3, PBR, -C, R5 DISK SHELF, 12x 450GB, 15K, 3Gb SAS, IOM3, QS, R5 DISK SHELF, 12x 450GB, 15K, 3Gb SAS, IOM3, -C, R5 |
| Size, Weight, Acoustic, Power - DS4243 | ||||||||||||
| Associated Part No. | Configuration | Rack Units | Weight | Sound Power | Sound Pressure | Line Voltage Actual (Min to Max) | Amps Typical | Amps Worst | Watts Typical | Watts Worst | BTU/Hr Typical | BTU/Hr Worst |
| Quickship Half Populated | ||||||||||||
| DS4243-0706-12A-QS-R5 | 12x500GB 7.2K SATA | 4 | 66.3 lb (30.1 kg) | 100 (100 to 120) | 1.83 | 2.74 | 179 | 268 | 611 | 915 | ||
| DS4243-0706-12A-QS-R5 | 12x500GB 7.2K SATA | 4 | 66.3 lb (30.1 kg) | 200 (200 to 240) | .90 | 1.35 | 176 | 263 | 601 | 898 | ||
| DS4243-0712-12A-QS-R5 | 12x1.0TB 7.2K SATA | 4 | 66.3 lb (30.1 kg) | 100 (100 to 120) | 1.83 | 2.74 | 179 | 268 | 611 | 915 | ||
| DS4243-0712-12A-QS-R5 | 12x1.0TB 7.2K SATA | 4 | 66.3 lb (30.1 kg) | 200 (200 to 240) | .90 | 1.35 | 176 | 263 | 601 | 898 | ||
| DS4243-0724-12A-QS-R5 | 12x2.0TB 7.2K SATA | 4 | 66.3 lb (30.1 kg) | 100 (100 to 120) | 1.83 | 2.74 | 179 | 268 | 611 | 915 | ||
| DS4243-0724-12A-QS-R5 | 12x2.0TB 7.2K SATA | 4 | 66.3 lb (30.1 kg) | 200 (200 to 240) | .90 | 1.35 | 176 | 263 | 601 | 898 | ||
| DS4243-0736-12A-QS-R5 | 12x3.0TB 7.2K SATA | 4 | 62.6 lb (28.4 kg) | 6.9 Bels | 50 dBA | 100 (100 to 120) | 2.10 | 3.00 | 205 | 294 | 700 | 1004 |
| DS4243-0736-12A-QS-R5 | 12x3.0TB 7.2K SATA | 4 | 62.6 lb (28.4 kg) | 6.9 Bels | 50 dBA | 200 (200 to 240) | 1.03 | 1.48 | 201 | 289 | 686 | 987 |
| DS4243-1504-12S-QS-R5 | 12x300GB 15K SAS | 4 | 75.0 lb (34.0 kg) | 6.9 Bels | 50 dBA | 100 (100 to 120) | 2.73 | 2.95 | 269 | 290 | 917 | 989 |
| DS4243-1504-12S-QS-R5 | 12x300GB 15K SAS | 4 | 75.0 lb (34.0 kg) | 6.9 Bels | 50 dBA | 200 (200 to 240) | 1.31 | 1.44 | 254 | 282 | 866 | 962 |
| DS4243-1505-12S-QS-R5 | 12x450GB 15K SAS | 4 | 75.0 lb (34.0 kg) | 6.9 Bels | 50 dBA | 100 (100 to 120) | 3.29 | 3.54 | 324 | 349 | 1105 | 1190 |
| DS4243-1505-12S-QS-R5 | 12x450GB 15K SAS | 4 | 75.0 lb (34.0 kg) | 6.9 Bels | 50 dBA | 200 (200 to 240) | 1.56 | 1.72 | 306 | 339 | 1043 | 1156 |
| DS4243-1507-12S-QS-R5 | 12x600GB 15K SAS | 4 | 75.0 lb (34.0 kg) | 6.9 Bels | 50 dBA | 100 (100 to 120) | 3.70 | 3.95 | 364 | 392 | 1241 | 1337 |
| DS4243-1507-12S-QS-R5 | 12x600GB 15K SAS | 4 | 75.0 lb (34.0 kg) | 6.9 Bels | 50 dBA | 200 (200 to 240) | 1.75 | 1.94 | 344 | 381 | 1173 | 1299 |
| DS4243-SL006-6A-QS-R5 | 6x100GB,SSD | 4 | 68.6 lb (31.1 kg) | 6.6 Bels | 100 (100 to 120) | 2.13 | 2.13 | 208 | 208 | 710 | 710 | |
| DS4243-SL006-6A-QS-R5 | 6x100GB,SSD | 4 | 68.6 lb (31.1 kg) | 6.6 Bels | 200 (200 to 240) | 1.27 | 1.28 | 204 | 204 | 697 | 697 | |
| DS4243-SL01-12A-QS-R5 | 12x100GB,SSD | 4 | 76.5 lb (34.7 kg) | 6.6 Bels | 100 (100 to 120) | 1.63 | 1.96 | 163 | 196 | 557 | 669 | |
| DS4243-SL01-12A-QS-R5 | 12x100GB,SSD | 4 | 76.5 lb (34.7 kg) | 6.6 Bels | 200 (200 to 240) | .90 | 1.00 | 180 | 200 | 615 | 683 | |
| DS4243-SL01-12A-QS-R5 | 12x100GB,SSD | 4 | 76.5 lb (34.7 kg) | 6.6 Bels | 215 (200 to 240) | .84 | .95 | 180 | 205 | 615 | 700 | |
| Quickship Fully Populated | ||||||||||||
| DS4243-0712-24A-QS-R5 | 24x500GB 7.2K SATA | 4 | 101.3 lb (45.9 kg) | 100 (100 to 120) | 2.58 | 3.47 | 252 | 340 | 861 | 1161 | ||
| DS4243-0712-24A-QS-R5 | 24x500GB 7.2K SATA | 4 | 101.3 lb (45.9 kg) | 200 (200 to 240) | 1.27 | 1.71 | 247 | 334 | 843 | 1140 | ||
| DS4243-0724-24A-QS-R5 | 24x1.0TB 7.2K SATA | 4 | 110.0 lb (49.9 kg) | 6.6 Bels | 100 (100 to 120) | 4.42 | 4.41 | 438 | 439 | 1495 | 1499 | |
| DS4243-0724-24A-QS-R5 | 24x1.0TB 7.2K SATA | 4 | 110.0 lb (49.9 kg) | 6.6 Bels | 200 (200 to 240) | 2.27 | 2.21 | 424 | 429 | 1448 | 1465 | |
| DS4243-0724-24A-QS-R5 | 24x1.0TB 7.2K SATA | 4 | 110.0 lb (49.9 kg) | 6.6 Bels | 215 (200 to 240) | 2.10 | 1.90 | 452 | 409 | 1542 | 1395 | |
| DS4243-0748-24A-QS-R5 | 24x2.0TB 7.2K SATA | 4 | 101.0 lb (45.8 kg) | 6.6 Bels | 100 (100 to 120) | 4.62 | 4.72 | 458 | 469 | 1561 | 1599 | |
| DS4243-0748-24A-QS-R5 | 24x2.0TB 7.2K SATA | 4 | 101.0 lb (45.8 kg) | 6.6 Bels | 200 (200 to 240) | 2.42 | 2.42 | 456 | 470 | 1554 | 1602 | |
| DS4243-0772-24A-QS-R5 | 24x3.0TB 7.2K SATA | 4 | 99.2 lb (45.0 kg) | 6.6 Bels | 100 (100 to 120) | 4.60 | 4.95 | 456 | 495 | 1557 | 1690 | |
| DS4243-0772-24A-QS-R5 | 24x3.0TB 7.2K SATA | 4 | 99.2 lb (45.0 kg) | 6.6 Bels | 200 (200 to 240) | 2.38 | 2.50 | 448 | 483 | 1529 | 1649 | |
| DS4243-1507-24S-QS-R5 | 24x300GB 15K SAS | 4 | 110.0 lb (49.9 kg) | 7.0 Bels | 100 (100 to 120) | 6.00 | 5.50 | 600 | 550 | 2048 | 1878 | |
| DS4243-1507-24S-QS-R5 | 24x300GB 15K SAS | 4 | 110.0 lb (49.9 kg) | 7.0 Bels | 200 (200 to 240) | 3.00 | 2.80 | 600 | 560 | 2048 | 1912 | |
| DS4243-1507-24S-QS-R5 | 24x300GB 15K SAS | 4 | 110.0 lb (49.9 kg) | 7.0 Bels | 215 (200 to 240) | 2.80 | 2.60 | 602 | 559 | 2055 | 1908 | |
| DS4243-1511-24S-QS-R5 | 24x450GB 15K SAS | 4 | 110.0 lb (49.9 kg) | 7.0 Bels | 100 (100 to 120) | 6.30 | 6.00 | 630 | 600 | 2150 | 2047 | |
| DS4243-1511-24S-QS-R5 | 24x450GB 15K SAS | 4 | 110.0 lb (49.9 kg) | 7.0 Bels | 200 (200 to 240) | 3.20 | 3.00 | 640 | 600 | 2184 | 2047 | |
| DS4243-1511-24S-QS-R5 | 24x450GB 15K SAS | 4 | 110.0 lb (49.9 kg) | 7.0 Bels | 215 (200 to 240) | 3.00 | 2.80 | 645 | 602 | 2201 | 2054 | |
| DS4243-1514-24N-QS-R5 | 24x600GB 15K NSE | 4 | 110.0 lb (49.9 kg) | 7.0 Bels | 100 (100 to 120) | 5.71 | 5.98 | 567 | 595 | 1833 | 2028 | |
| DS4243-1514-24N-QS-R5 | 24x600GB 15K NSE | 4 | 110.0 lb (49.9 kg) | 7.0 Bels | 200 (200 to 240) | 2.87 | 2.99 | 547 | 584 | 1865 | 1991 | |
| DS4243-1514-24S-QS-R5 | 24x600GB 15K SAS | 4 | 110.0 lb (49.9 kg) | 7.0 Bels | 100 (100 to 120) | 5.71 | 5.98 | 567 | 595 | 1833 | 2028 | |
| DS4243-1514-24S-QS-R5 | 24x600GB 15K SAS | 4 | 110.0 lb (49.9 kg) | 7.0 Bels | 200 (200 to 240) | 2.87 | 2.99 | 547 | 584 | 1865 | 1991 | |
Category: 100-500, 4u, drive-capacity-450gb, drive-count-24, ds4243, interface-type-nl-sas, lff, netapp
