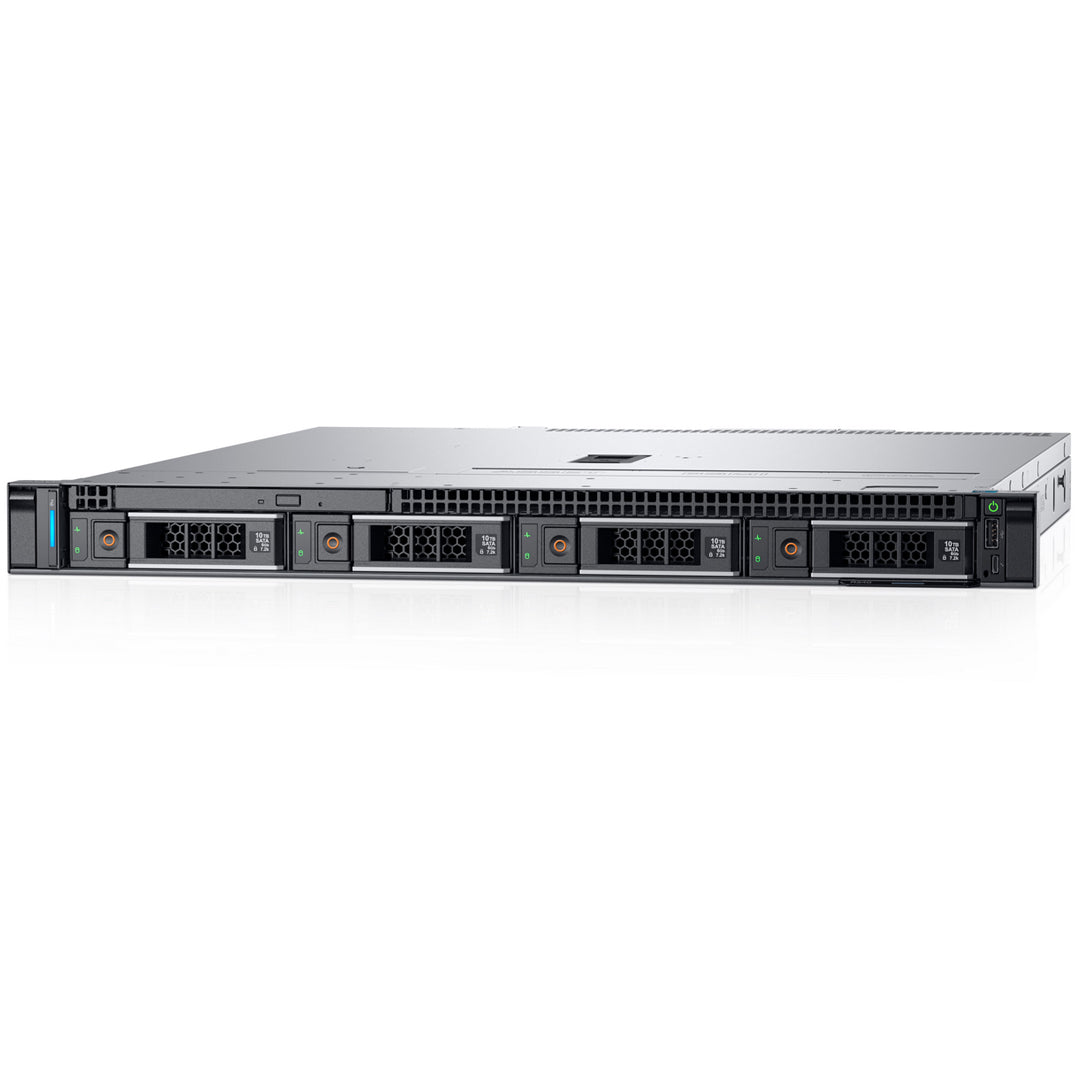

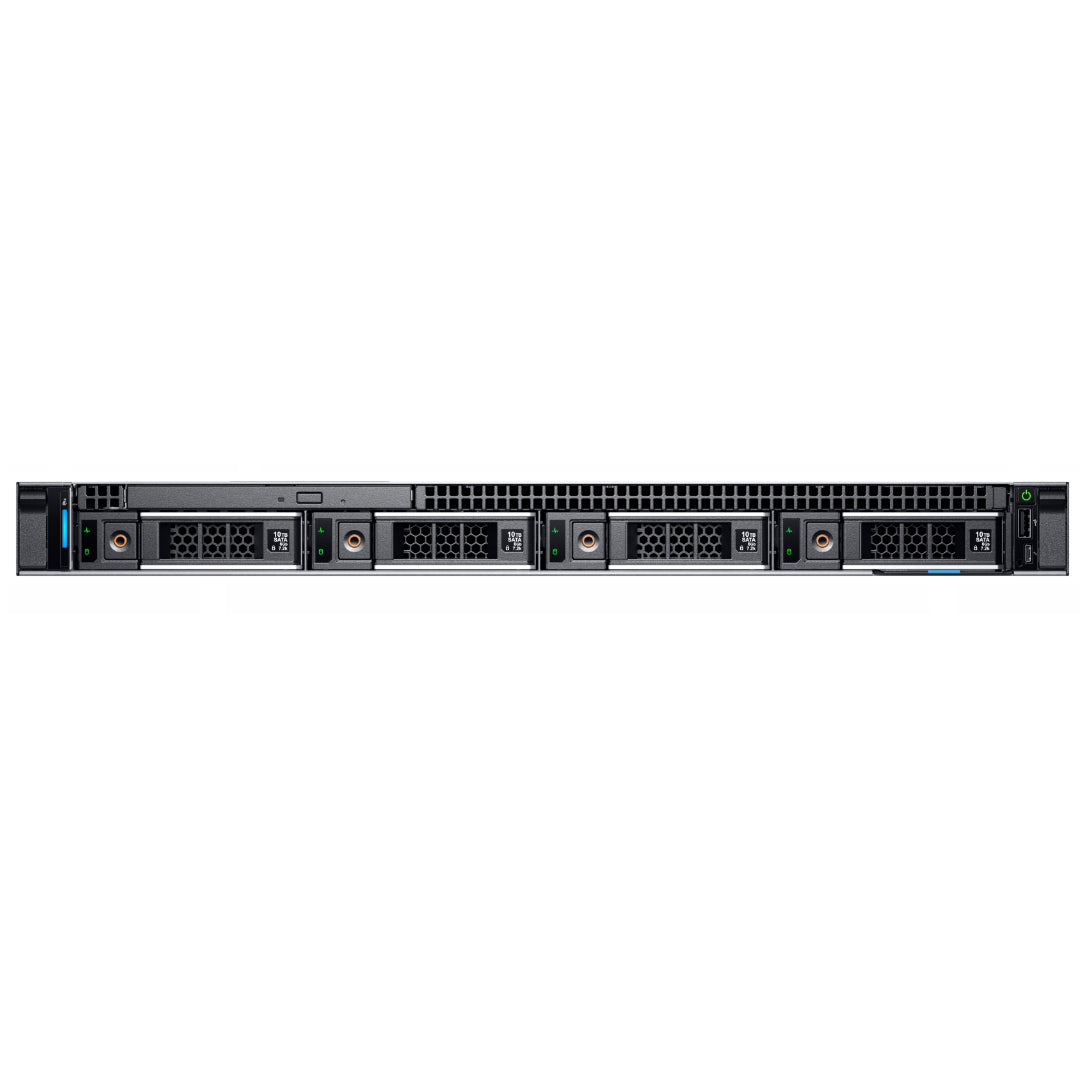

Dell PowerEdge R240 Rack Server Chassis Hot-Swap Drives (4x3.5")

Dell Poweredge R240 Rack Server Chassis Hot-Swap Drives (4X3.5") | 1W50H

Price: $460.00

Brand:

Dell

MPN:

1W50H

Type:

Chassis

Condition:

ECS Refurbished & Tested

Warranty:

ECS 1 Year Hardware Warranty

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Dell Poweredge R240 Rack Server Chassis Hot-Swap Drives (4X3.5") | 1W50H

Quick Specs

Form Factor:

1U rack server

Processor | Max: 8 Cores

1 x Intel Xeon E-2200

Memory | Max: 64TB

4 DDR4 UDIMM 2666Mhz

Storage | Max: N/A

4 LFF SAS/SATA (HDD/SSD)

Storage Controllers:

S140 (SW RAID)
H330, H730p, HBA330, 12Gbps SAS HBA

Boot Options:

BOSS
IDSDM (Micro SD)
USB

PCIe Slots:

2x PCIe 3.0
One x8 slot low-profile, half-length with x4 slot width
One x16 slot low-profile/full-height, half-length with x8 bandwith

Remote Management:

iDRAC9 with Lifecycle Controller and vFlash

Other Versions:

The Dell EMC PowerEdge R240 is an affordable single-socket 1U rack server designed for small businesses and service providers.

PowerEdge R240

Improved performance due to 100% more cores
Scale with 17% more storage capacity
Protect your server from malicious malware with iDRAC9 Enterprise Server Lockdown mode

Designed for budget-conscious businesses

The Dell EMC PowerEdge R240 designed for dense environments is the ideal solution for budget-conscious businesses. The Dell EMC PowerEdge R240 offers features to support your demanding and growing business needs.

Accelerate your business with improved performance due to 100% more cores with Intel Xeon E-2200 processors, 11% increase in memory speed, and 20% more PCIe lanes.1
Harness data growth with up to 4 x 3.5” cabled hard drives.
Manage operational costs with Multi-Vector cooling which automatically calculates and delivers the proper airflow needed for optimal cooling.

Simple to install, manage and deploy

The Dell OpenManage portfolio offers innovations that simplifies management tasks, making IT operations efficient and cost-effective throughout the server lifecycle.

The embedded iDRAC9 with Lifecycle Controller, server deployment, configuration and updates are fast and worry-free.
Access your servers anywhere, anytime from your mobile device with OpenManage Mobile (requires OpenManage Enterprise).
Resolve issues with up to 72% less IT effort using automated proactive and predictive technology from ProSupport Plus and SupportAssist.

Keep your data safe

Every PowerEdge server is made with a cyber-resilient architecture, building security into the server’s entire life cycle.
Dell EMC is laser-focused on security (from design to end-of-life) to ensure trust and deliver worry-free, secure servers.

Keep your data safe with software RAID.
Maintain data safety with cryptographically-signed firmware packages and Secure Boot.
Protect your server from malicious malware with iDRAC9 Server Lockdown mode (requires iDRAC Enterprise and Datacenter license).
Wipe all data from storage media quickly and securely with System Erase.

PCIe Expansion Slots

PCIe Slot	Riser	PCIe Slot Height	PCIe Slot Lenght	Slot Width
Slot 1	x8 PCIe	Low-Profile	Half-Height	x8
Slot 2	x16 PCIe	Low-Profile/Full-Height	Half-Length	x16

Image of the PCIe ButterFly Riser for the Dell R240 Rack Server

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Manuals

Base Standard Capabilities

Feature	Technical Specification
Processor	1 processor from the following: Intel® Xeon® E-2200 product family, Intel Pentium®, Intel Core i3®, Intel Celeron®
Memory	4 x DDR4 DIMM slots, Supports UDIMM, up to 2666MT/s, 64GB Max. Supports registered ECC
Storage controllers	Internal controllers: PERC H730P, H330, HBA330 Software RAID: PERC S140 External controllers: 12Gbps SAS HBA
Internal boot	Boot Optimized Storage Subsystem (BOSS): 2 x M.2 240GB (RAID 1 or No RAID) or 1 x M.2 240GB (No RAID only) Internal Dual SD Module3: 2x microSD (16GB, 32GB or 64GB) or 1x microSD (16GB, 32GB or 64GB)
Drive bays	Front bays: Up to 4 x 3.5 cabled SATA, SAS (optional) or SSD Up to 4 x 3.5 or 2.5 hot-plug SATA, SAS (optional) or SSD
Power supplies	Single 250W (Bronze) 450W (Platinum) power supply
Fans	Standard/High Performance/Very High Performance Hot Plug Fans
Dimensions	Form factor: Rack (1U) Chassis width: 434.00mm (17.08 in) Chassis depth: 573.596mm (22.58 in) (3.5” HDD config) Note: These dimensions do not include: bezel, redundant PSU Chassis weight: 12.2 kg (26.89 lb.)
Embedded management	iDRAC9 iDRAC Direct
Bezel	Optional security bezel
OpenManage™ Software	OpenManage Enterprise OpenManage Power Manager OpenManage Mobile
Integrations & Connections	Integrations: BMC Truesight Microsoft System Center Red Hat Ansible Modules VMware® vCenter™	Connections: IBM Tivoli Netcool/OMNIbus Micro Focus Operations Manager Nagios Core Nagios XI
Tools	iDRAC Service Module iDRAC RESTful API with Redfish OpenManage Server Administrator Dell EMC Repository Manager Dell EMC System Update	Dell EMC Server Update Utility Dell EMC Update Catalogs Dell EMC RACADM CLI IPMI Tool
Security	TPM 1.2/2.0 optional Cryptographically signed firmware Silicon Root of Trust	Secure Boot System Lockdown (requires iDRAC Enterprise or Datacenter) System Erase
I/O & Ports	Networking Options: 2 x 1GbE LOM Network Interface Controller (NIC) ports Front ports: 1x USB 2.0, 1 x IDRAC micro USB 2.0 management port Rear ports: 2 x USB 3.0, VGA, serial connector	2 x PCIe Gen 3.0 slots: One x8 slot low-profile, half-length with x4 slot width One x16 slot low-profile/full-height, half-length with x8 bandwith
Supported operating systems	Citrix® XenServer® Microsoft® Windows Server® with Hyper-V (2016 and 2019) Red Hat® Enterprise Linux Ubuntu® Server LTS	SUSE® Linux Enterprise Server VMware® ESXi

Spec Sheet 4

Feature	PowerEdge R240	PowerEdge R230
Processor	● Intel Xeon® E-2100 and E-2200 Processor family ● Intel Pentium® ● Intel Celeron® ● Intel Core i3®	● Intel Xeon® E3-1200 v6 Processor family ● Intel Pentium® ● Intel Celeron® ● Intel Core i3®
Number or cores	Up to 8 cores	Up to 4 cores
L2/L3 cache	● 2.0 MB per core ● 8 MB or 12 MB	● 2.0 MB per core ● 4 MB or 8 MB
Chipset	Intel C246	Intel C236
Memory Module	● DDR4: 4 x UDIMMs with ECC ● Speed: Up to 2666MT/s ● Min RAM: 8GB ● Max RAM: 64 GB	● DDR4: 4 x UDIMMs with ECC ● Speed: Up to 2400MT/s ● Min RAM: 4 GB ● Max RAM: 64 GB
Hard drive bays	● 2 x 3.5-inch cabled ● 4 x 3.5-inch cabled ● 4 x 3.5-inch or 2.5-inch hot plug	● 2 x 3.5-inch cabled ● 4 x 3.5-inch cabled ● 4 x 3.5-inch or 2.5-inch hot plug
Hard drive types	● Default SATA. Optional SAS ● Enterprise HDD ● Entry HDD	● Default SATA. Optional SAS ● Enterprise HDD ● Entry HDD
External hard drive bays	1x slim ODD 9.5mm	1x slim ODD 9.5mm
RAID Controller	● Chipset based SATA, PERC S140 ● PERC H330 ● PERC H730P	● Chipset based SATA, PERC S130 ● PERC H330 ● PERC H730 ● PERC H830
Host Bus Adapter (HBA)	● 12Gb SAS Exernal HBA ● HBA330 Internal adapter	12Gb SAS External HBA
Boot optimized storage subsytem	● 2x M.2 240GB (RAID 1 or No RAID) ● 1x M.2 240GB (No RAID only)	Not supported
Server management	● BMC ● IPMI 2.0 compliant; Full Open Manage suite ● Optional iDRAC9 Express ● Optional iDRAC9 Enterprise ● Vflash	● BMC ● IPMI 2.0 compliant; Full Open Manage suite ● Optional iDRAC8 Express ● Optional iDRAC8 Enterprise ● Vflash
I/O slots	● 1 x16 slot PCIe Gen3 for HL/FH from CPU1(x8 lanes) ● 1 x 8 slot PCIe Gen3 for LP from CPU1(x4 lanes)	● 1 x16 slot PCIe Gen3 for HL/FH from CPU1(x8 lanes) ● 1 x 8 slot PCIe Gen3 for LP from CPU1(x4 lanes)
NIC/LOM	2x GbE LOM	2x GbE LOM
USB	● 2 rear USB 3.0 ● 2 front USB 2.0 ● 1 internal USB 3.0	● 2 rear USB 3.0 ● 1 front USB 2.0 ● 1 internal USB 3.0
Power supplies	● 250W AC 1U cable (Bronze) ● 450W AC 1U cable (Platinum)	250W AC 1U cable (Bronze)
Fans	3 or 4 non-redundant, non-hot swappable fans	3 or 4 non-redundant, non-hot swappable fans
Form factor	1U	1U
Dimensions (HxWxD)	● 42.8 x 434.0 x 596 (mm) (w/o bezel) ● 1.67” x 17.09” x 23.5”(in)	● 42.8 x 434.0 x 551 (mm) (w/o bezel) ● 1.67” x 17.09” x 26.2”(in)
Weight	Max 26.89 lb/12.2 Kg	Max 20.96 lb/10.6 Kg
